62

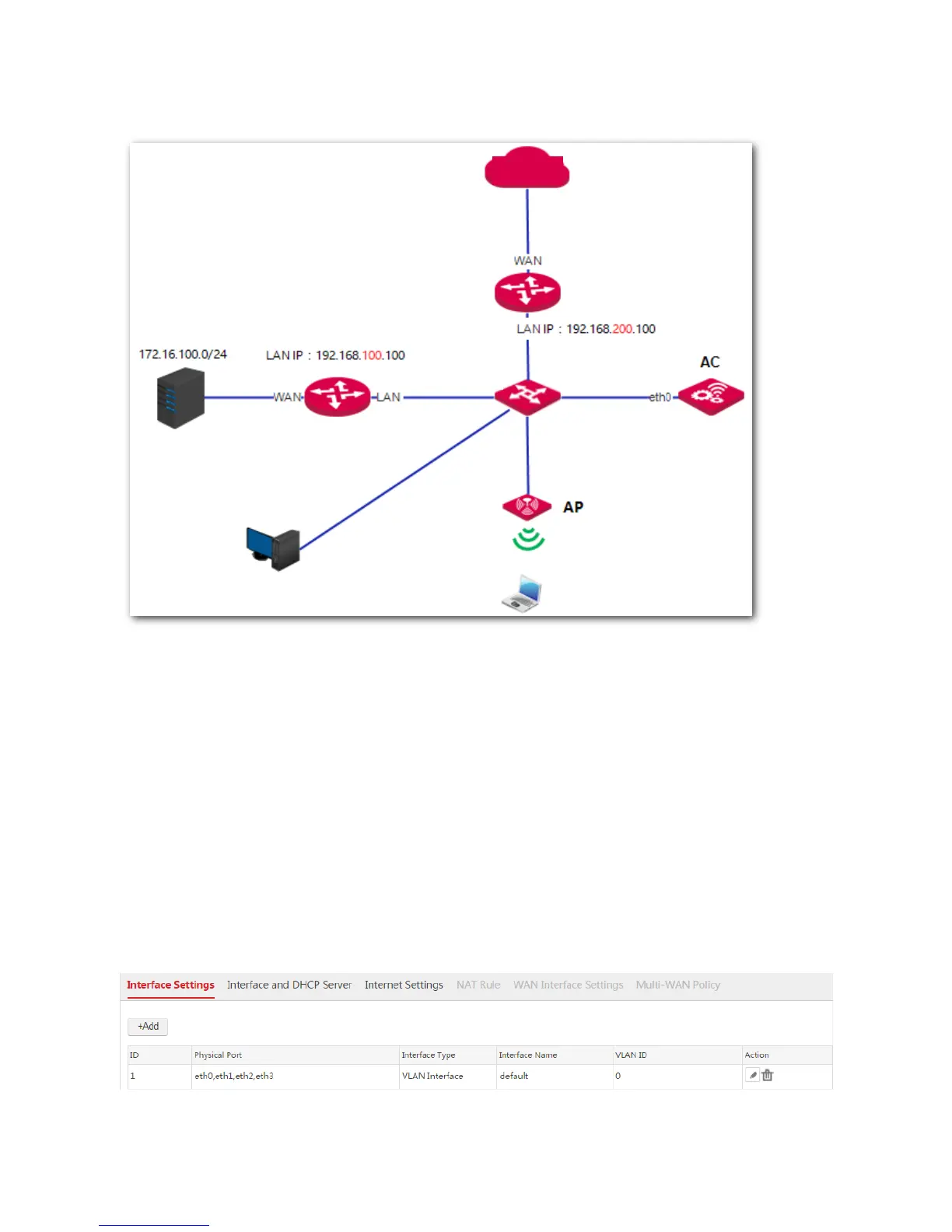

Network Topology
Procedure
I. Configure AC
Procedure:
Step 1: Configure VLAN Interface
Configure the VLAN interface on the Network Setting > Network Setting > Interface Settings page.
According to the networking requirement, the VLAN interface of the AC used to communicate with the
APs and routers does not need to configure VLAN ID. So we can use the default VLAN interface.
Administrator
User
Internal Server
Router1
Router2
Switch
Internet
