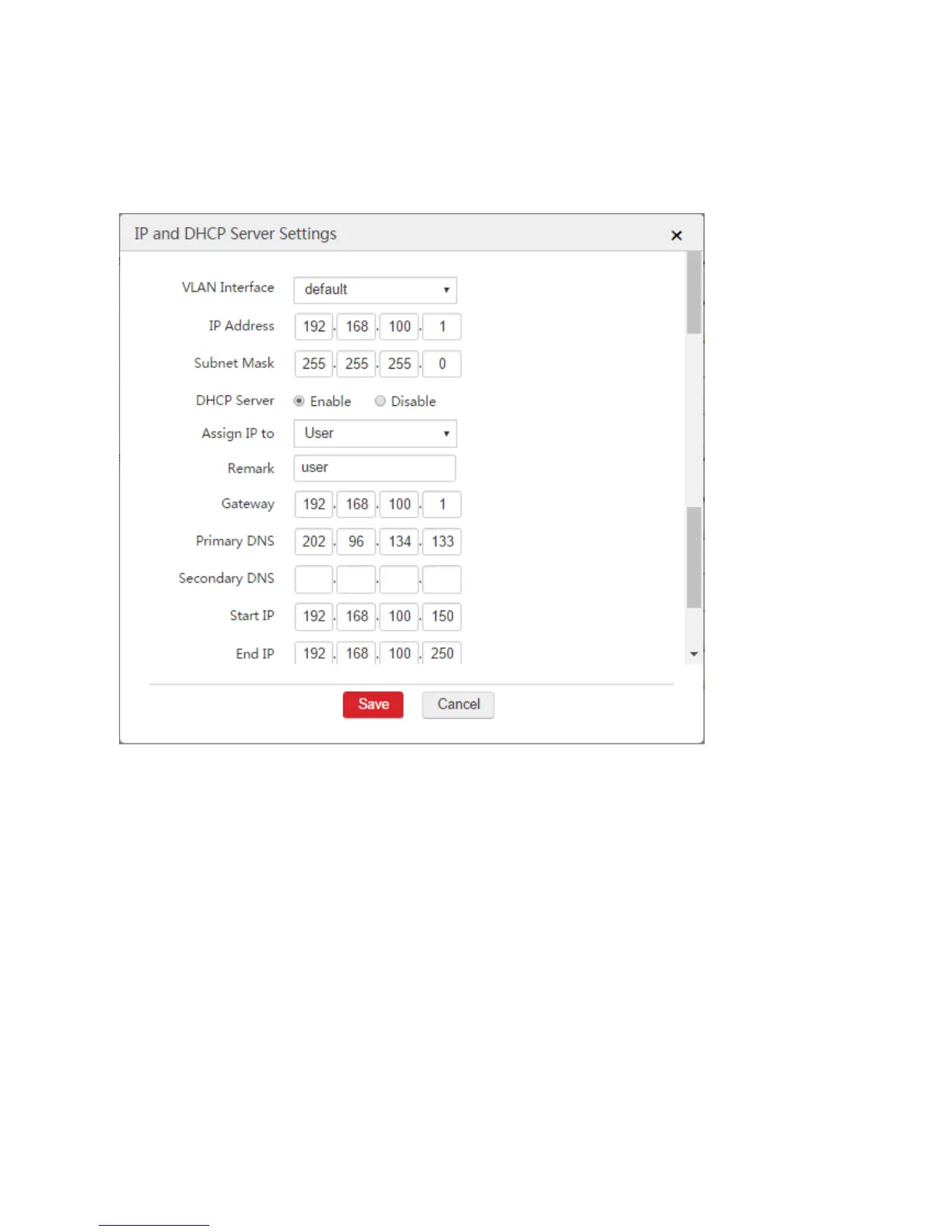

Start IP: Set a start IP address of the DHCP address pool, such as "192.168.100.150".
End IP: Set an end IP address of the DHCP address pool, such as "192.168.100.250".
3) Click Save.
Tip: Assume that the primary DNS address is 202.96.134.133.
Step 5: Configure IP Routing
1. Choose Network Setting > IP Routing.
2. Click Add.
3. Configure the parameters in the window.
Remark: Set a description for the route, such as "Internal".
Destination Network: Enter the network segment of the internal server, which is "172.16.100.0" in
this example.
Subnet Mask: Enter the subnet mask of the internal server, which is "255.255.255.0" in this example.
Next Hop: Enter the IP address of the next network node to which the packet is to be sent on the way
to the internal server. In this example, it is the LAN IP address of Router1: 192.168.100.100.
Interface: Enter the used interface when the AC accesses the internal server, which is "default" in
this example.
