75

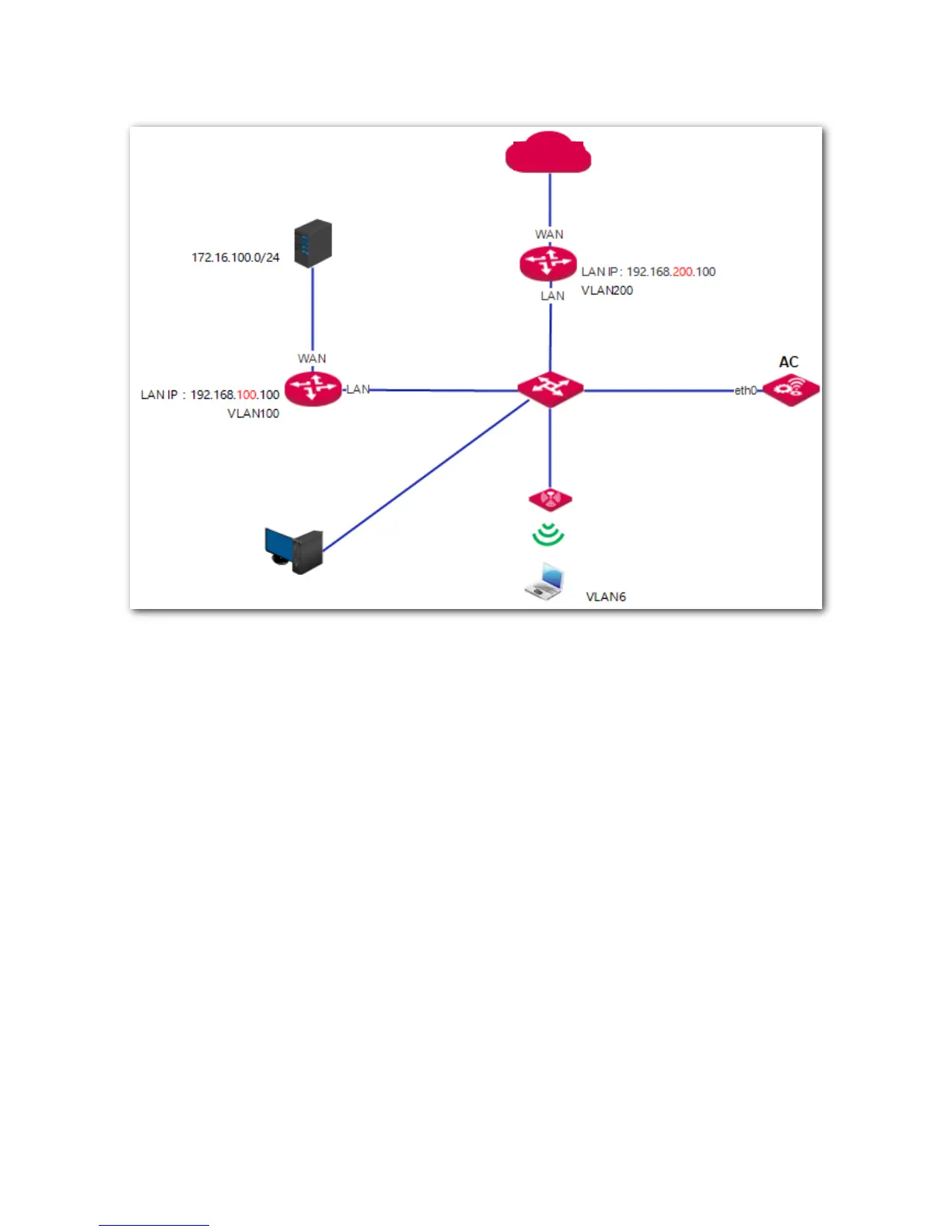

Network Topology
Procedure
I. Manage AP
Step 1: Modify Management VLAN of AP
1. Choose AP Management > Modify AP.
2. Select the APs to be managed and click Advanced Setting.
3. Set the Management VLAN to 5.
4. Click Save.
Internet
Administrator
Internet Server
Router1
Switch
Router2
User
AP
Management VLAN: 5
SSID: VIP
