Appendix 3: Final Settings of the Switch

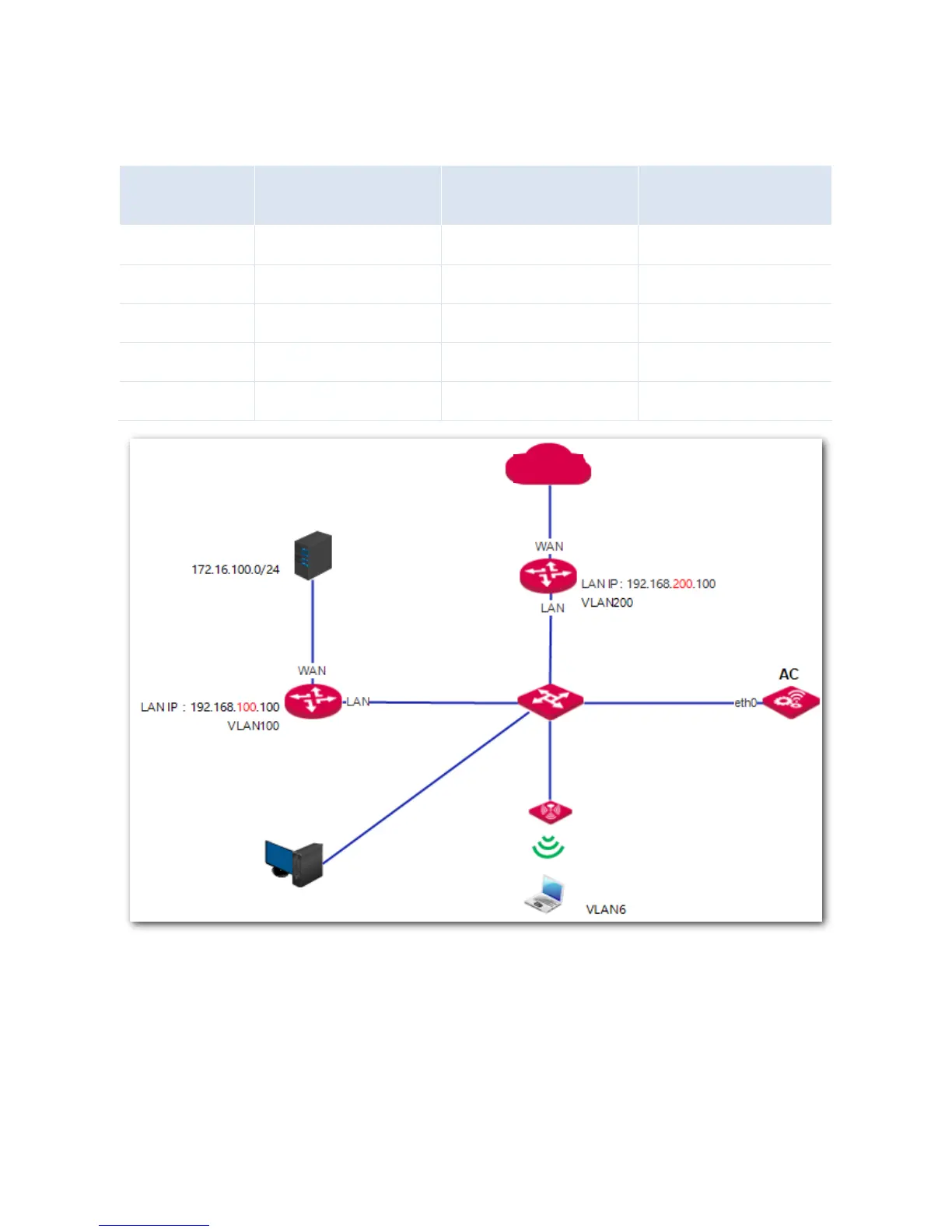

After all the configurations are complete, the final settings on the switch are shown as follows.
The port
connected to
VLAN ID
Port Type
PVID
Router1
100
Access
100
Router2
200
Access
200
administrator
1
Access
1
AP
1,5
Trunk
1
AC
1,5,100,200
Trunk
1
Internet
Administrator
Internet Server
Router1
Switch
Router2
User
AP
Management VLAN: 5
SSID: VIP
