PART 4: SETUP
4.1 CHOOSING A BATTERY
The MUTT® is a 12/24V DC device. Attempting to power
your MUTT®
with anything other than a 12 or 24 Volt DC
power source will destroy the internal circuitry and void your
warranty.
(Manufacturer’s Suggested Replacement: Group 31. MUTT® will auto detect 12 or 24
Volts. If 24 volts is required, two smaller 12 volt batteries can be used, but they must
be wired in series.)
• Battery Voltage: 12/24V DC
• Battery Type: Lead Acid
• Battery Compartment Dimensions:
13.5" L x 11" H x 9.25" D
• Battery Protection: Inline 30 amp Fuse for
Overcharge
• Battery must be clean and leak free.
• Identify battery polarity.
• Attach ring terminal (with red heat-shrink) to
positive (+) side and ring terminal (with black
heat-shrink) to negative (-) side. Also see
warning indicators on page 4. Connections
must only be made to clean terminal rings.
• Any loose or corroded connectors may cause
misdiagnosis or result in erroneous readings.
• Use well-charged battery.

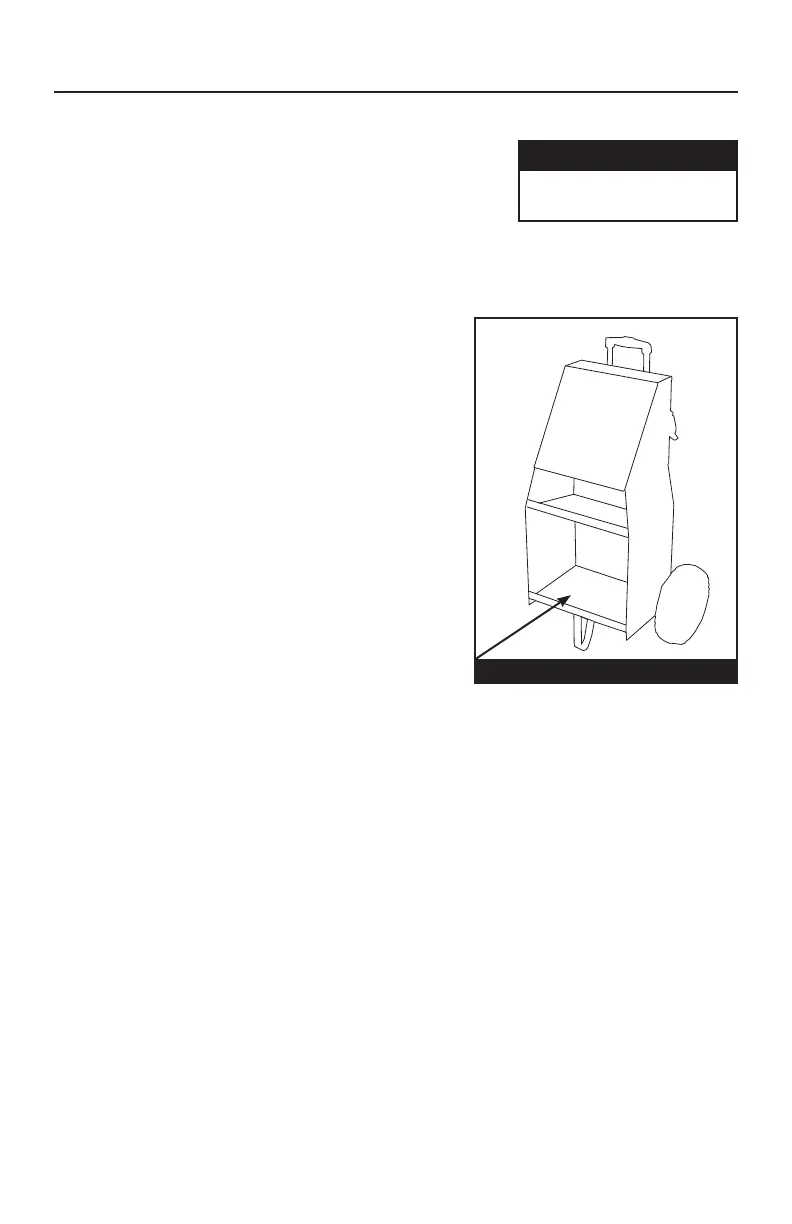

Battery Compartment
DC POWER
Do not plug directly into
AC wall outlet
