iPA SMART MUTT 9007M - 4.2 Axle and Wheel Installation

11
4.2 AXLE AND WHEEL INSTALLATION
• Insert axle (A) into left and right axle bores (B) at rear underside of the MUTT®.
• Slide one spacer (C) onto each side of the axle (A).
• Install one wheel (D) onto each side of the axle (A) with valve stem facing away
from the MUTT®.
• Insert one E-Clip (E) into the groove (F) in the axle end in front of the wheel to
each side.
• Check tire pressure. It must not exceed 8 PSI.
NOTE: Install the Foot at the bottom of the unit with 45° angle side towards the back
of the unit.
A
B
B
C
C
D
D
E
E
F
F

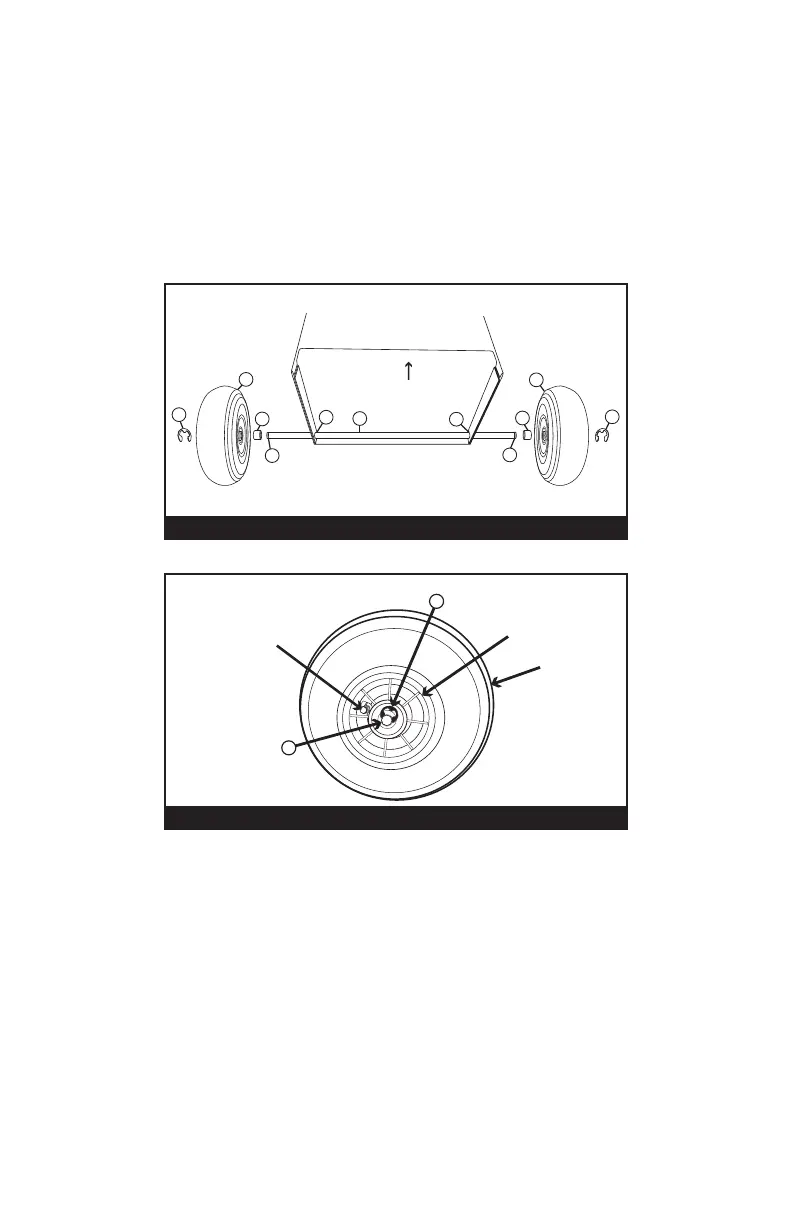

Axle and Wheel Installation
FRONT
(UNDERSIDE OF MUTT)
E
F
E-Clip Installation
WHEEL
TIRE
GROOVE
VALVE STEM
(PUSH ONTO AXLE)
