C HAPTER 5 | Interface Configuration
Trunk Configuration
– 152 –
ES-3052 Series
To configure the connection parameters for a dynamic trunk:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Trunk from the Step list.
3. Select Configure from the Action list.
4. Modify the required interface settings. (Refer to "Configuring by Port
List" on page 127 for a description of the parameters.)
5. Click Apply.

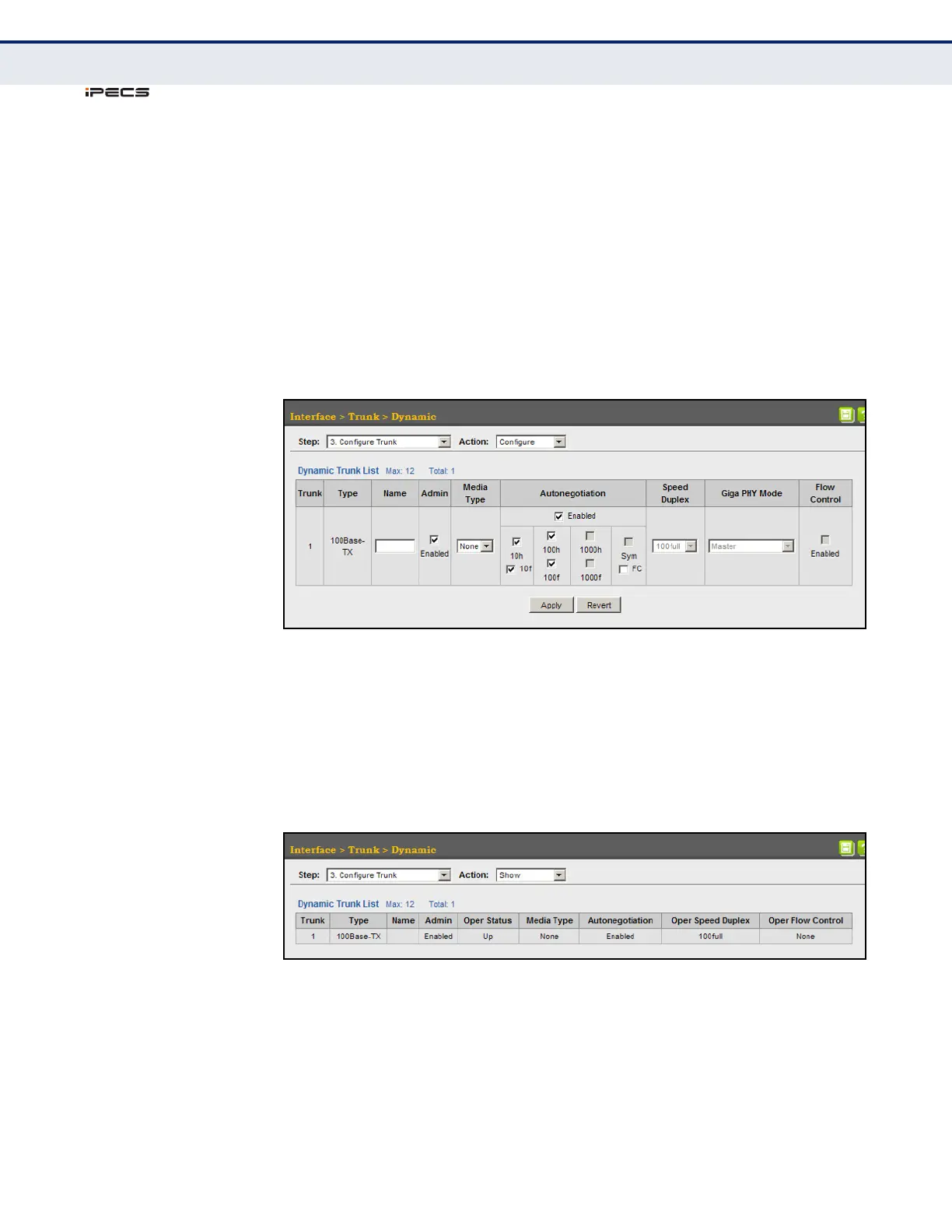

Figure 47: Configuring Connection Parameters for a Dynamic Trunk
To show the connection parameters for a dynamic trunk:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Trunk from the Step list.
3. Select Show from the Action list.
Figure 48: Showing Connection Parameters for Dynamic Trunks
