Configuring MAC Address Mirroring
– 203 –
cannot be set to the same target ports as that used for port mirroring
(see "Configuring Local Port Mirroring" on page 132).
◆ When traffic matches the rules for both port mirroring, and for
mirroring of VLAN traffic or packets based on a MAC address, the
matching packets will not be sent to target port specified for port
mirroring.
PARAMETERS
These parameters are displayed in the web interface:
◆ Source MAC – MAC address in the form of xx-xx-xx-xx-xx-xx or
xxxxxxxxxxxx.
◆ Target Port – The port that will mirror the traffic from the source port.
(Range: 1-52)
WEB INTERFACE
To mirror packets based on a MAC address:
1. Click MAC Address, Mirror.
2. Select Add from the Action list.
3. Specify the source MAC address and destination port.
4. Click Apply.

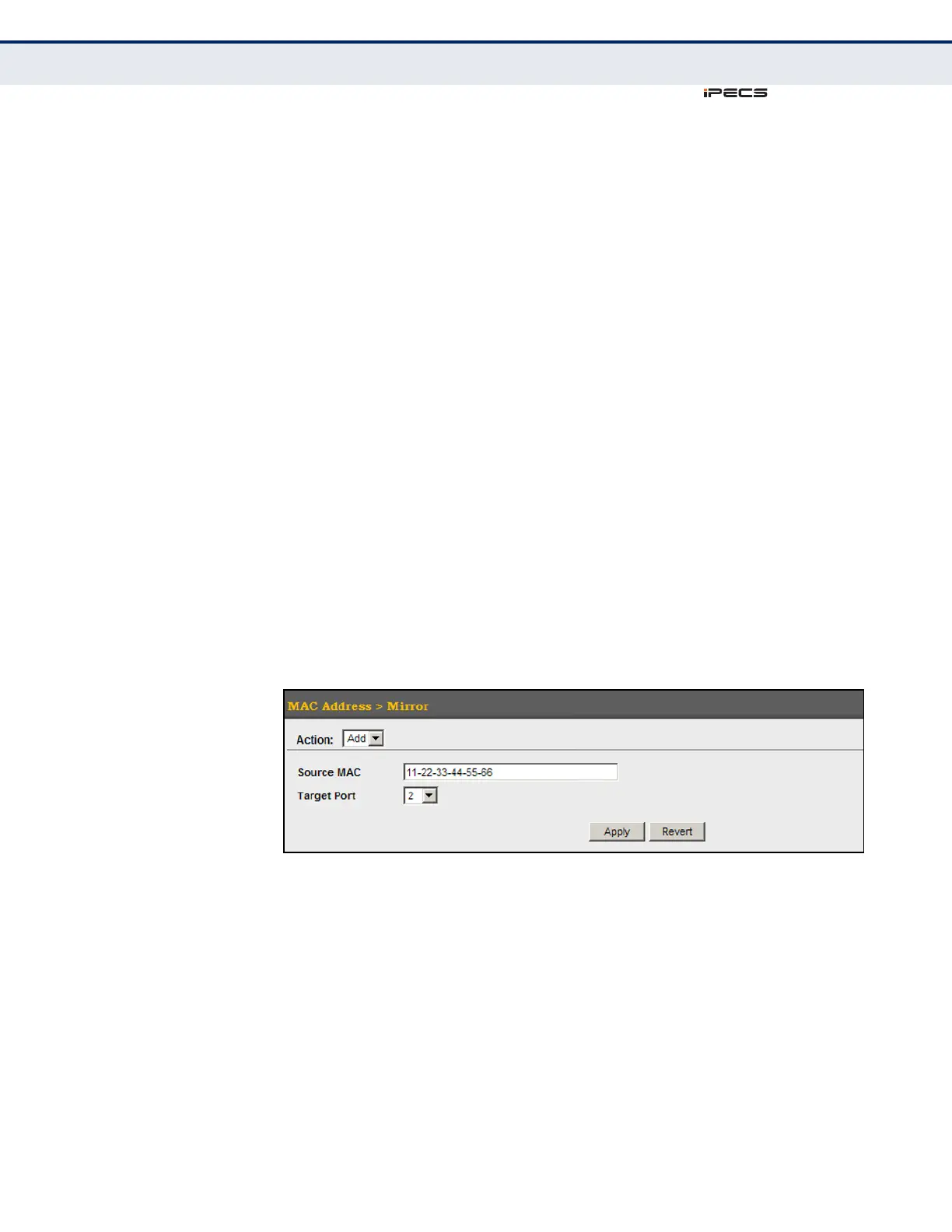

Figure 89: Mirroring Packets Based on the Source MAC Address
