C HAPTER 11 | Quality of Service
Creating QoS Policies
– 267 –
ES-3052 Series
WEB INTERFACE
To configure a policy map:
1. Click Traffic, DiffServ.
2. Select Configure Policy from the Step list.
3. Select Add from the Action list.
4. Enter a policy name.
5. Enter a description.
6. Click Add.

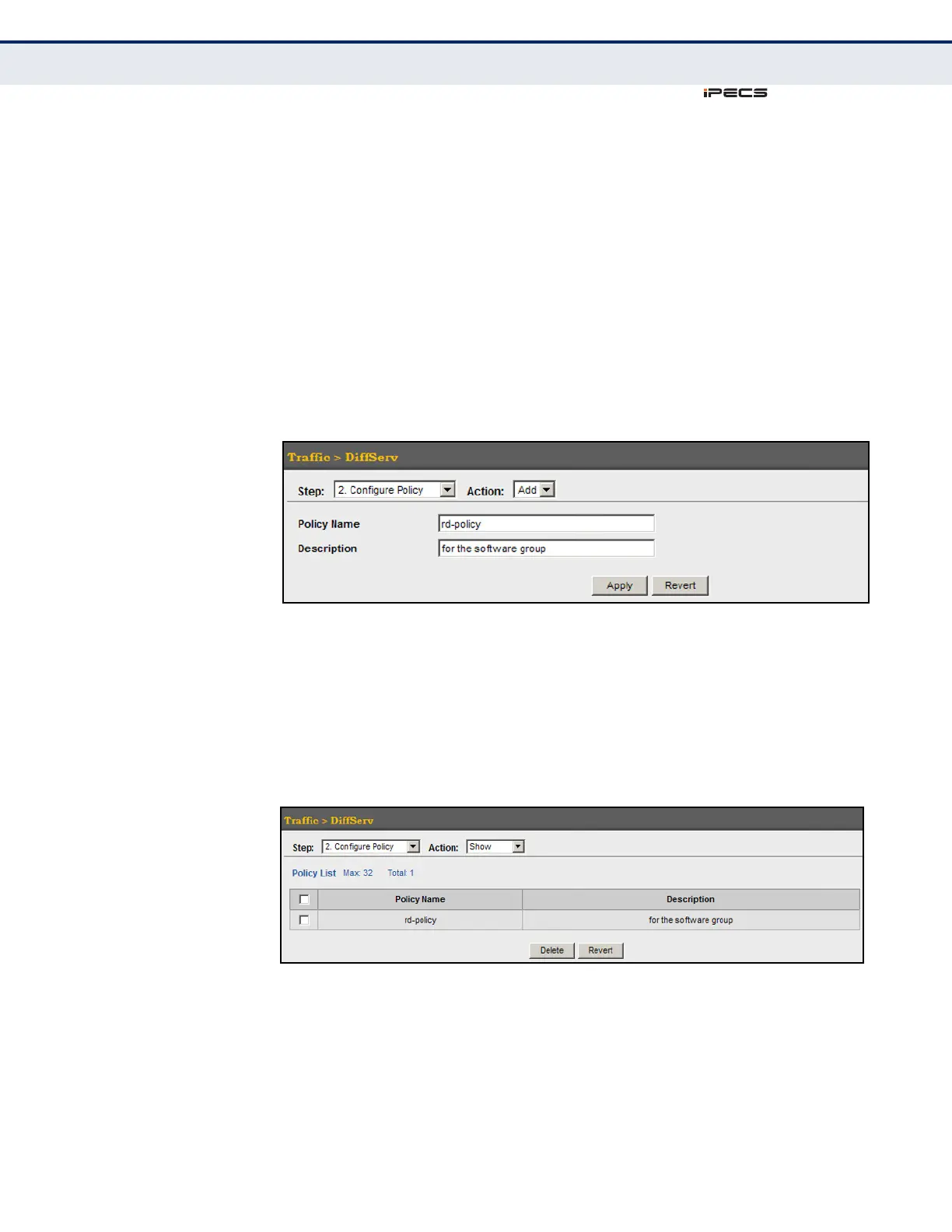

Figure 129: Configuring a Policy Map
To show the configured policy maps:
1. Click Traffic, DiffServ.
2. Select Configure Policy from the Step list.
3. Select Show from the Action list.
Figure 130: Showing Policy Maps
