iPower SUA6000ED - Control Panel Features

Page 11
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.

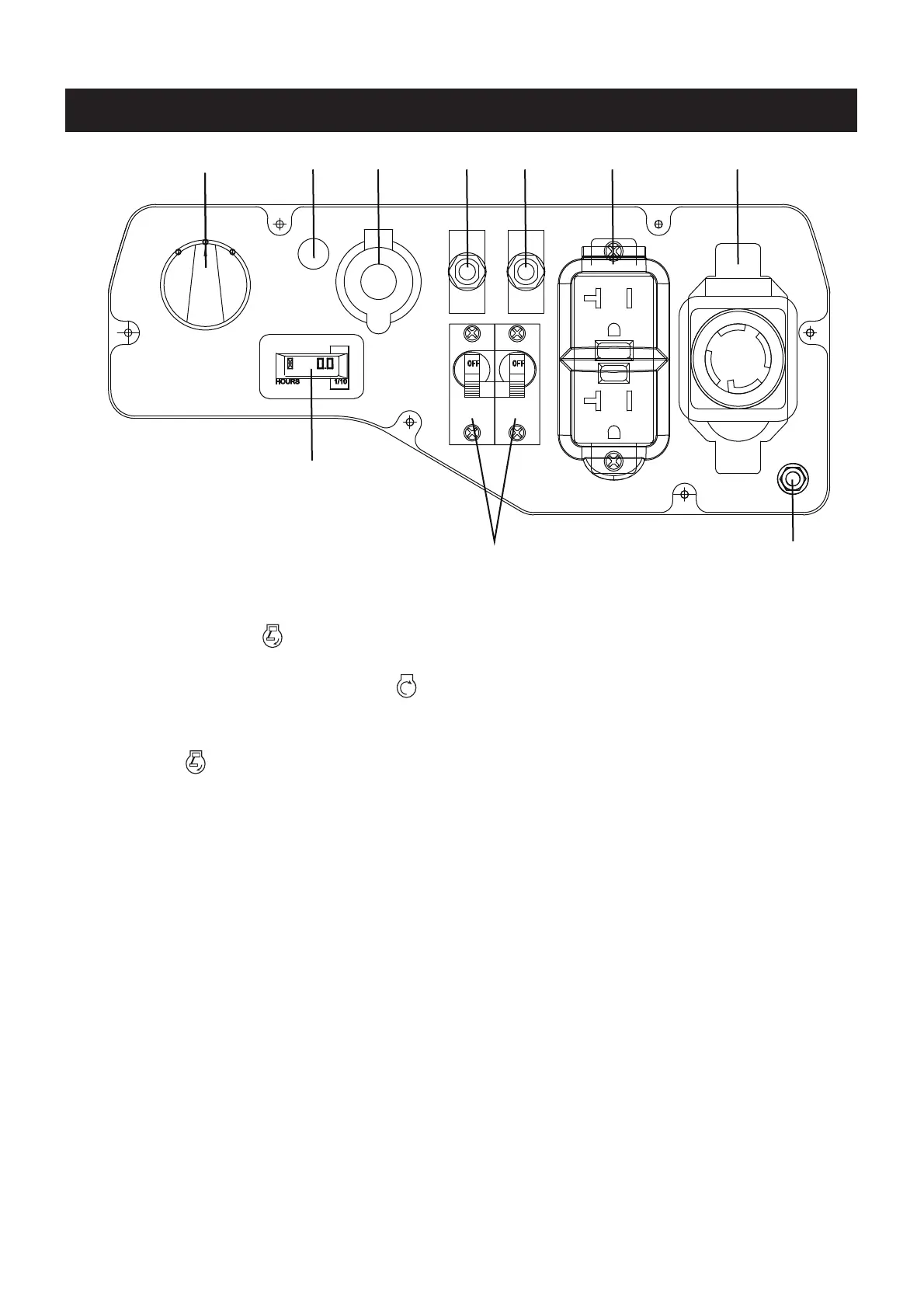

CONTROL PANEL FEATURES
1. Engine Control Switch: To start engine manually,
flip the switch to RUN (I) position and pull
recoil starter. To start engine with electric start,
press and hold the switch on the START (II)
position and the engine will crank and attempts to
start. When the engine starts, release the switch
to the RUN (I) position.
2. Low Oil Indicator: The Light will be illuminated
when the engine oil level is low. Add oil.
3. 12V DC, Outlet (Automotive): Provides 12 volt
DC power up to 8.3 amps.
4. Circuit Breaker(DC): Protects the generator
against electrical overloads.
5. Circuit Breaker(AC): Protects the generator
against electrical overloads.
6. 120V AC, 20A Duplex, GFCI, Single Phase,
60 Hz Outlets (5-20R): Each outlet is capable
of carrying a maximum of 20 amps on a single
outlet or a combination of both outlets.
7. 120/240V AC, 50A, Single Phase, 60 Hz
Outlet (NEMA 14-50R): This outlet can supply
either 120 Volt or 240 Volt output up to 50 amps.
8. Ground Terminal: The ground terminal is used to
ground the generator.
9. Main Circuit Breaker: The main circuit breaker
controlstotal output ofall outlets to protect the
generator from overload or short circuit.
10. Hour Meter: Displays and records how many
hours your generator has run (up to 9,999.9).
