IPSO DR30SLG - Gas Heating Unit

Page 59

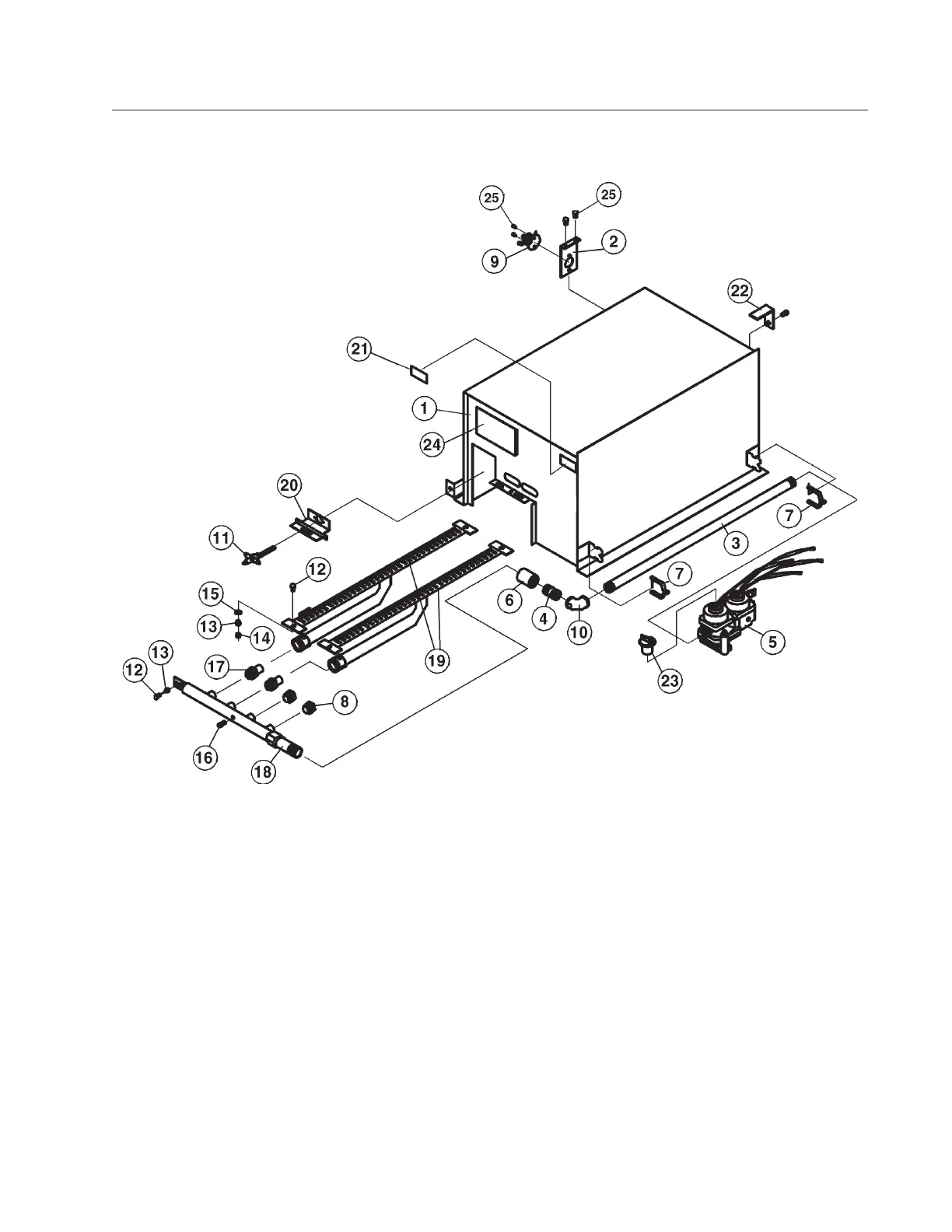

Gas Heating Unit (Regular Gas Fired Model) (Illustration)
TU13673—(Natural Gas)
TU13715—(LP Gas)
1 TU8631 Bonnet
2 TU13695 Bonnet Thermostat Bracket
3 TU13212 1/2" Pipe Nipple—24"
4 390401021 1/2" Pipe Nipple—2 1/2"
5 TU13523 1/2" Valve Combination
(Natural Gas)
TU13513 1/2" Valve Combination
(LP Gas)
6 SC505 Coupling
7 TU2226 Mounting Bracket
8 TU10946 Manifold Plug
9 TU13678 Thermostat, Man. Reset 300º
10 390501053 1/2" Elbow
11 GA-00764-0 Electrode Spark Igniter
12 CB36 1/4"—20 x 1/2 Hex Hd. Scr.
13 TU2846 1/4" Split Lockwasher
14 TU4934 1/4"—20 Hex Nut
15 TU2847 1/4"—Flat Washer
16 TU2224 1/8" Pipe Plug
17 TU3539 Gas Burner Orifice
(specify size)
18 TU8288 Manifold Assembly
19 TU7840 Burner
20 TU13826 Electrode Spark Mounting
Bracket
21 TU8645 Caution Label
22 TU11181 Burner Locator Angle
23 C1365 Connector T&B
24 TU13914 DSI Instruction
25 TU7733 #8 Self Drill Scr. (Pkg. of 6)
