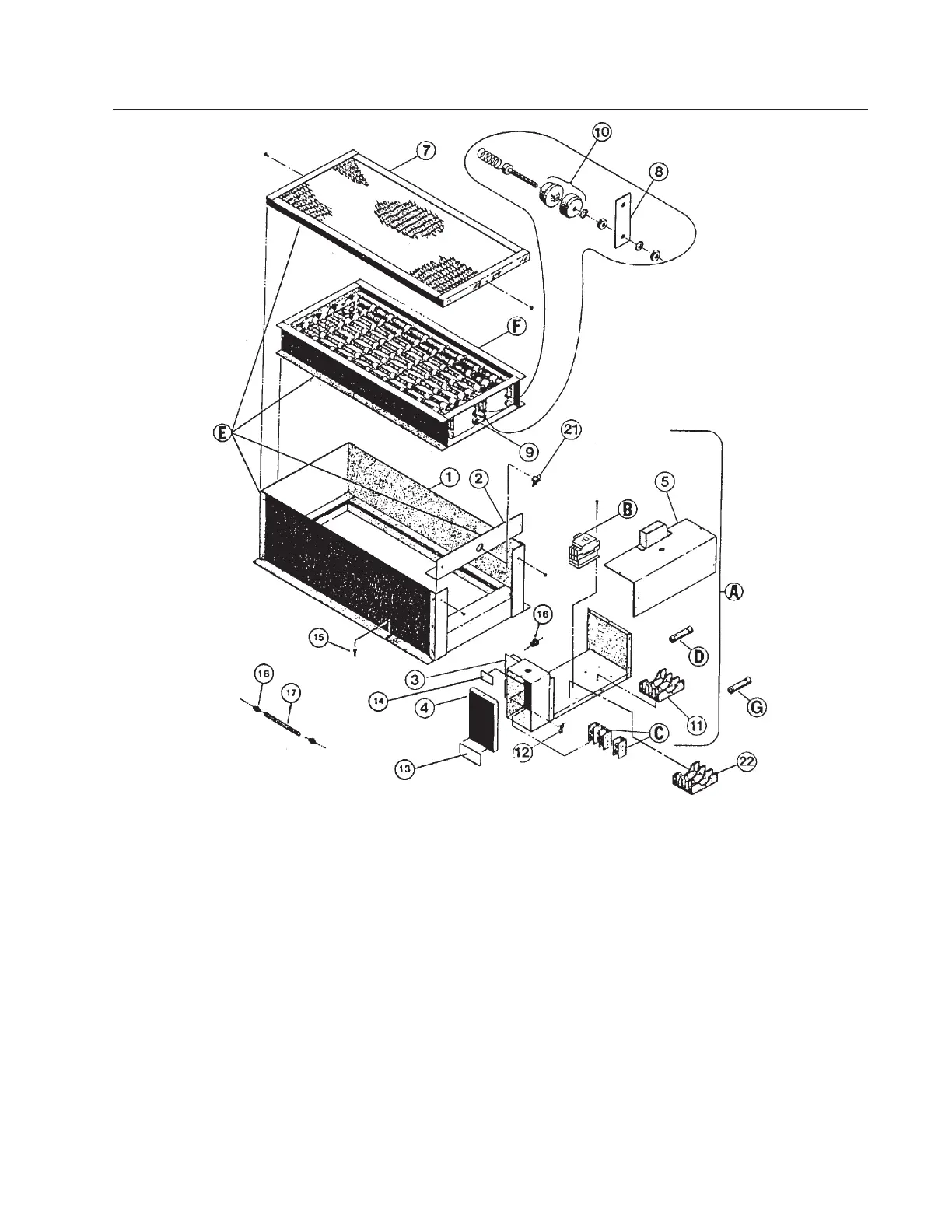

Electric Heating Unit (Illustration)
16 TU5958 Bushing (2 required)
17 CFB0700 Cable—1/2" x 7" Lg.
18 TU4790 Straight Connector
(2 required)
21 TU7244 Thermostat—135°F
22 TU13588 Motor Fuse Holder
A see next page Control Box Less Wiring
B “ Contactor
C “ Terminal Block
D “ Fuse
E “ Bonnet with Elements
F “ Heater Elements
G “ Motor Fuse
1 TU3103 Bonnet Weldment
2 TU3102 Hold Down Plate
3 TU9205 Control Box Weldment
4 TU9207 Terminal Box Cover
5 TU12454 Top Cover
7 TU3104 Air Inlet Cover
8 TU3767 Contact Strap (4 required)
9 TU3768 Contact Strap (1 required)
10 TU3253 Insulators
11 TU13866 Fuse Holder
12 TU7738 Grounding Lug
13 TU9254 High Voltage Label
for 415V Only
14 TU9258 Ground Label
15 CB36 1/4"-20 x 1/2" Hex Screw
(Pkg. of 6)
