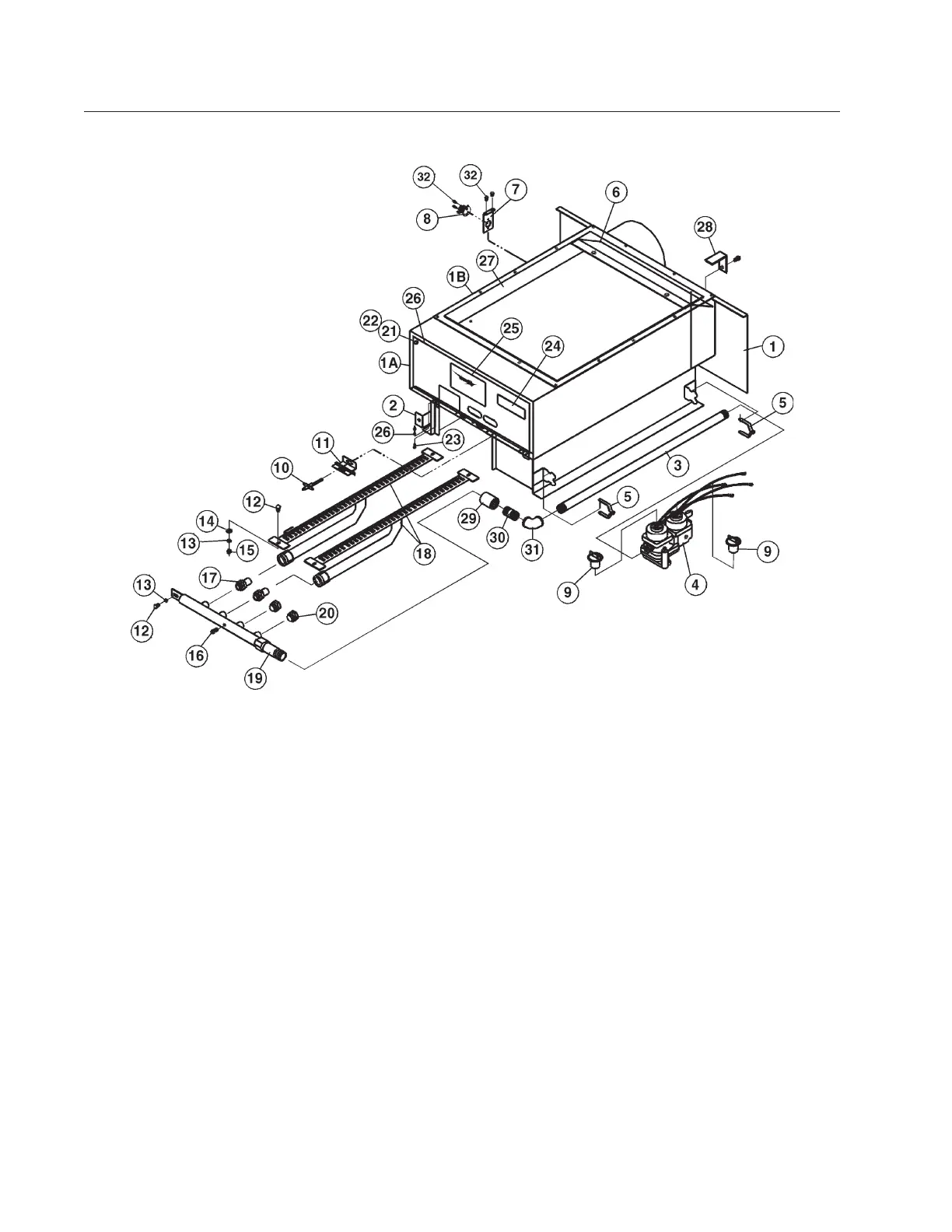

Parts—Gas Heating Unit (Energy-Saver Gas Model)
TU13786—(Natural Gas)
TU13785—(LP Gas)
1 TU9048 Bonnet
1A TU8651 Door and Hinge
1B TU7775 Top Panel (for TU8640
order separately)
2 TU2842 #10 - 32 Hex Nut
3 TU13212 1/2" Pipe Nipple—24"
4 TU13523 1/2" Valve Combination
(Natural Gas)
TU13513 1/2" Valve Combination
(LP Gas)
5 TU2226 Mounting Bracket
6 TU7294 Upper Rear Air Deflector
7 TU13695 Bonnet Thermostat Bracket
8 TU13678 Thermostat, Man. Reset 300º
9 C1365 Connector T&B
10 GA-00764-0 Electrode Spark
Igniter
11 TU13826 Electrode Spark Mounting
Plate
12 CB36 1/4"—20 x 1/2" Hex
Head Screw
13 TU2846 1/4" Split Lockwasher
14 TU2847 1/4" Flat Washer
15 TU4934 1/4"—20 Hex Nut
16 TU2224 1/8" Pipe Plug
17 TU3539 Gas Burner Orifice
(specify size)
18 TU7840 Burner
19 TU8288 Manifold Assembly
20 TU10946 Manifold Plug
21 TU2877 #10 Tinnerman Nut
22 TU2878 #10 x 5/8" S.M.S.
23 TU3479 #10—32 x 7/16" Truss
Head Screw
24 TU8645 Caution Label
25 TU13914 DSI Instruction
26 P104 1/4" Cut Washer
27 TU2853 Gasket Material
28 TU11181 Burner Locator Angle
29 SC505 Coupling
30 390401021 1/2" Pipe nipple 2 1/2"
31 390501053 1/2" Elbow
32 TU7733 #8 Self Drill Scr. (Pkg. of 6)
