IPU Spring Starter User Manual
4
of 1
of 1 rating
24 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
P
a
g
e
|
6

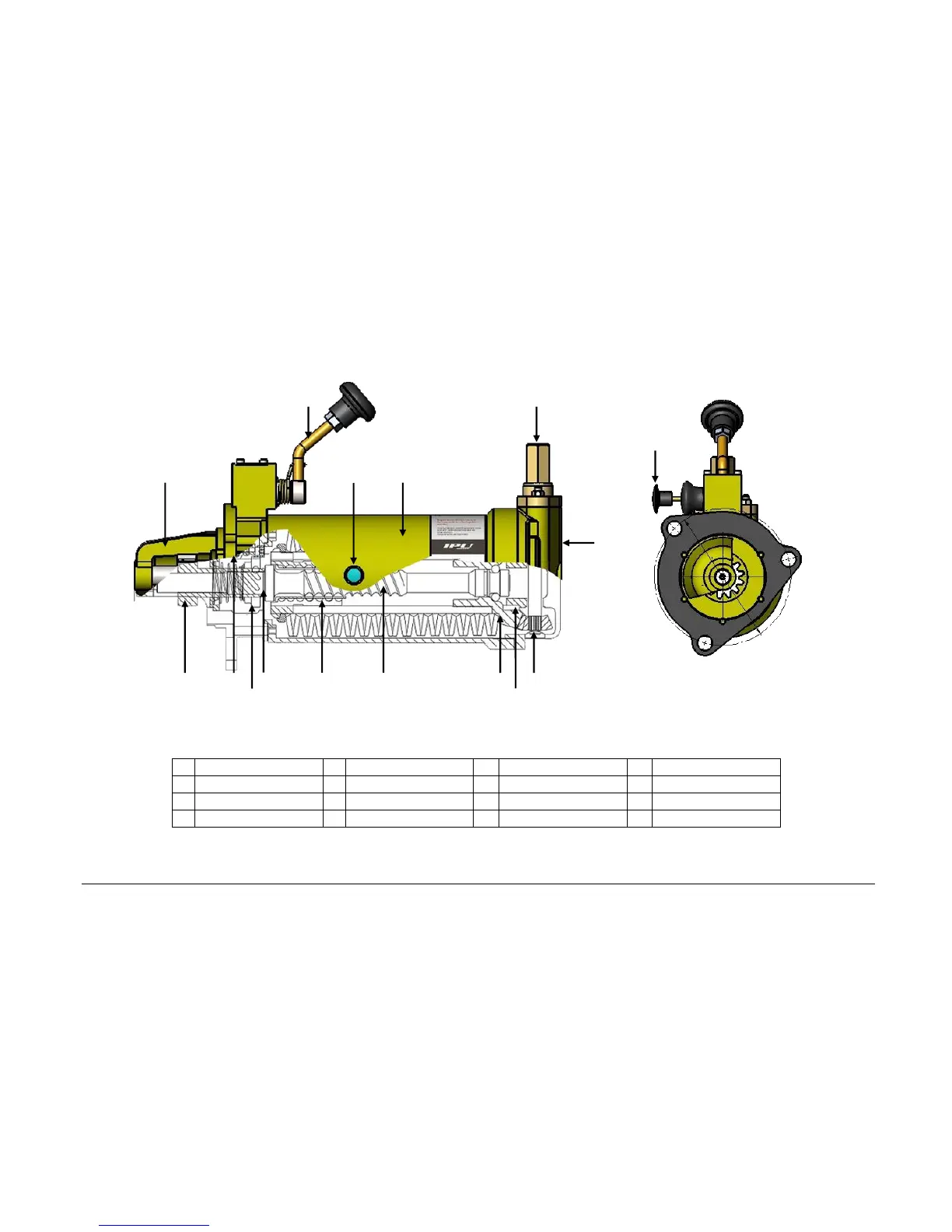

The IPU Spring Starter
1
Front Housing
5
Reset Knob
9
Spacer Shims
13
Circlip
2
Viewing Window
6
Input Adaptor
10
Drive Gear
14
Drive Ratchet
3
Body
7
Rear Housing
11
Drive Shaft
15
Lock
4
Trip Lever
8
Bevel Pinion
12
Drive Nut
16
Drive Pinion
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
5
7
Table of Contents
Table of Contents
2
Introduction
3
Contents of Box
3
Before Using the Spring Starter for the First Time
4
Basic Steps
5
The IPU Spring Starter
6
Installation
7
Rotation
7
Engine Space
7
Replacing the Original Starter
7
IPU Design
7
Pre Installation Checks
8
Alternative
8
Final Preparation
9
Operation
10
Unwinding
11
Slow Engine Cranking
12
Dual Starting Engines
13
Cold Starting
14
Trouble Shooting
15
Faulty Winding Mechanism
15
Jammed Starter
16
Position Code Procedure
17
Position Code Table
18
Appendix 1: Replacement Parts List
19
Appendix 2: Important Operating Instructions
20
Storage Mounting
20
Instructions for 'Dual -Start Engines
21
Appendix 5: Anti-Clockwise Starters
22
Appendix 6: Routine Testing of IPU Starter
23
Contact Details
24
