Pre Installation checks

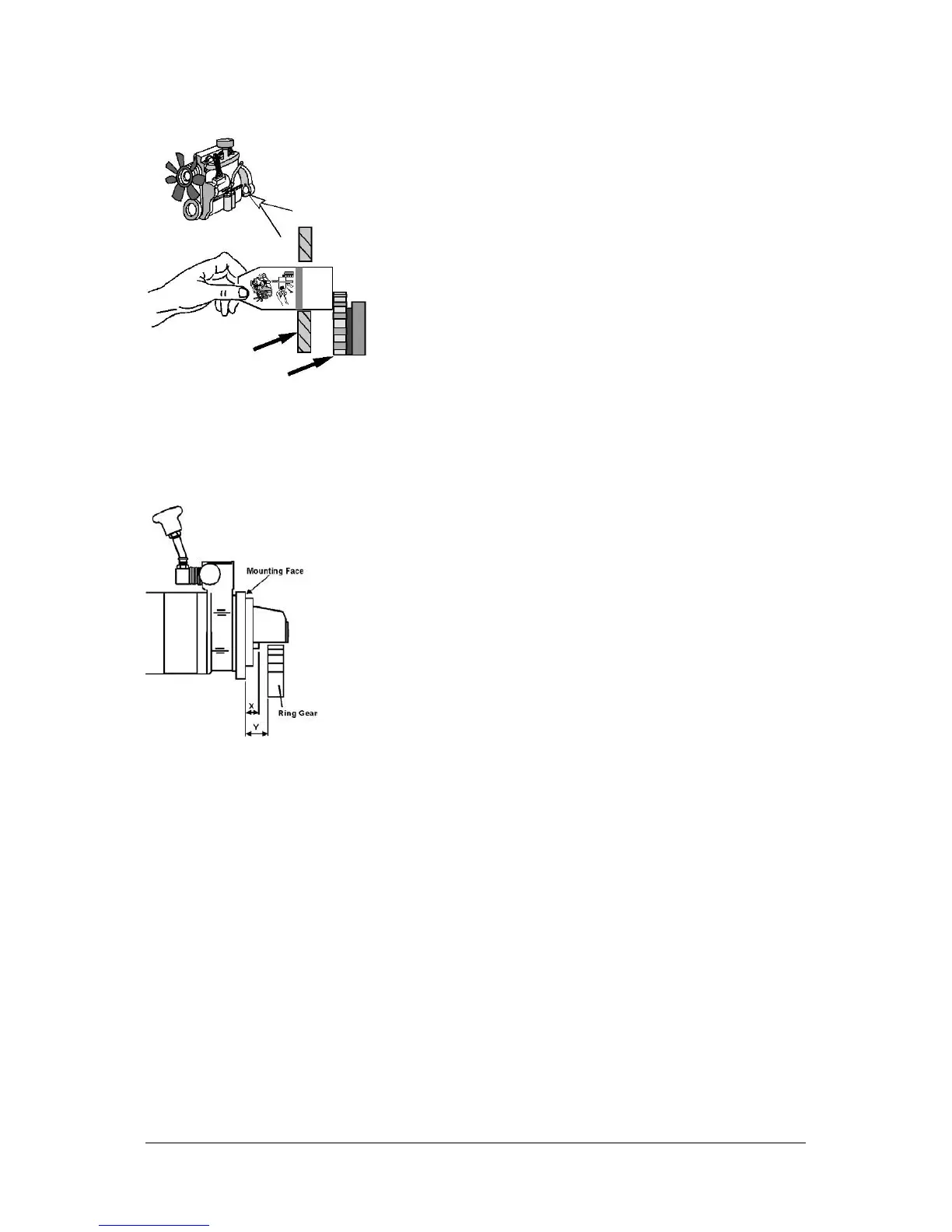

The IPU Starter is designed so that when installed on the
engine, in the unwound position, there is between 3 and 5
mm clearance between the pinion face and the flywheel
ring gear. To ensure that the clearance is correct, press the
‘check card’ (provided) against the ring gear and ensure
the flange mounting face sits in the safe area.
Alternative
Measure the mounting face to pinion face dimension 'X',
and the mounting face to ring gear depth ‘Y'. The distance
Y-X should be between 3 and 5 mm.
Flywheel Ring Gear
Flange Mounting Face
