A.2 Terminal Application
Typically used in association with programming scripts for
developing applications for motion detection, event triggering,
alarm notification via e-mail, and a variety of external control
functions. The GPIO connectors are located on the rear panel of
the camera, which provide the interface of connecting the sensor
device (IN) and controlled device (OUT).
 Connector Pin Assignment
PIN SPECIFICATION
IN Active High voltage 9~40V DC;
Dropout-out voltage 0V DC
OUT
Close circuit current 70mA AC or 100mA DC maximum,
Output resistance 30 Ohm;
Open circuit voltage 240V AC or 350V DC maximum

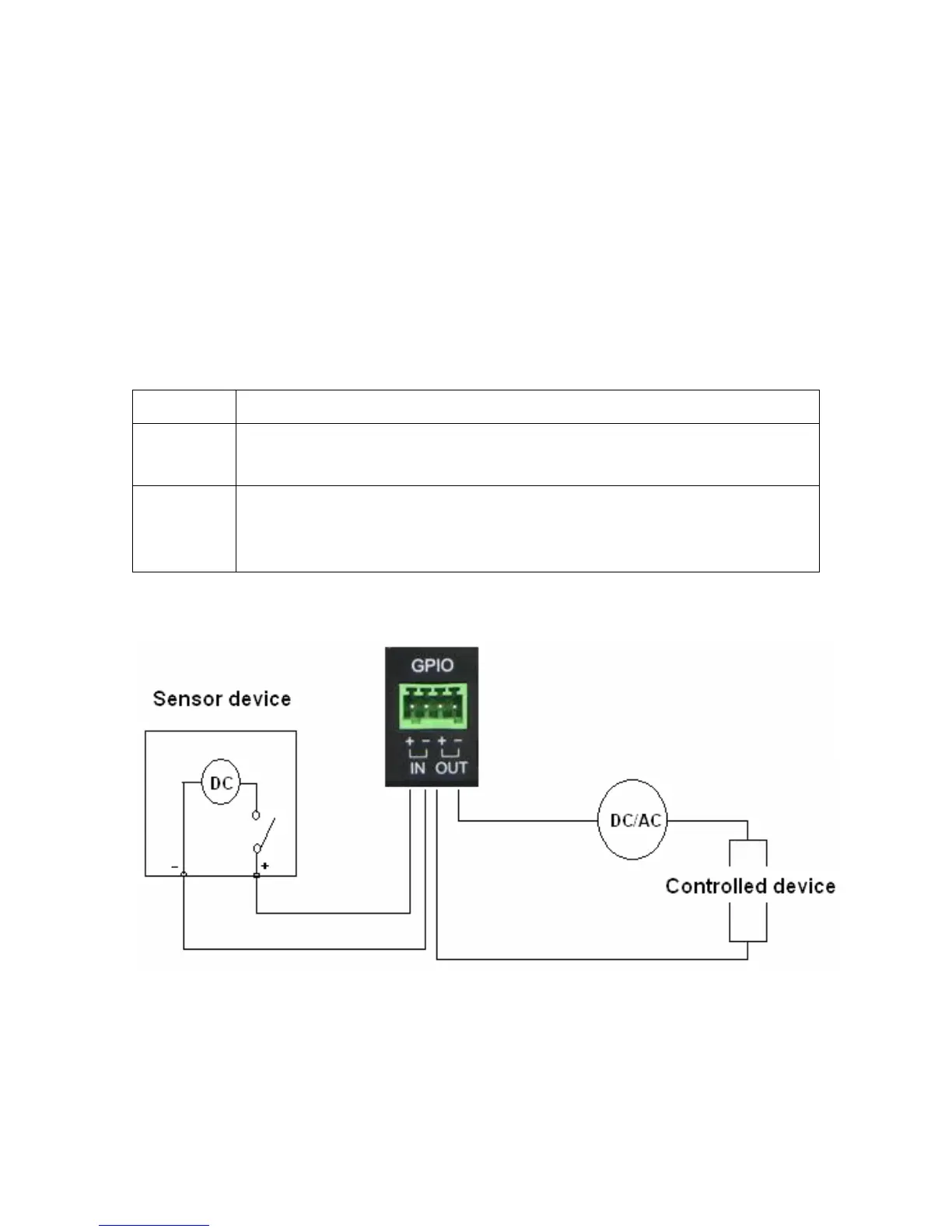

 Interface Schematic
