Table 4: Item Number Description for Figure 7
Item Type Description Quantity
1 Assembly 9601 SBD Transceiver 1
2 Part Mounting Plate or Surface (developer provided) 1

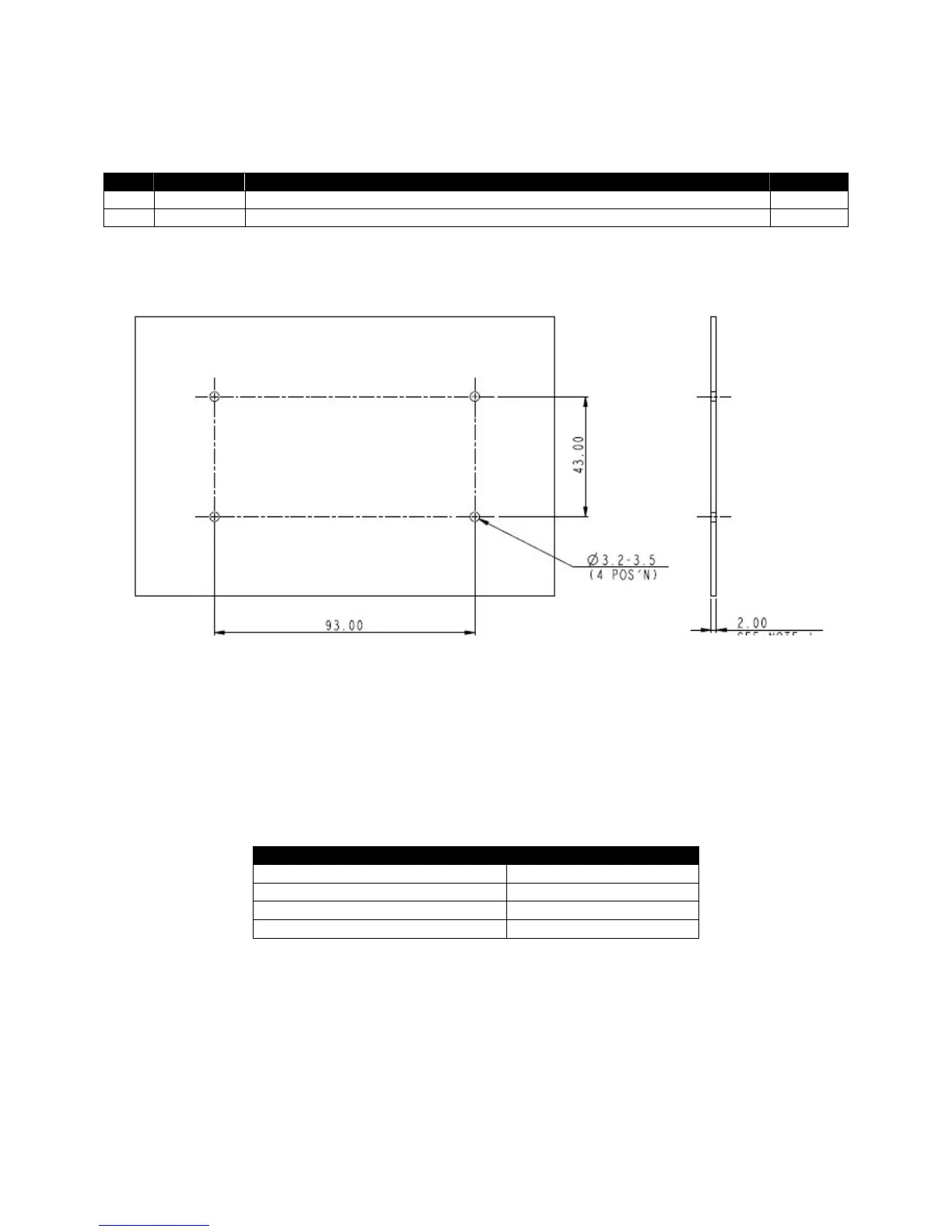

Figure 8: Mechanical mounting foot print for use when panel mounting 9601.
(Dimensions in milli-meters, not to scale)
4.0 Environmental
The environmental specifications of the 9601 are summarized in Table 5 below.
Table 5: Environmental Specifications
Parameter Value
Operating Temperature Range -30ºC to + 60ºC
Operating Humidity Range 75% RH
Storage Temperature Range -40ºC to + 85ºC
Storage Humidity Range 93% RH
The 9601 has been tested to the specifications listed in Table 6.
