antenna and user connector.

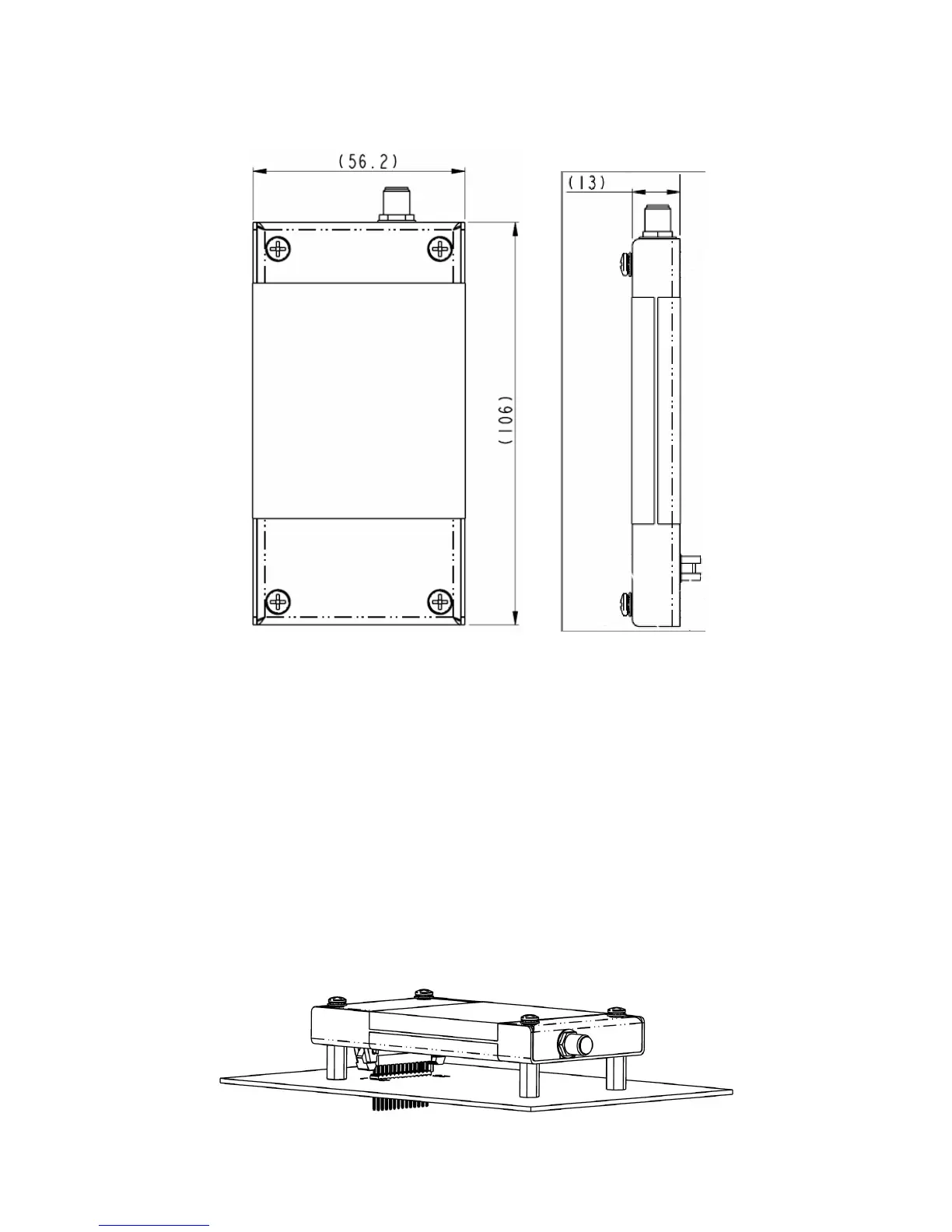

Figure 2 Dimensions of the 9601 SBD Transceiver.
Notes:
• The SMA Antenna connector is 10mm long
• The Samtec user connector rises 6 mm above the enclosure
3.2 Mechanical Dimensions – Mounting
The 9601 SBD Transceiver is provided with four mounting holes, one at each corner. During
manufacture four screws are inserted for shipping purposes. These screws need to be removed
for mounting. There are two basic options for mounting – stackable and mounting to a surface
such as a mounting plate or enclosure wall. The following sections provide further information.
3.2.1 Mounting - Stackable Design
An example stackable design is shown in Figure 3.
