Figure 3: 9601 SBD Transceiver mounted to a unpopulated PCB.
The figures below provides mechanical information design information for a suitable ‘stackable’ 9601 to
developer PCB configuration

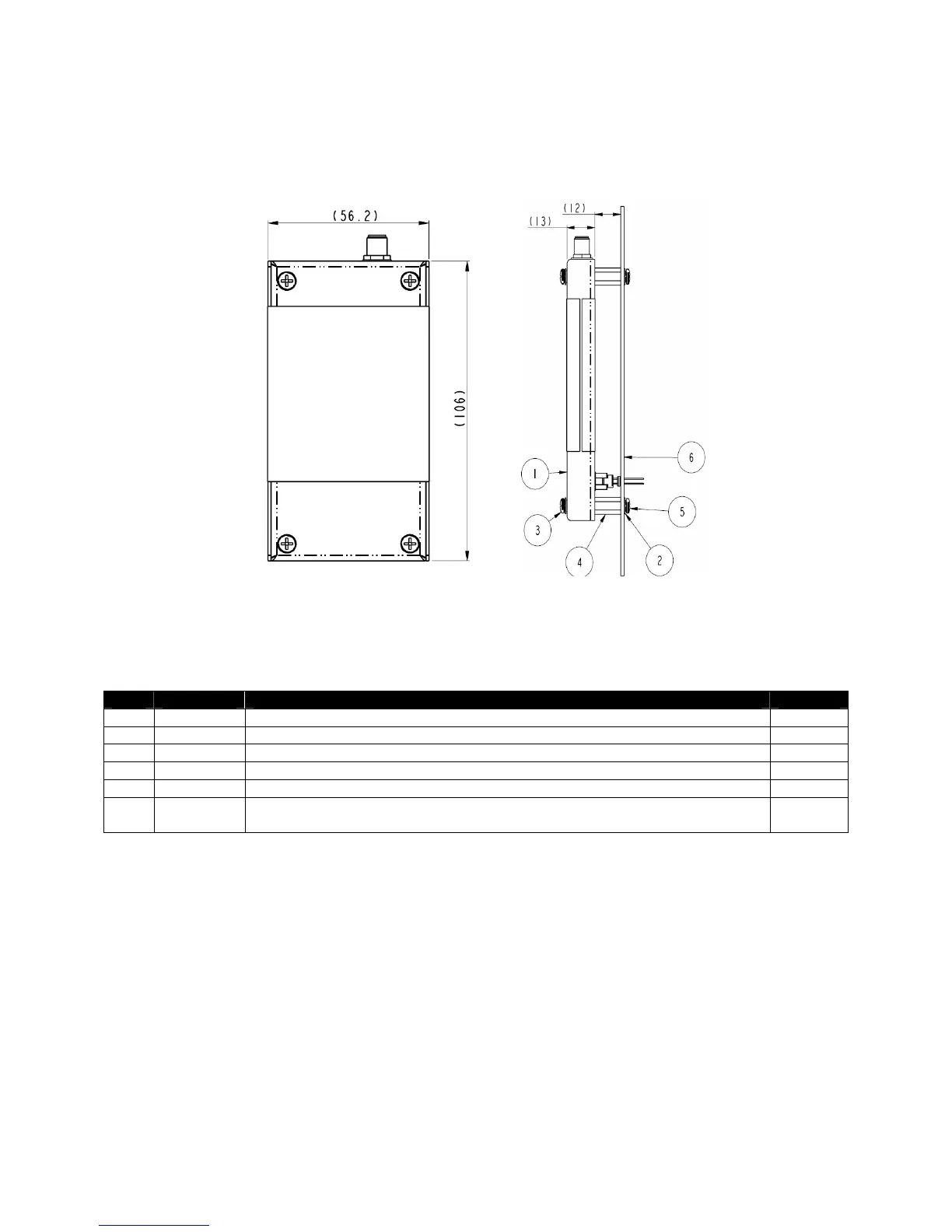

Figure 4: Assembly Item Number Identification. Item Numbers in Figure 4 are described in Table 3.
Not to scale. Dimensions in millimeters.
Table 3: Item Number Description for Figure 4
Item Type Description Quantity
1 Assembly 9601 SBD Transceiver 1
2 Part M3 Shake-proof washer, zinc plated steel [4 supplied with item 1] 8
3 Part M3 x 20 Pan head screw, pozidrive, zinc plated steel [4 supplied with item 1] 4
4 Part M3 Threaded standoff, 6.0 A/F HEX x 12.00 mm 4
5 Part M3 x 8 Pan head screw, pozidrive, zinc plated steel 4
6 Assembly
Solution developer PCB fitted with Samtec connector ESQT-113-02-L-D-425.
[This item is the same item as Item 1 in Figure 5.]
1
