IriSys IRI 4010 - Using the Iri 4010 Thermal Imager; Focusing

IPU 40108



Page 7 of 29
3.4 Using the IRI 4010 Thermal Imager
3.4.1 Focusing

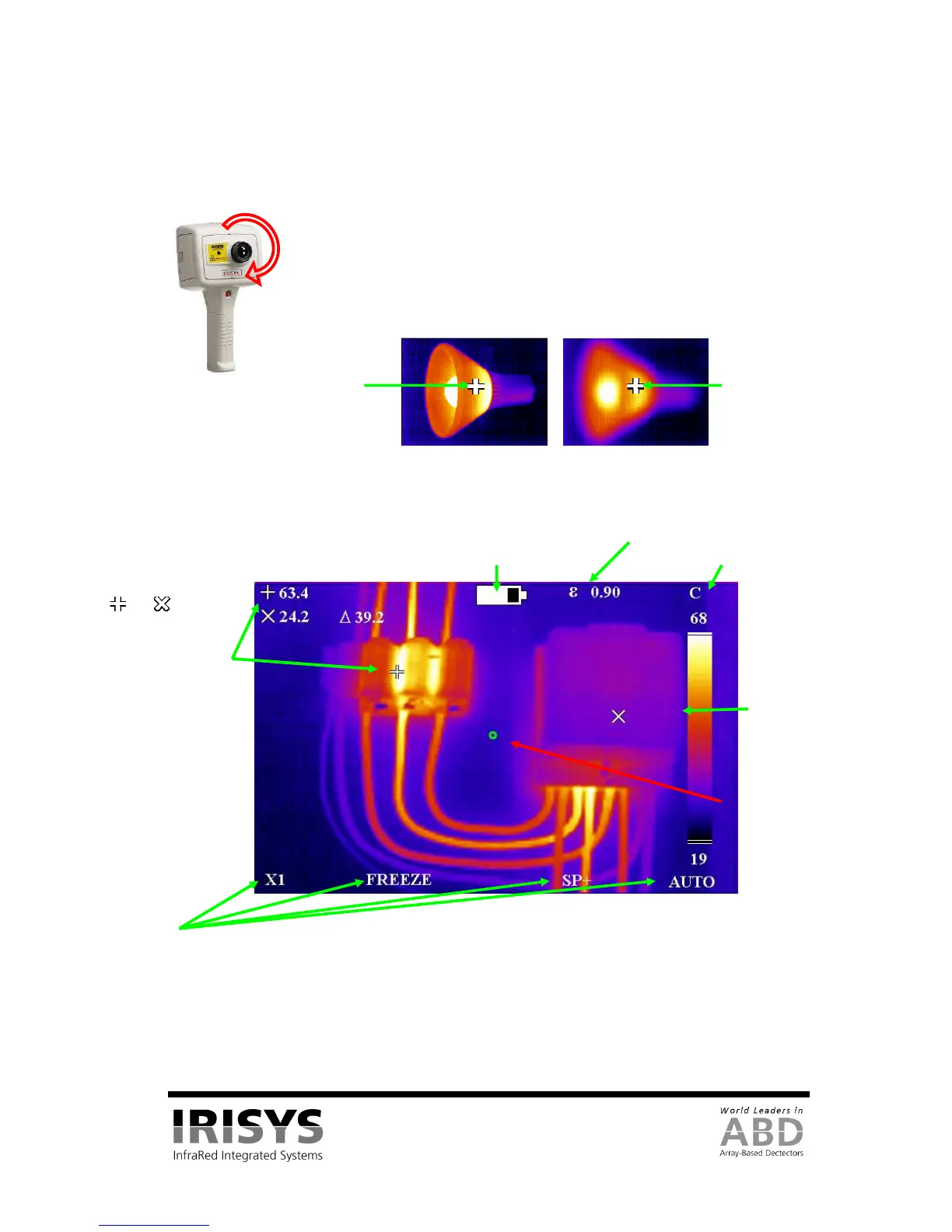

Figure 8: Focusing
.
3.4.2 Screen Display Items
Figure 9: Screen Display Items
 CAUTION: The calibrated temperature output is the figure adjacent to the cursor identifier; the temperature
scale and display colours are indicators only.
Scene emissivity
The centre green
circle to which the
laser pointer is
aligned at a
distance of 3m.
The and shaped
temperature
measurement cursors
(called SP+ and SPX)
and their temperature
measurement values, and
their temperature
differen
ce value (
∆).
Battery life indicator.
Temperature
units (˚C).
Temperature scale
with the maximum
and minimum
values of the span.
F
our hot button labels
.
If the imager is not focused, the image quality will be poor and temperature
measurements will not be accurate.
Rotating the lens in a clockwise direction (from front view) focuses the imager at
longer distances up to infinity. Rotating the lens in the opposite direction focuses
the imager at shorter distances down to a minimum of 30 cm.
Rotate the lens until the image has the best definition, and has the sharpest contrast
at object edges.
Focused
54°C measured.
Not focused
46°C measured.
