Irritrol Climate Logic - Quick Start Guide

2
Topic
Climate Logic System
Quick-Start Guide
The Quick-Start guide provides the essential steps required to properly install and setup the
Climate Logic system in the most direct route possible. As needed, refer to the detailed information
on the page number listed with each step.

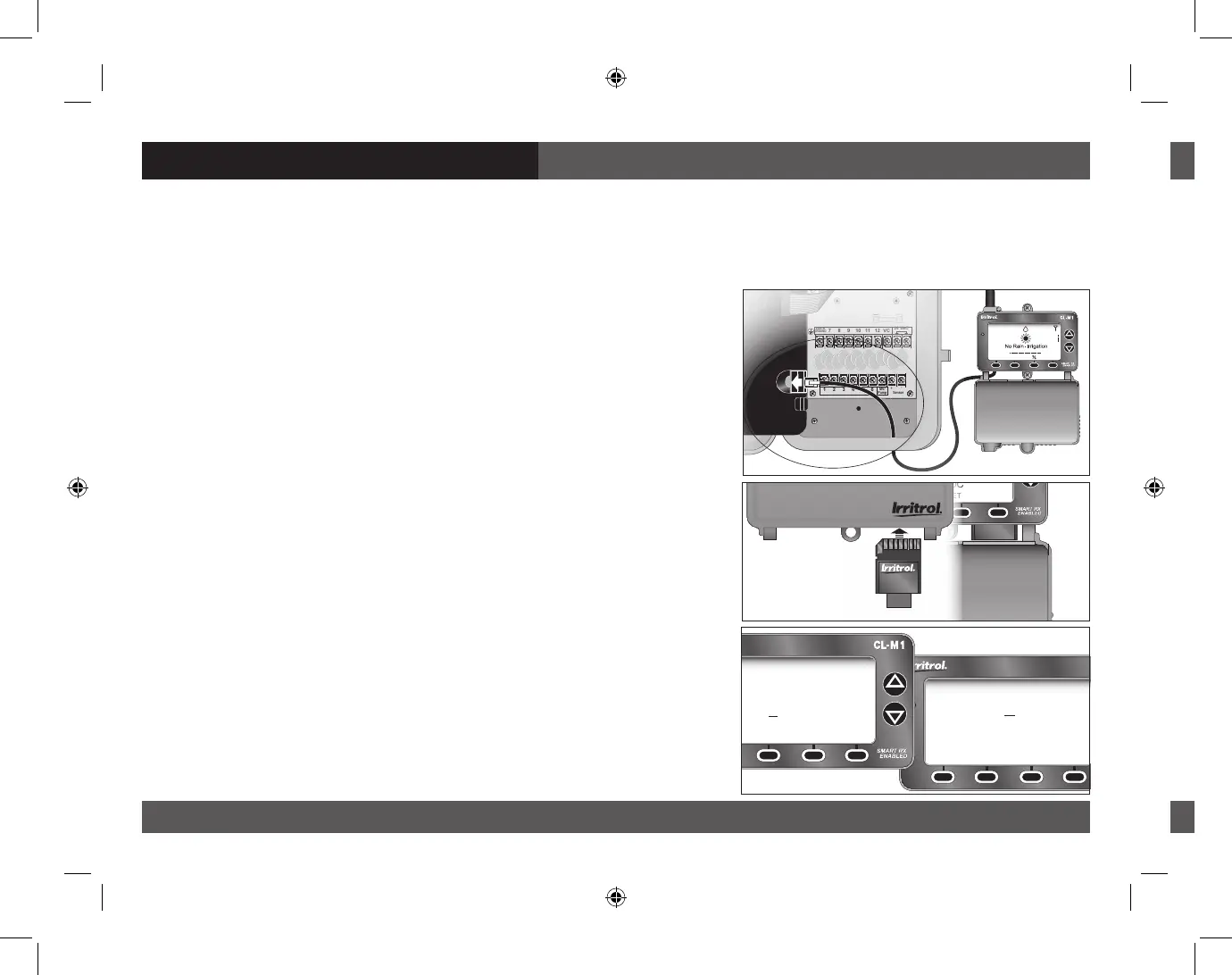

Step 1 – Connect and secure the Receiver Module next
to the controller. See page 6.
Step 2 – Adjust controller program A for the hottest/
driest conditions expected, without causing
over-watering and runo. Retain all watering
time/day restrictions in the program schedule
as required See page 6.
Step 3 – Synchronize the Receiver Module and controller
to the current time and date. See page 7.
Step 4 – Insert the Receiver Module Setup Card as
shown. See page 8.
Step 5 – Establish your location by entering the ve-digit
ZIP code, or Lat/Lon coordinates as preferred.
See page 8.
2
Quick Start Setup Guide
Quick Start Setup Guide
3
Quick-Start Guide
S
tep 6 – Press and hold the sensor Test Pin for 10–15
seconds to activate the Weather Sensor!
A red LED (viewable through the lower vent
ring) will illuminate twice after 10 seconds to
conrm activation (if not already active).
See page 9.
Step 7 – Press the sensor Test Pin again to conrm
signal reception at the Receiver Module. The
receiver’s red LED will turn on momentarily
when the signal is received. Press the BYPASS
key to cancel the Dry-out mode delay period
and resume normal operation. See page 9.
Note: If the LED does not turn on, refer to the
Weather Sensor setup procedure on page 19.
Step 8 – Check the Rain Sensor threshold setting and
adjust as needed. See page 10.
S
tep 9 – Secure the Weather Sensor to a rain gutter
or other suitable structure that provides
unrestricted exposure. Adjust the sensor
alignment to vertical. See page 11.
EARTH
GROUND
MV/
Pump
Sensor
+
-
7 8 9 10 11 12
1 2 3 4 5 6
24 VAC
VC
MENU
_ _ _
F 100%
CLIMATE LOGIC
9:15a
11/16
THIS SIDE UP
THIS SIDE UP
CLIMATE LOGIC
MENU
1:15
a
11/16
69F 30%
CLIMATE LOGIC
SETUP CARD
CLIMATE LOGIC
SETUP CARD
TM
CLIMATE LOGIC
MENU SET LOC
No Rain - Irrigation
MUST SET LOCATION
F 40%
– – –
CLIMATE LOGIC
SETUP CARD
CLIMATE LOGIC
SETUP CARD
THIS SIDE UP
CLIMATE LOGIC
CLIMATE LOGIC
CLIMATE LOGIC
TM
TM
Location
LAT
LONG
North America
-000.0000
00.0000
SAVE CANCEL ZIP NEXT
Location
ZIP
00000
SAVE
CANCEL LAT NEXT
