Irritrol Climate Logic - Weather Sensor Installation and Setup

8
Receiver Module Installation
Weather Sensor Installation and Setup
9
Weather Sensor Installation and Setup

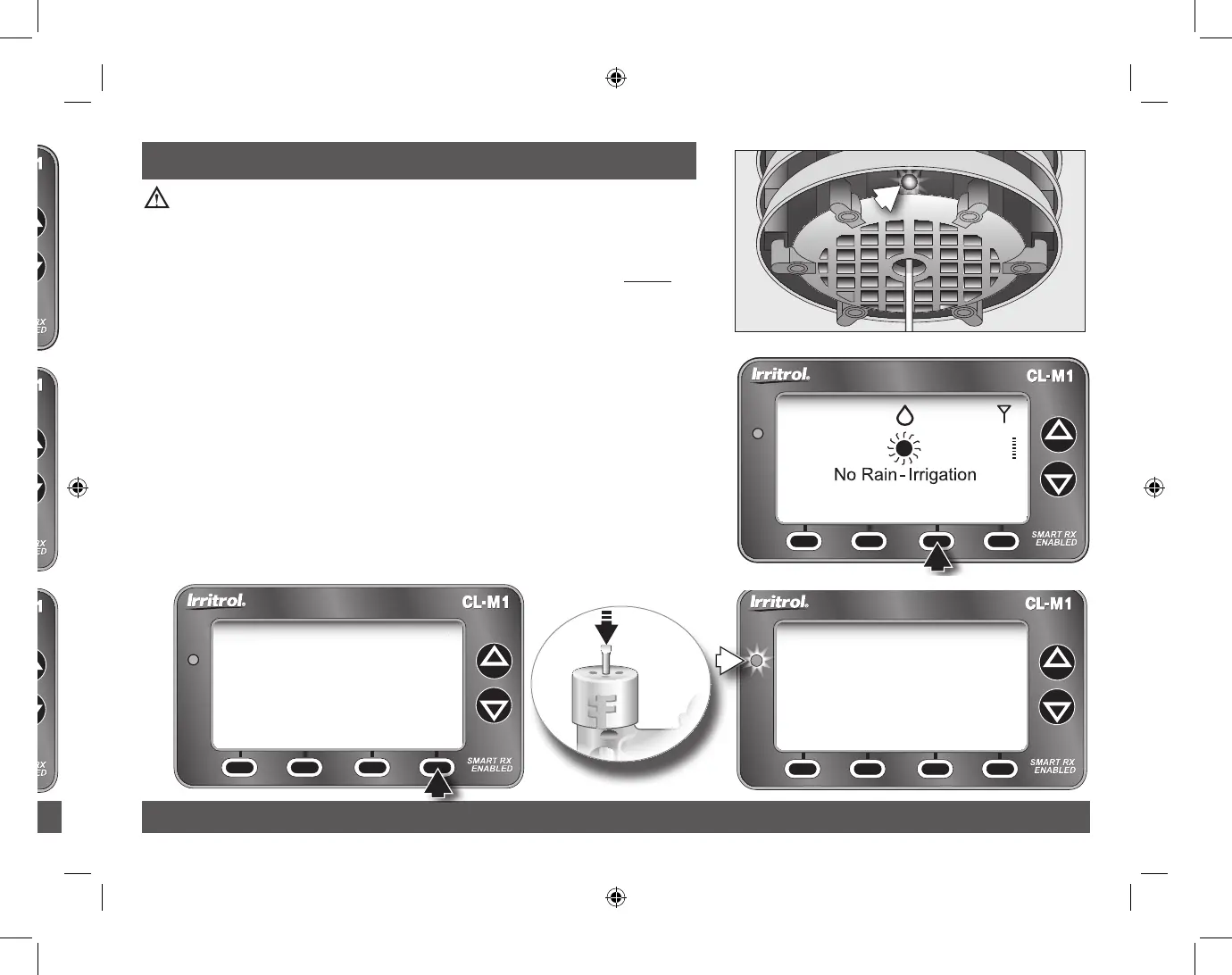

Important: The Climate Logic Weather Sensor is shipped with
the battery circuit deactivated. To initially activate the sensor prior
to installation, press and hold the Test Pin for 10–15 seconds. A red
LED, viewable from the lower vent area, will illuminate twice after
10 seconds (if not already active).
Note: The Weather Sensor and Receiver Module are paired for wireless
communication from the factory. The following procedure will only be
required if Please Add Sensor is displayed on the Home screen.
1. Pair the Weather Sensor transmitter with the Receiver Module
to establish wireless communications as follows:
 • FromtheHome screen, press the ADDSEN key to display
the Sensor Setup screen. Press the ADD key to initiate the
sensor ID search function.
 • PressandreleasetheTest Pin to “Ping” the Receiver Module.
When pairing is successful, the 7-digit sensor ID is displayed.
CLIMATE LOGIC
MENU SET LOC
No Rain - Irrigation
MUST SET LOCATION
F 40%
– – –
Location
ZIP
00000
SAVE CANCEL LAT NEXT
Location
LAT
LONG
North America
-000.0000
00.0000
SAVE CANCEL ZIP NEXT
Sensor Setup
Add Sensor
Searching.......
EXIT ADD
Sensor Setup
ET Sensor ID: 0065157
Successful
Sensor Found
EXIT
MENU ADD-SEN
PLEASE ADD SENSOR
_ _ _
F 100%
CLIMATE LOGIC
