Receiver Module Installation
Weather Sensor Installation and Setup
9
Weather Sensor Installation and Setup
Important: The Climate Logic Weather Sensor is shipped with
the battery circuit deactivated. To initially activate the sensor prior
to installation, press and hold the Test Pin for 10–15 seconds. A red
LED, viewable from the lower vent area, will illuminate twice after
10 seconds (if not already active).
Note: The Weather Sensor and Receiver Module are paired for wireless
communication from the factory. The following procedure will only be
required if Please Add Sensor is displayed on the Home screen.
1. Pair the Weather Sensor transmitter with the Receiver Module
to establish wireless communications as follows:
 • FromtheHome screen, press the ADDSEN key to display
the Sensor Setup screen. Press the ADD key to initiate the
sensor ID search function.
 • PressandreleasetheTest Pin to “Ping” the Receiver Module.
When pairing is successful, the 7-digit sensor ID is displayed.

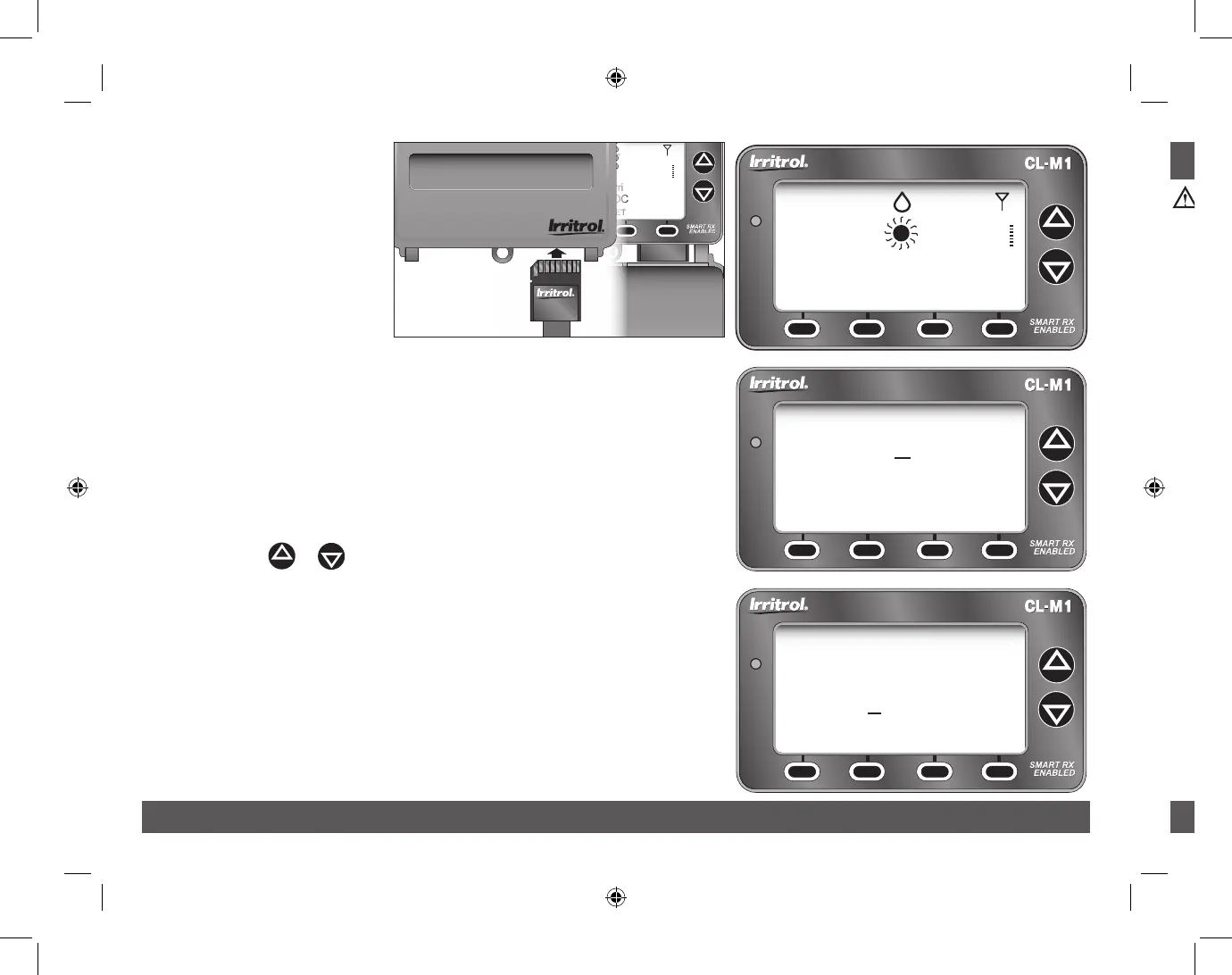

6. With the cover closed,
insert the Climate Logic
Setup Card into the
Receiver Module slot as
shown. Open the cover
to proceed.
Note: The Home screen
(right) will be displayed
only when a location has not been established, or has been
erased. Press the SET LOC key to display the Location screen.
7. Establish the site location as follows:
 • PressMENU _ LOCATION _ENTER to display the Location
screen.
Note: The Lat/Lon Location screen will be displayed by default.
To set the location using a 5-digit ZIP code, press the ZIP key.
 • Pressthe or key to adjust the selected value. Press the
NEXT key to select the next value in sequence.
 • Whenthelocationinformationisdisplayedcorrectly,press
the SAVE key.
Note: The Receiver Module will begin transferring specic data
from Setup Card for the dened location. A conrmation screen
will indicate the completed transfer.
 • PresstheEXIT key (two times) to return to the Home screen.
8. Remove the Setup Card and stow inside the controller cabinet.
THIS SIDE UP
THIS SIDE UP
CLIMATE LOGIC
MENU
1:15a
11/16
69F 30%
CLIMATE LOGIC
SETUP CARD
CLIMATE LOGIC
SETUP CARD
TM
CLIMATE LOGIC
MENU SET LOC
No Rain - Irrigation
MUST SET LOCATION
F 40%
– – –
CLIMATE LOGIC
SETUP CARD
CLIMATE LOGIC
SETUP CARD
THIS SIDE UP
CLIMATE LOGIC
CLIMATE LOGIC
CLIMATE LOGIC
TM
TM
CLIMATE LOGIC
MENU SET LOC
No Rain - Irrigation
MUST SET LOCATION
F 40%
– – –
Location
ZIP
00000
SAVE CANCEL LAT NEXT
Location
LAT
LONG
North America
-000.0000
00.0000
SAVE CANCEL ZIP NEXT
