6
Receiver Module Installation and Setup
Receiver Module Installation and Setup
7
4. The Receiver Module will automatically* synchronize time
and date with the host controller upon initial power-up.
* Note: Does not apply to TMC-212 controller.
5. Verify that the time and date are synchronized correctly.
If necessary, adjust the Receiver Module as follows:
Note: The display will automatically return to the Home screen
if a key is not pressed within 60 seconds.

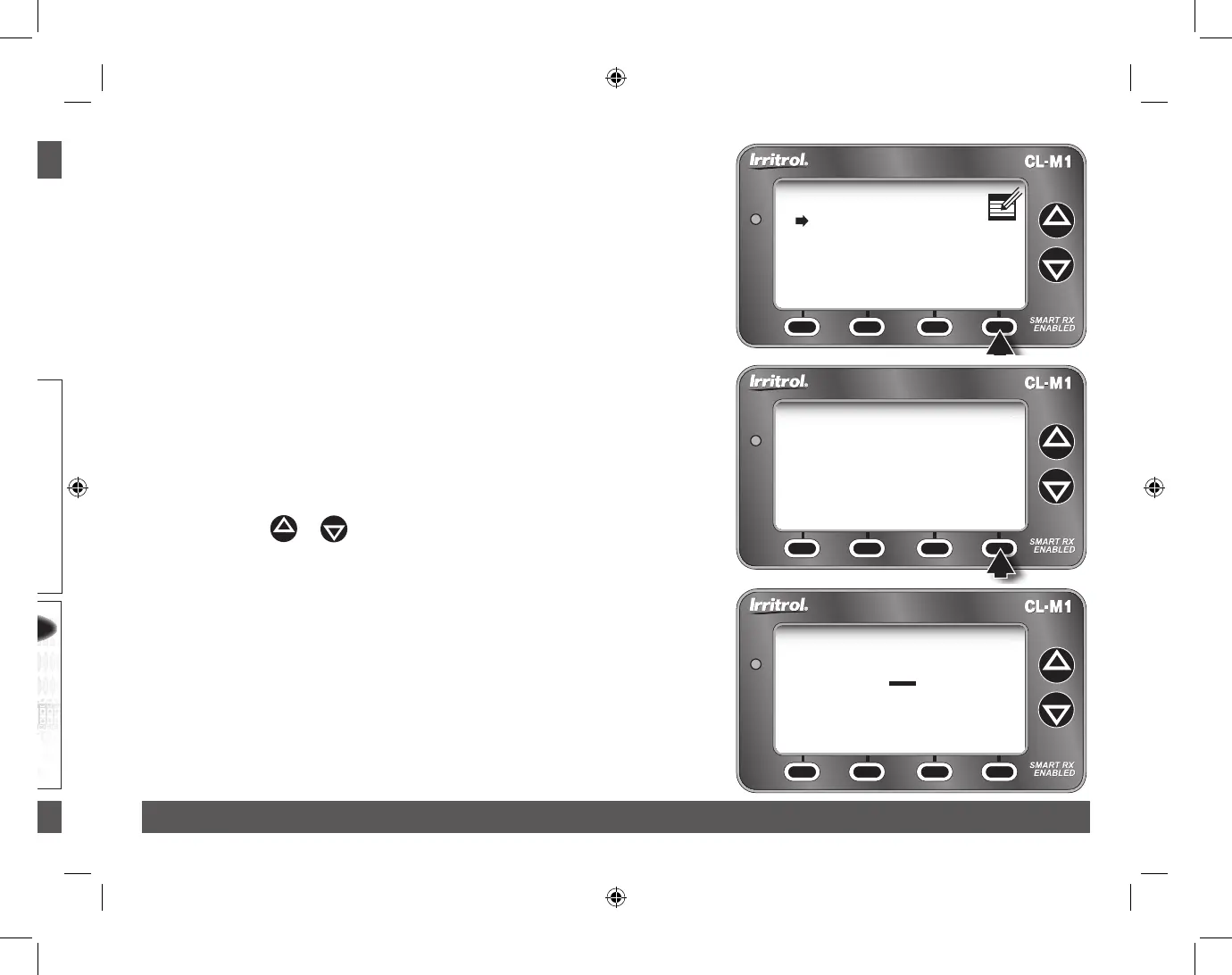

 • PresstheMENU key to display the Main Menu screen.
(The CLOCK menu option is selected by default.)
 • PresstheENTER key to display the Clock review screen.
 • PresstheSETUP key to display the Set Clock screen.
Note: To download the current time and date from the control-
ler, press the GET key. When prompted, press the YES key. .
 • Pressthe or key to adjust the selected (underscored)
value. Press the NEXT key to select the next value. Continue
setting the current day, year and time.
Note: To change the clock time display format, press the 12/24
key. To return to the previous screen without making changes,
press the CANCEL key.
 • WhentheReceiverModuleandcontrolleraresynchronized
to the current time and date, press the SAVE key.
 • PresstheEXIT key two times to return to the Home screen.
Climate Logic System Installation
Receiver Module Installation and Setup
Note: Installation methods must comply with all applicable national and local building codes.
1. Setup controller watering Program A to provide an irrigation baseline for the Climate Logic system.
The station run time, cycle start time(s), and watering day schedule* must be congured for the
hottest/driest conditions expected, without causing over-watering and runo. Retain all watering
time/day restrictions in the program schedule as required.
Note: By default, Climate Logic modies the run time of stations assigned only to Program A. To include
Program B, or Programs B and C, see page 13.
*Note: For TMC-212 controller only: Inter-
val day scheduling is not compatible with
Climate Logic. Calendar and Odd/Even
schedules are not aected.
2. Route the connection cable into the con-
troller cabinet. Insert the cable connector
into the controller’s remote control jack.
Note: Use the provided CMR-ADP cable
adapter assembly for KwikDial and MC-E
(Blue) controller applications.
3. Secure the Receiver Module to the wall
next to the controller using the provided
screws or other suitable fasteners.
Note: For indoor application, adhesive-
backed hook and loop tape (not included)
can be used instead of screws.
