ISA CBA2000 - 3.8 BASIC CONNECTION CABLES SET

Doc. SIE10169 Rev. 13 Page 16 of 32
Options characteristics:
OPTION
PII34166
PII24166
Absolute maximum voltage
250 V
70 V
Maximum operating voltage
240 V
50 V
Minimum operating voltage
50 V
16 V
Maximum voltage drop
120 V
45 V
Minimum voltage drop
10 V
5 V
Adjustment step
2 V
0,5 V
Adjustment accuracy
2 V
0,5 V
Maximum output current
4 A; dV < 60 V;
2 A; dV > 60 V
10 A; dV < 12 V;
5 A; dV > 12 V
Maximum test duration
500 ms
500 ms
Pause duration
20 s
20 s
. Connections: one input safety socket, to be connected to the auxiliary supply positive, and one
output safety socket, to be connected to the minimum voltage input.
. Voltage adjustment in steps.
. Over-current protection.

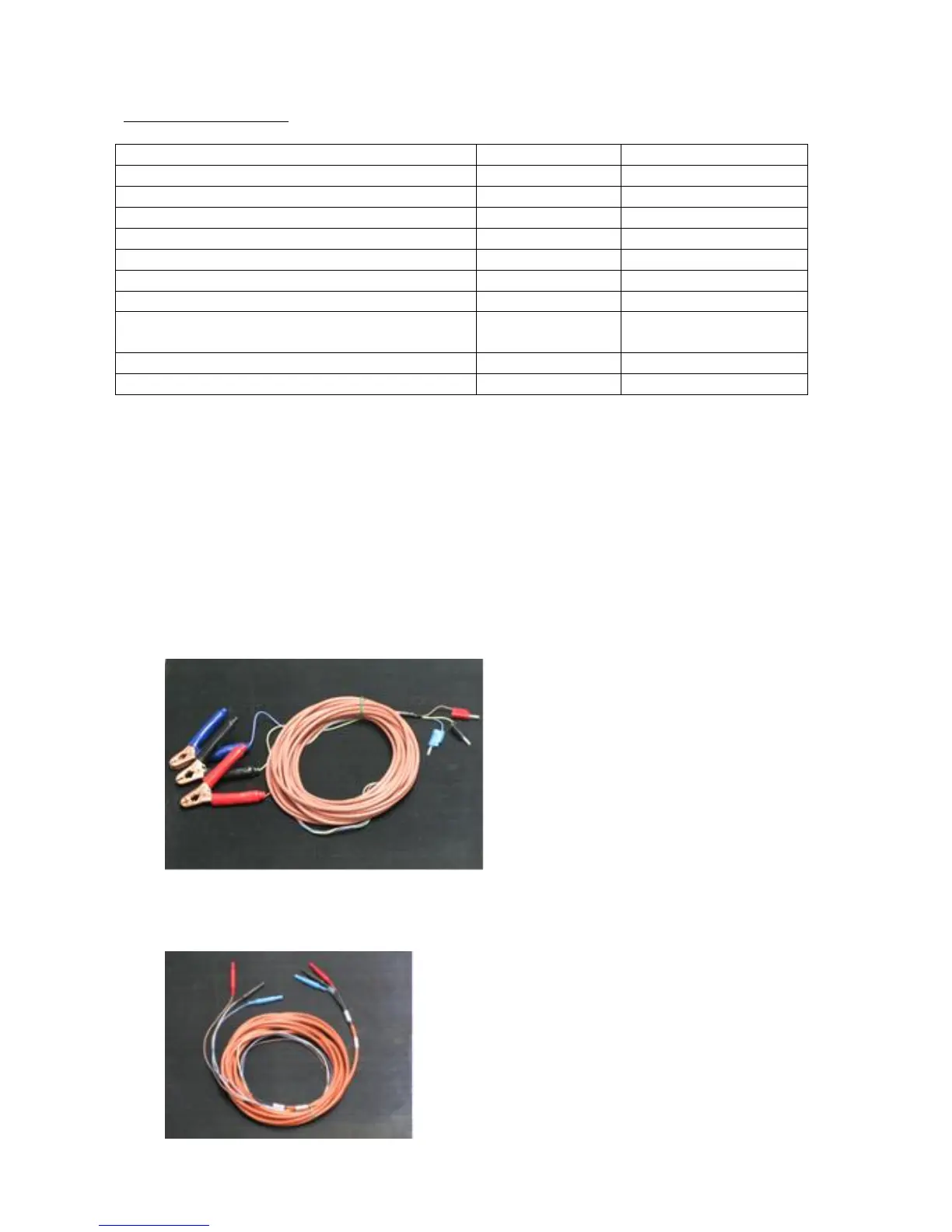

3.8 BASIC CONNECTION CABLES SET; OPTION PII15169
The basic connection cables set includes:
1. Three cables with silicone isolator for the connection to the main contacts, each of three
conductors. Cable length: 16 m; cross section 1 sq. mm. Terminated on the CBA2000 side
with safety banana sockets, with colors: black, red, blue, and on the CB side with three
clamps, with the same colors.
2. Two cables with silicone isolator for the connection to the auxiliary contacts, each of three
conductors. Cable length: 6 m; cross section 1 sq. mm; terminated with safety banana
sockets, with colors: black, red, blue.
