Doc. SIE10169 Rev. 13 Page 20 of 32

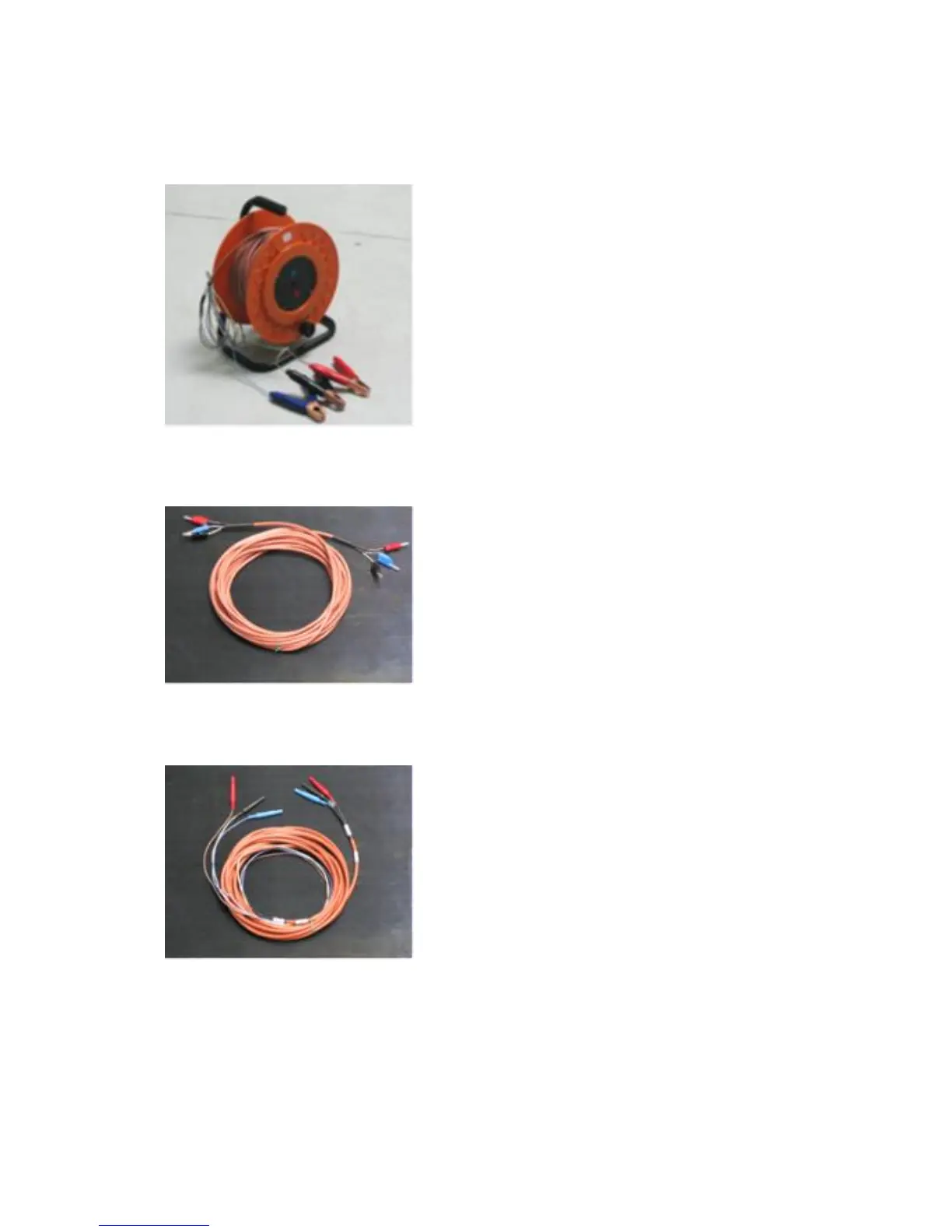

1. Six cables with silicone isolation, 38 m long, cross section 1.5 sq. mm , for the connection
to main contacts, each of three conductors. Each cable is mounted on a support wheel.
Terminated on the CBA2000 side with safety banana plugs, and on the CB side with three
clamps, with different colors.
2. Six cables with silicone isolation, 2 m long, cross section 1.5 sq. mm , for the connection
from CBA2000 to the above wheels.
3. Two cables with silicone isolator for the connection to the auxiliary contacts, each of three
conductors. Cable length: 10 m; cross section 1 sq. mm; terminated with safety banana
sockets, with colors: black, red, blue.
3.10 TRANSIT CASE.
The transit case allows delivering CBA2000 with no concern about shocks up to a fall of 1 m.
Protection degree: IP 65.
