Doc. SIE10169 Rev. 13 Page 18 of 32

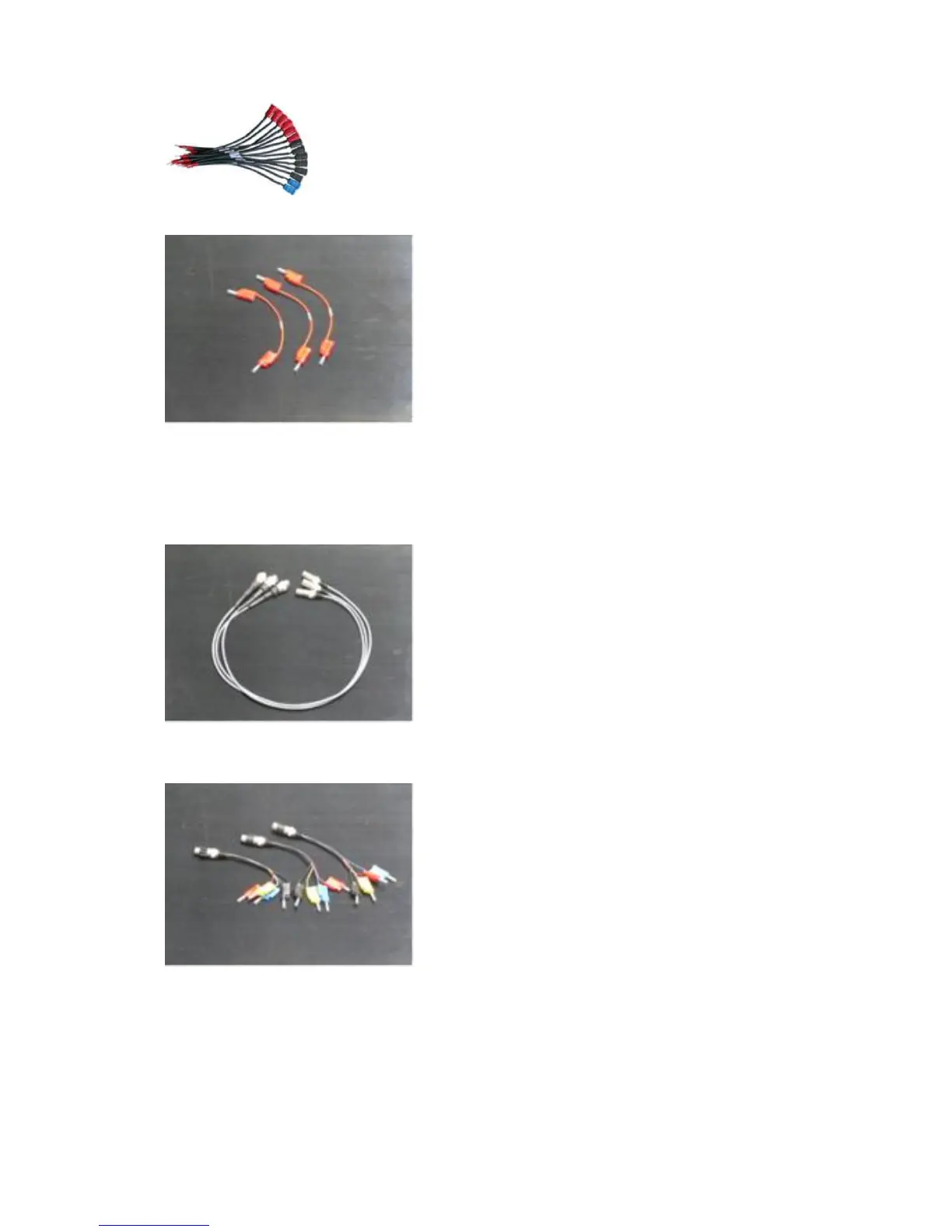

8. Eight short cables, to put in common the coils supply.
9. A cable for the MTC option.
10. Three cables for the connection to analog transducers. Length: 1 m; terminated with a 10-
way connector on the CBA2000 side, and with a three-way connector on the transducer
side.
11. Three adapters for the connection to analog transducers. Length: 1 m; terminated with a
three-way connector on one side, and with four banana plugs on the other side.
12. Three 10-way cables for the connection to digital transducers. Length 1 m; terminated
with a 10-way connector on the CBA2000 side, and with seven banana sockets on the other
side.
