FIRST STEPS
User’s Manual WM3M4 &WM3M4C
9

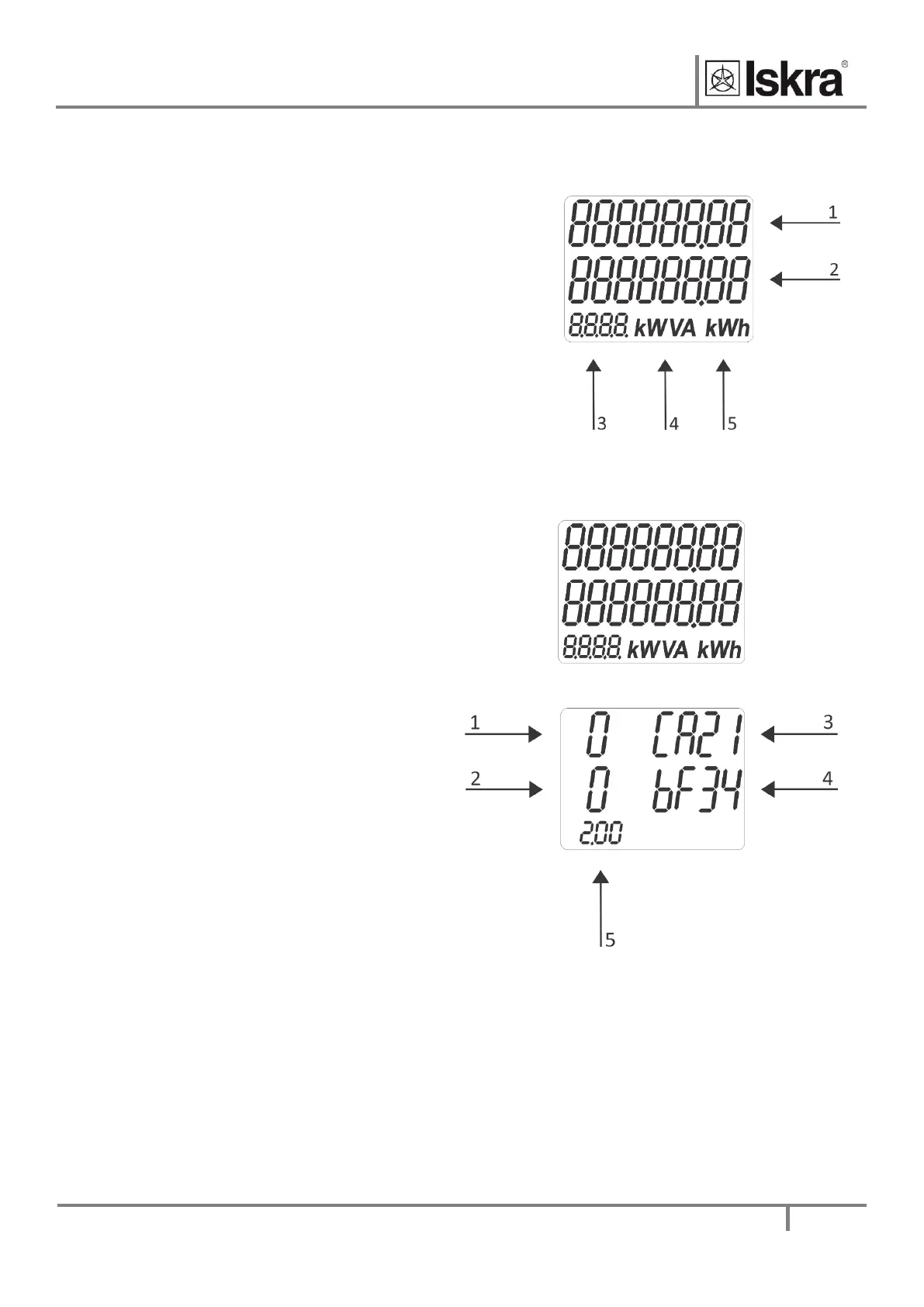

3.1 Display of device info
Energy meters have LCD display with following layout.
Layout of LCD:
1 Total kWh inport
2 User settable line
3 4 digit label
4 kWVA display
5 kWh display
Figure 5: Layout of LCD
3.2 Welcome screens
LCD segment test
Figure 6: LCD segment test
FW identification window
and MID relevant counters:
1 MID unlock counter
2 FW upgrade counter
3 CRC of main FW
4 CRC of measuring
modules FW
5 FW version
Figure 7: FW identification window and MID relevant counters
