Iskra WM3M4 - LCD Display Information

FIRST STEPS
10
User’s Manual WM3M4 &WM3M4C

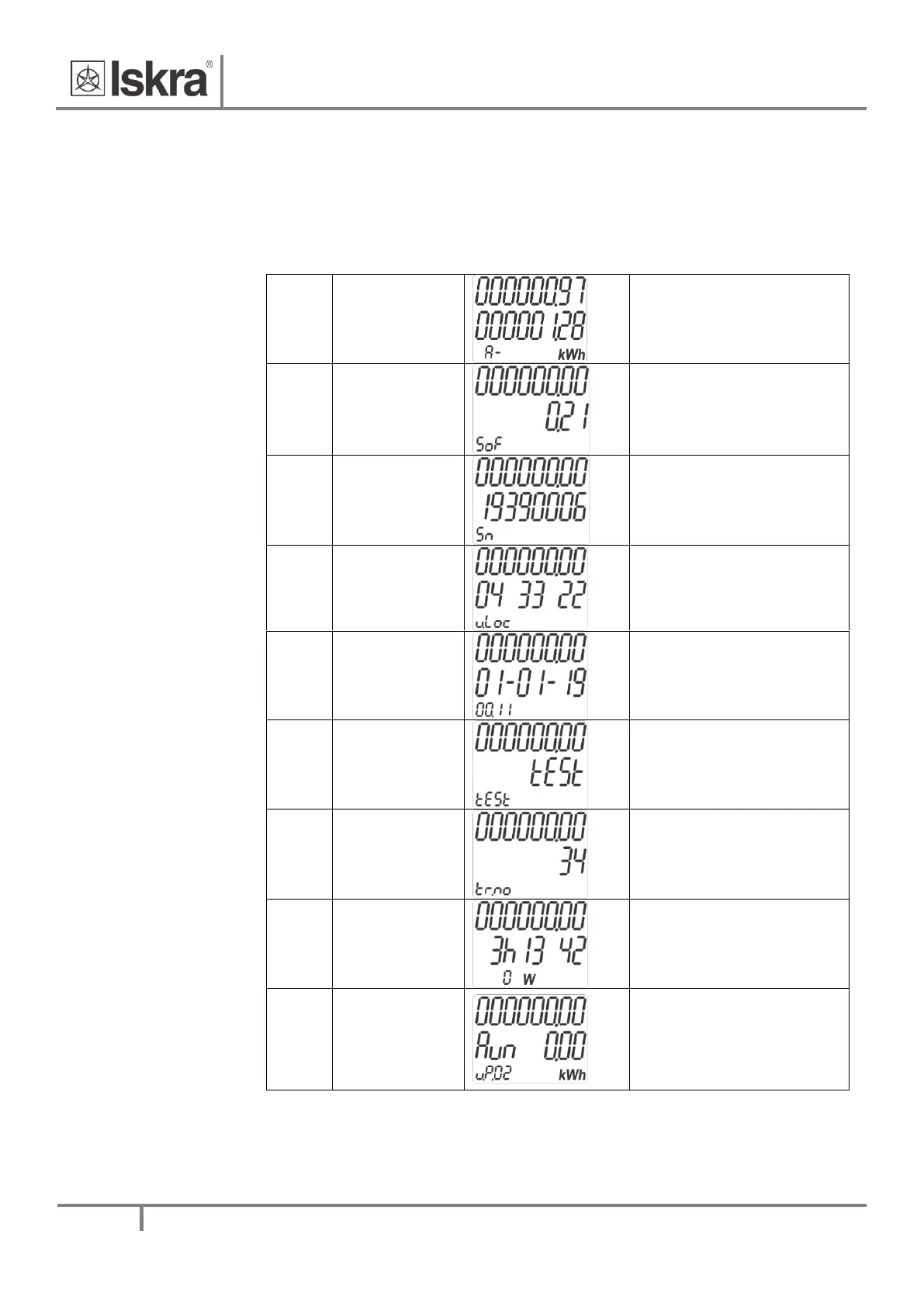

3.3 LCD Display information
LCD Display has 2 rows with 8 digits each and 4 digit label. Display scrolls automatically. Displayed
quantities and scroll time can be set via communication by MiQen software. Top row always displays
imported active energy consumption.
Row 2 is configurable to display following values:
BIT 8
Export active
energy counter
Status:
A-
BIT 7
SW version
Status LCD:
SoF
BIT 6
Serial number
Status LCD:
Sn
BIT 5
Time
Status LCD:
1
st
digit: Clock status (see Table 5)
Digits 2-4 options:
 Loc (Local time), or
 Utc (UTC time)
BIT 4
Date
Status LCD:
hh.mm
(time - e.g.: 00 (hour).11 (minutes))
BIT 3
Custom String
Status LCD:
LCD Custom string label (see Table 3);
Available characters (see chapter 3.3.2)
BIT 2
Transaction
number
Status LCD:
tr.no
BIT 1
Duration
Status LCD:
Charging power (e.g.: 3h 13min 42s)
BIT 0
Energy
consumption
Status LCD:
1
st
digit: Clock status (see Table 5)
2
nd
digit: Charging status (see Table 6)
3
rd
digit: Reserved
4
th
digit: Reserved
Table 1: LCD ROW2 Configuration
