Iso-Tech IPS 4303S User Manual

OPERATION
31

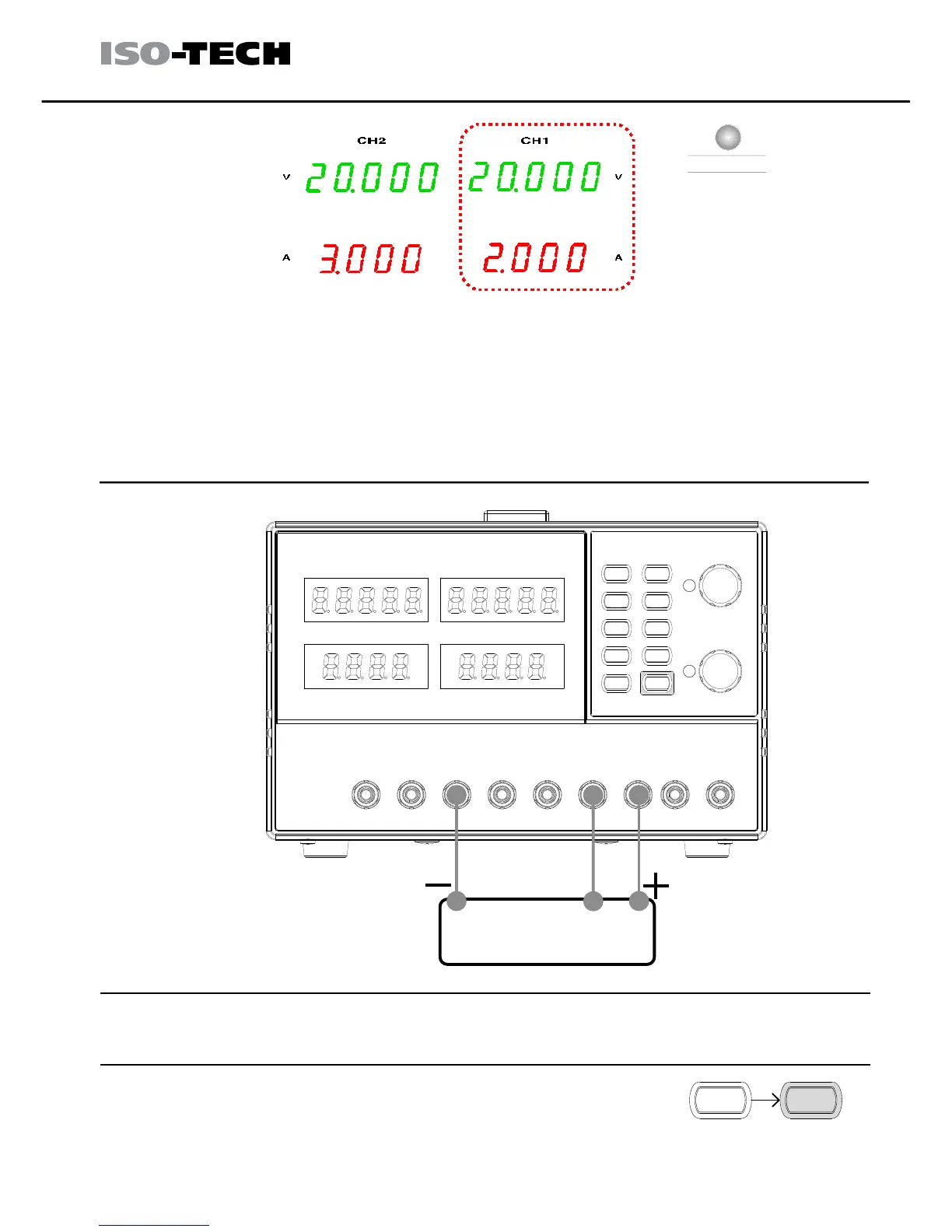

C.V. C.C. PAR. C.V. C.C.
CH2
CH1
Voltage level
Double the reading on the CH1 Voltage meter. In the
above case, the actual output is 20.0 x 2 = 40.0V.
Current level
CH1 meter reading shows the output Current. In the
above case, 2.000A. (CH2 Current control must be
in the Maximum position=3.0A).
Tracking series with common terminal
Connection
V
A
V
A
CH4 CH2 GND CH3CH1
LOAD
COM
Output rating
0 to 30V / 0 to 3A for CH1 to COM
0 to –30V / 0 to 3A for CH2 to COM
1. Press the SER/INDEP key to activate the
tracking series mode. The key LED turns on.
/INDEP
SER
/INDEP
SER
