IPS X303 Series Instruction Manual
32

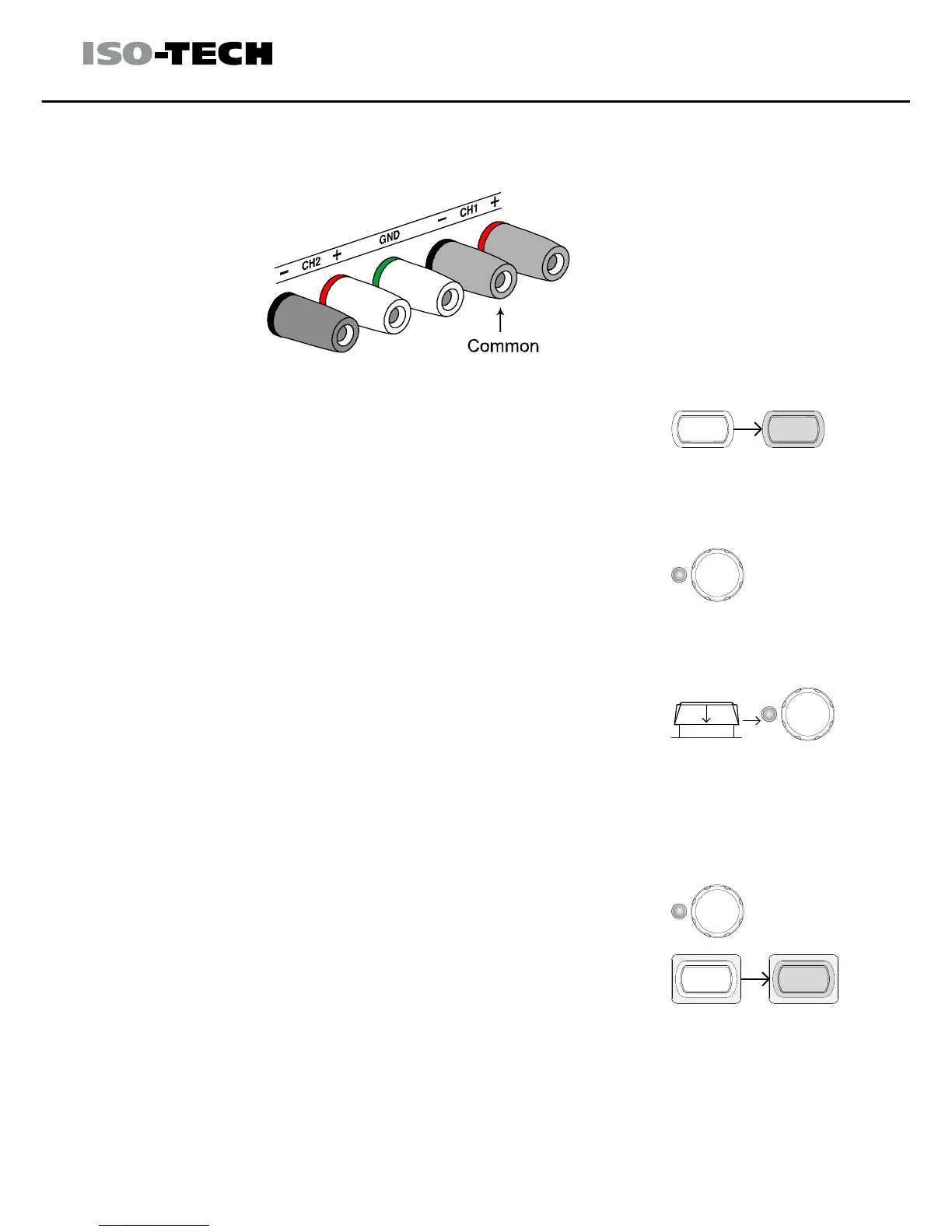

2. Connect the load to the front panel terminals, CH1+ & CH2−. Use the
CH1 (−) terminal as the common line connection.
Note: this diagram shows non-European terminals.
3. Press the CH1 key (LED turns on) and use the
Voltage knob to set the master & slave output
voltage (the same level for both channels).
By default, the Voltage and Current knob work
in the coarse mode. To activate the fine mode,
press the knob to turn the FINE LED on.
BEEP
CH2/4
BEEP
CH2/4
(master & slave)
COARSE/FINE
FINE
Push
CURRENT
(Fine control)
COARSE/FINE
FINE
Push
CURRENT
 Coarse: 0.1V or 0.1A for each step
 Fine: 1mV or 1mA for each step
4. Use the Current knob to set the master output
current.
COARSE/FINE
FINE
VOLTAGE
Push
5. To turn on the output (and LED), press the
output key.
OUTPUT
OUTPUT
6. For the master (CH1) output level and CV/CC status, refer to the CH1
meter and indicator.
