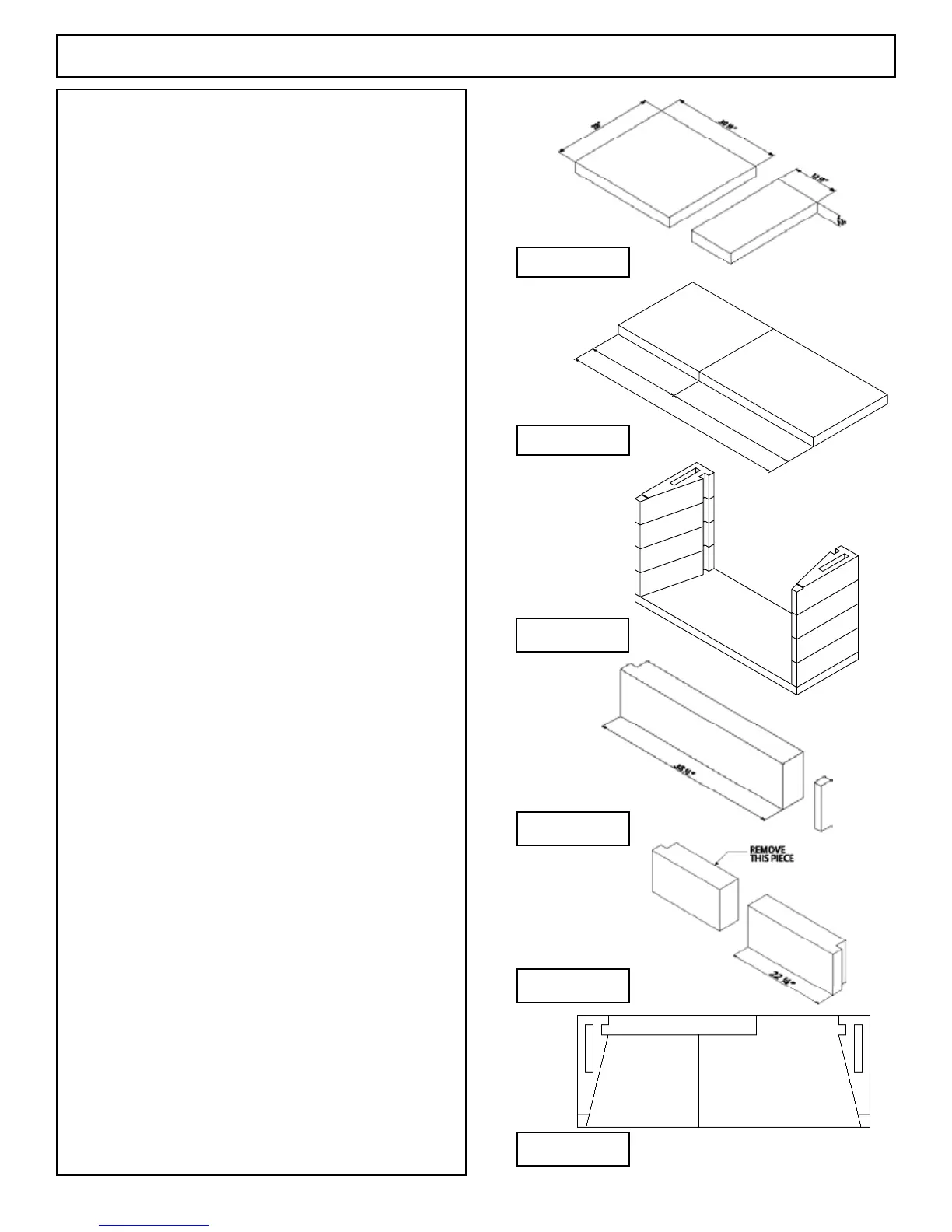

Isokern Standard 36 - Flush Wall Finish Detail

Magnum Series
Isokern Standard
Series
Framing Protrudes
Past Firebox Front
Drywall Flush with
Firebox Front
8” Minimum
Noncombustible
Facing Material
To Span Framing
Members
21
Flush Wall Finish Detail
Fireplaces are designed to be installed so that the rough front face of the rebox and damper beam project into the room approximately
one-half inch (1/2”) beyond the face of the rough framing members that create the room’s wall surface. The Magnum smoke dome
front sits two and three-fourths inches (2-3/4”) back from the rough face of the rebox and damper beam. This set back dimension
allows for one and one-half inch (1-1/2”) framing plus one-half inch (1/2”) thick wall board to pass in front of the smoke dome and
at the same time align ush with the room face of the Magnum damper beam. Set in this position, framing and wall board are kept
to the required eight inches (8”) above the rebox opening top (Figure 26).
The Isokern Standard smoke dome front sits ush with the rough face of the rebox and damper beam. Eight inches (8”) of
noncombustible facing material must span framing members for drywall to keep the required eight inches (8”) above the rebox
opening top; It is after this noncombustible material that framing members can be placed as shown above. Eight inches (8”) on each
side of the rebox opening is also required to be covered in noncombustible material. (Figure 27)
Important: Do not build a frame wall in front of the Magnum or Isokern Standard rebox and damper beam. (Figure 28)
FIGURE 27
FIGURE 28
FIGURE 26
