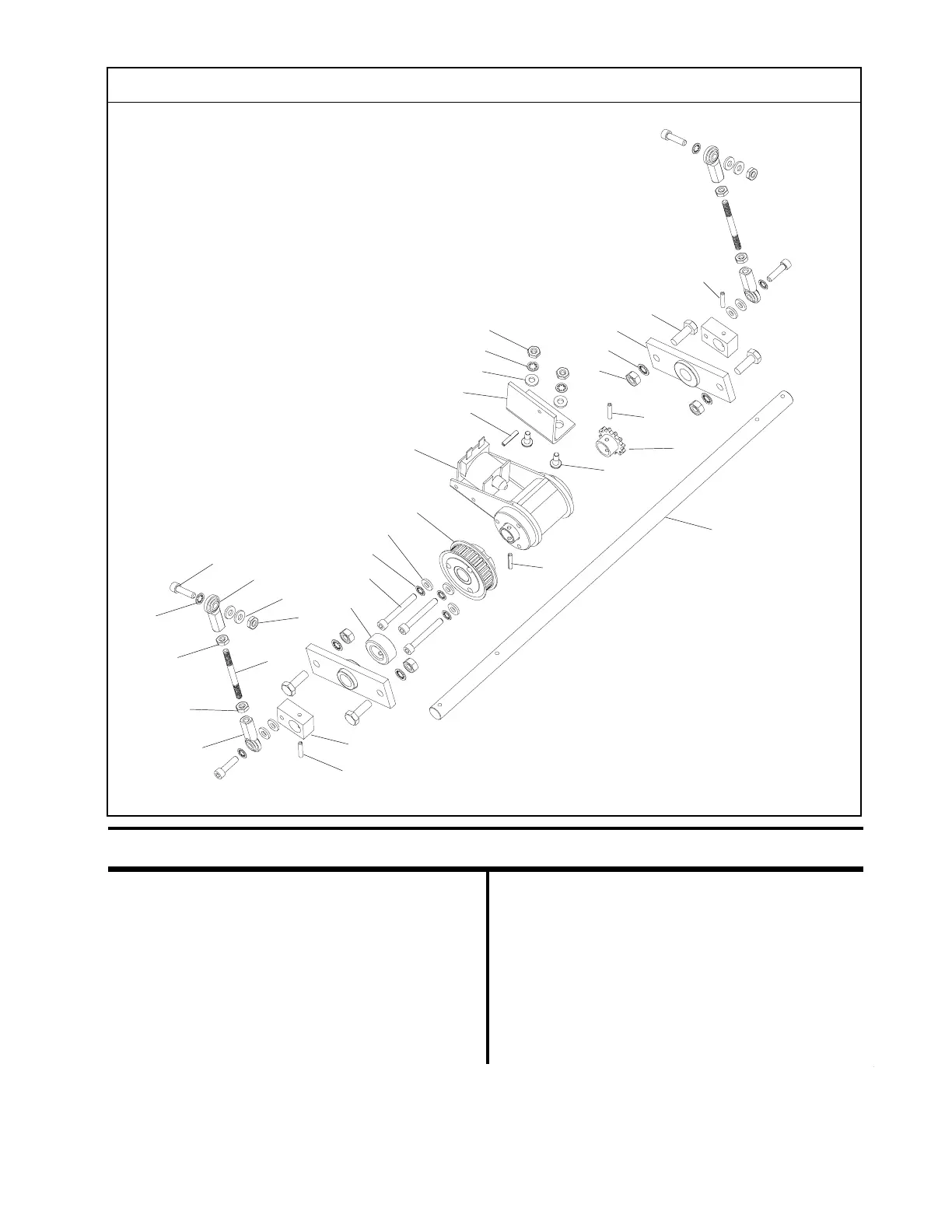

K N IFE S H A F T A S SEM B L Y
Index Part Part Name Number Index Part Part Name Number
1 RBM1036F Knife Connection Rod 2
2 RBM1040F Knife Drive Crank 2
3 CA9028A Roll Pin 1/8 x 11/16 5
4 RBM1222F RH Rod End 2
5 CB278 RH Nut 10-32 6
6 RBM1223F LH Rod End 2
7 RBM1263F LH Nut 10-32 2
8 CB651B Soc Hd Scr 10-32 x 3/4 4
9 CB988 Lockwasher #10 9
10 CB1262 Washer #10 13
11 RBM1480A Bearing Assy 2
1
2
3
5
10
4
9
5
8
6
7
9
19
18
3
15
3
21
16
14
13
20
9
10
5
12
11
(RBM1000H Scene 1)
22
17
12 CB487 Hex Hd Scr 1/4-20 x 3/4 4
13 RBM1519F Lockwasher 1/4 4
14 CB493 Nut 1/4-20 4
15 RBM1541F Knife Drive Shaft 1
16 RBM1227F Clutch (also item 52 page 32) 1
17 RBM1217F Sprocket-12T 1
18 RBM1206A Pulley Assy 1
19 CB651D Soc Hd Scr 10-32 x 1 1/4 3
20 RBM1597F Knife Clutch Bracket 1
21 RBM1324F Pan Hd Scr 10-32 x 1/2 2
22 RBM1657F 1Collar
3
3
10
25
To Next Page
