Stitch'n Fold

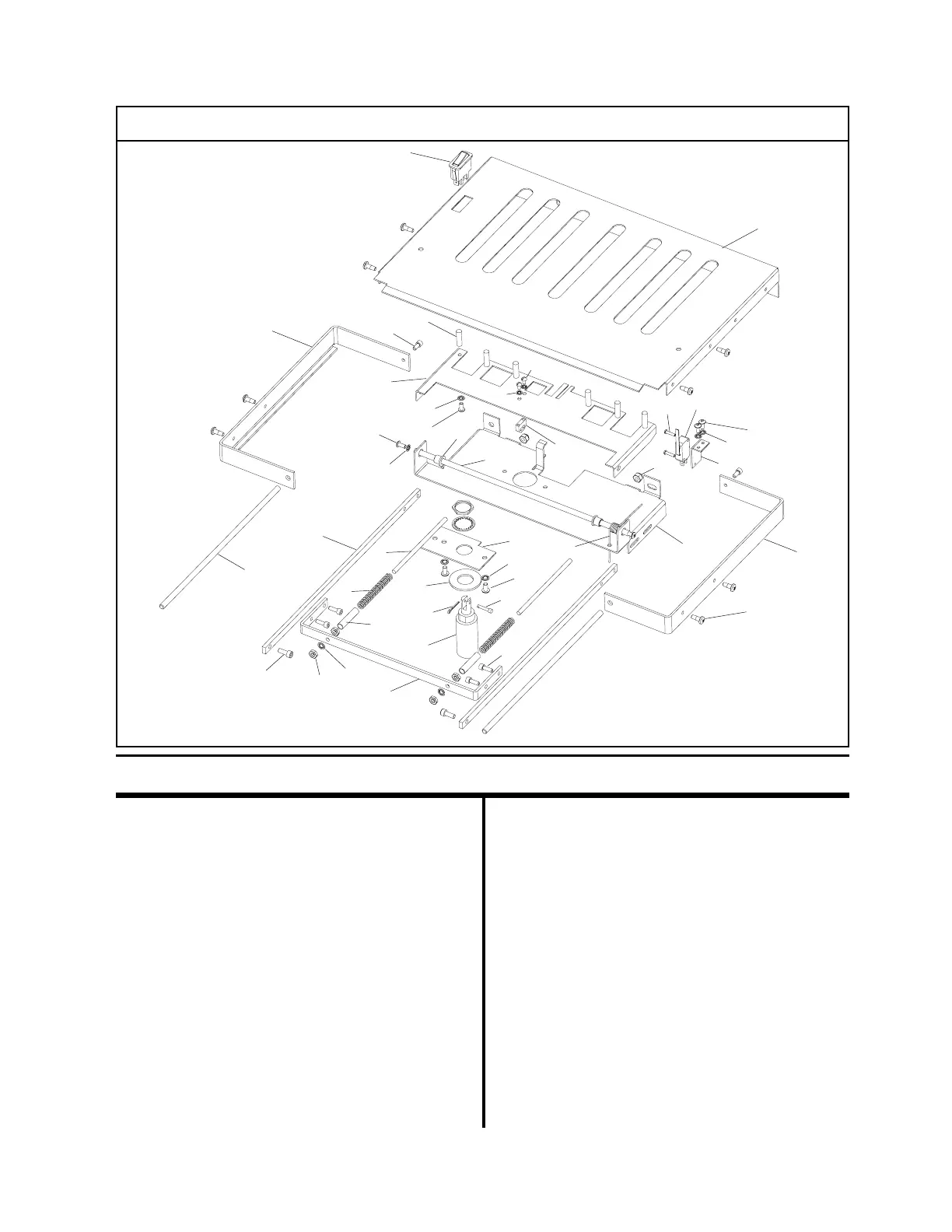

SEC O NDA R Y TABL E ASSEM B L Y
Index Part Part Name Number
Number Number Required
Index Part Part Name Number
Number Number Required
1 RBM1784F Stop Carriage 1
2 RBM1767 Paper Stop 6
3 RBM1588F Guide Rod 2
4 D30676F Soc Hd Cap Scr 8-32 x 3/8
5 RBM1786F Secondary Table 1
6 RBM1556F Adjusting Bar 2
7 RBM1664F Stud Bracket 1
8 RBM1765F Soc Hd Cap Scr 8-32 x 3/4
9 RBM1665F Adjusting Stud 2
10 CB860B Elastic Lock Nut 10-32
11 CB278 Nut 10-32 4
12 CB988 Lockwasher #10 4
13 RBM1305F Spring 2
14 RBM1766F Stop Platform 1
15 RBM1785F Gate Shaft 1
16 RBM1518F Torsion Spring 1
17 RBM1506F Switch Bracket 1
18 CB112 Round Hd Scr 8-32 x 5/16
19 CB988A Lockwasher #8 8
20 RBM1310C Microswitch 1
(also item 31 page 32)
1
2
3
5
6
7
8
16
9
13
33
27
26
25
32
12
11
12
10
14
15
4
21
18
19
17
20
22
23
24
35
29
30
31
34
28
19
34
36
19
37
(RBM1000K Scene 1)
21 RBM1327F Rd Hd Scr 4-40 x 1/2 2
22 RBM1560F U-Bracket LH 1
23 RBM1561F U-Bracket RH 1
24 RBM1324F Pan Hd Scr 10-32 x 1/2
25 RBM1567F Solenoid (also page 30)
26 CE17 Washer 1
27 RBM1507F Back Up Plate 1
28 CB651F Soc Hd Cap Scr 10-32 x 3/8
(screws connect item 6 to items 44 & 45 page 20)
29 RBM1272F Solenoid Pivot Bracket
30 CB287 Rd Hd Scr 6-32 x 3/16
31 CK50 Lockwasher #6 2
32 RBM1720F Pin 1
33 RBM1685F Spacer 2
34 CG26N Button Hd Scr 8-32 x 3/8
35 CG26 Button Hd Scr 10-32 x 3/8
36 RBM1249F Plastic Bearing 2
37 CB285R2 Fold On/O Sw 1
(also item 54 page 32)
38 CB451 Cotter Pin 1
38
2
4
2
2
8
1
2
1
2
8
2
28
To Next Page
