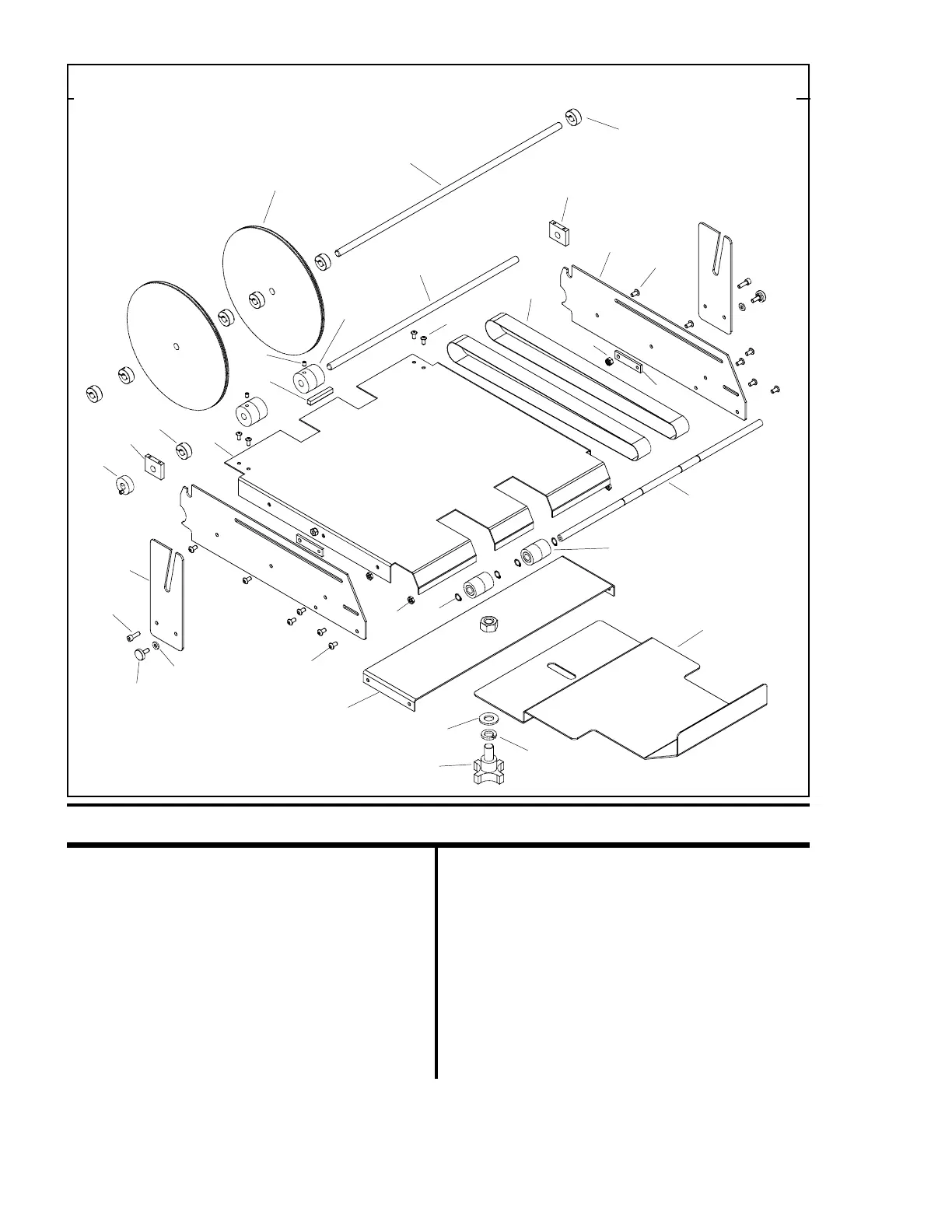

D E L I V E R Y T A B L E A S S E M B L Y
Index Part Part Name Number Index Part Part Name Number
1 RBM1841F Conveyor Table 1
2 RBM1838F Conveyor Bracket 2
3 CG26 Screw, 10-32 x .75 Button Hd. 12
4 CB278 Nut, 10-32 Hex. 10
5 RBM1839A Delivery Tray Bracket 1
6 CG26N Screw, 8-32 x .75 Button Hd. 4
7 RBM1821F Bearing 2
8 RBM1572F Idler Shaft 1
9 RBM1073A Pulley Assy. 2
10 CB837B Retaining Ring, ø.375 4
11 RBM1827F Conveyor Drive Shaft 1
12 RBM1826A Index Collar Assy. 1
13 RBM1312F Split Collar 7
14 RBM1072F Pulley 2
15 D22872F Screw, 10-31 x .25 Set 2
16 RBM1846F Conveyor Belt 2
17 RBM1840F Delivery Tray 1
18 RBM1438A Stud Assy. 1
19 CB734 Lockwasher, ø.500 1
20 RBM1630F Washer 1
21 RBM1842F Conveyor Wheel Bracket 2
22 RBM1828F Nut Bar 2
23 CGG44C Thumb Screw Assy. 2
24 CB1262 Washer 2
25 CB154 Screw, 10-32 x .625 Soc. Hd. 2
2
6 CB860B Nut, 10-32 Elastic Stop 2
27 RBM1835A Conveyor Wheel Assy. 2
28 RBM1837F Conveyor Wheel Shaft 1
29 RBM1888A Stop Block Assy. 1
13
28
27
11
2
16
14
15
26
22
8
9
6
1
13
7
12
21
25
24
23
3
4
10
5
20
18
19
17
7
3
(RBM1841A Scene 3)
29
29
To Next Page
