iSP DeLuxe Stitcher B3000 - Page 30

30
Stitch'n Fold
Index Part Part Name Number
Number Number Required
Index Part Part Name Number
Number Number Required
1 RBM1773F Fold Stop Cage 1
2 CG44C Thumb Screw 2
3 CB278 Nut 10-32 4
1
4
3
6
5
4 CG26A Button Hd Scr 2
5 CB1262 Washer #10 2
6 CB988 Lockwasher #10 2
2
3
SK887

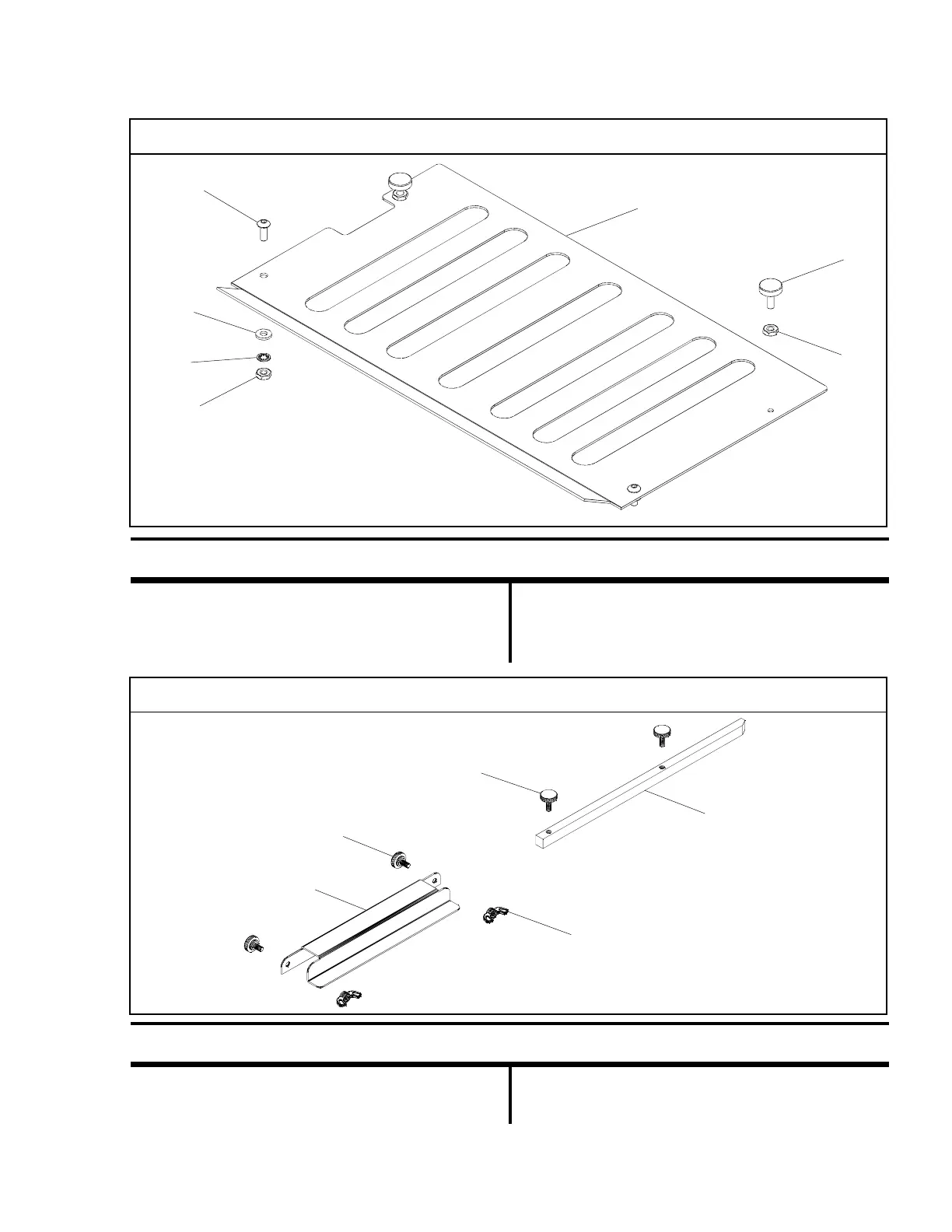

FOLD STOP C AGE ASSEM B L Y
Index Part Part Name Number
Number Number Required
Index Part Part Name Number
Number Number Required
1 RBM1745F Corner Stitch Guide 1
2 CGG44B Thumb Screw 10-32 x 3/8
3 RBM1702F Wing Nut 10-32 2
4 RBM1322F Corner Stitch Bar 1
5 CGG44 Thumb Screw 10-32 x 5/8
1
4
3
5
SK888
C O RNE R STITCH PAR T S
2
2
2
30
