iSP DeLuxe Stitcher B3000 - Page 31

Stitch'n Fold

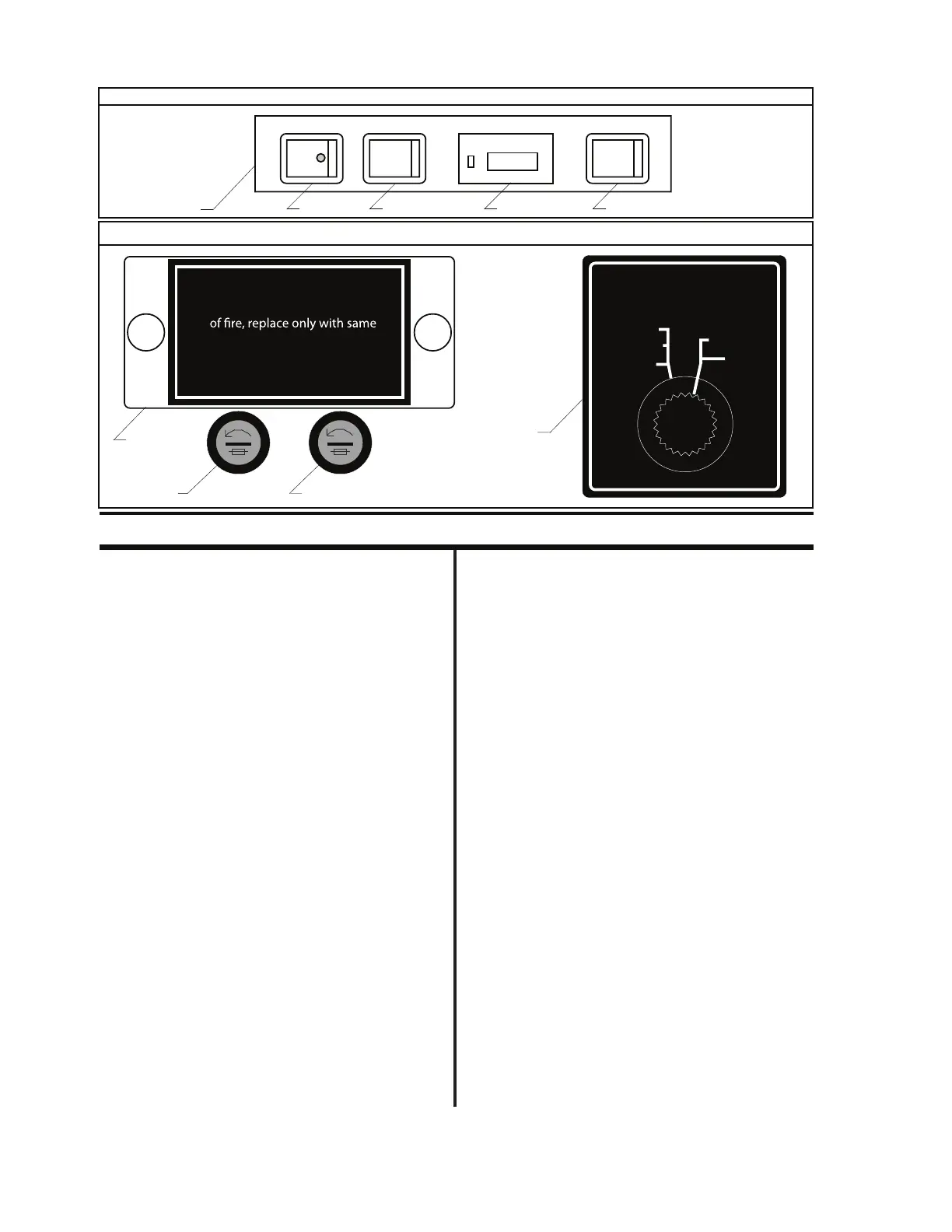

M A I N C O N T R O L P A N E L
Index Part Part Name Number
Number Number Required
Index Part Part Name Number
Number Number Required
1 RBM1672F Main Control Panel Decal 1
2 RBM1573F Bracket 1
3 RBM1324F Pan Hd Scr 10-32 x 1/2 2
4 RBM1714F Green Ilum. Momentary Switch 1
5 CG136 Red Momentary Switch 1
6 RBM1445F Counter 1
7 CG138 Black Selector Switch 1
8 RBM1671A Fuse Holder Decal 1
RBM1324F Pan Hd Scr 10-32 x 1/2
9 RBM1619F Fuse Holder Body 2
10 RBM1620F Fuse Holder Carrier 2
11 RBM1352F Main Fuse 10A 1
12 RBM1350F DC Fuse .4A 1
13 RBM1418F Timer Potentiometer 1
14 RBM1611F Potentiometer Bracket 1
15 RBM1324F Pan Hd Scr 10-32 x 1/2 2
16 RBM1419F Potentiometer Knob 1
17 RBM1695F Gate Timer Decal 1
18* RBM1353F Power Cord 1
19* RBM1668F Power Cord Bracket 1
20* RBM1323F Pan Hd Scr 8-32 x 1/2 2
21* RBM1495F Power Inlet 1
22* CB808 Flat Hd Scr
5-40 x 3/8 2
23* D27398F Elastic Stop Nut 2
24* RBM1240F Terminal Block 1
25* D32127F Rd Hd Scr 6-32 x 3/4 4
26* CB720 Nut 6-32 4
27* CB1070B Green Ground Screw 1
28* RBM1711F Ground Label 1
29* RBM1201F Motor 1
30* RBM1225F Microswitch (3LS) 1
31* RBM1310F Microswitch (4LS, 5LS) 1
32* RBM1277F Interlock Switch (1LS, 2LS) 2
33* RBM1328F Rd Hd Scr 4-40 x 3/4 4
34* CG13 Nut 4-40 4
F U SES & T I M E R POT E N T I O M E T E R
1, 2, 3 75 6
* Not shown; see Schematic.
ON OFF
COUNTS
ON STITCH OFF
POWER
4
8
13, 14, 15, 16, 17
GATE TIMER
11 x 17
A3
8.5 x 11
5.5 x 8.5
A4, A5
PAPER SIZE:
MAIN DC
CAUTION:
For continued protection against
risk
type and rating of fuse.
10A 250V
.4A 250 V
9, 10, 11 9, 10, 12
35* RBM1428F Rubber Grommet 6
36* RBM1640F Relay Bracket 1
37* RBM1324F Pan Hd Scr 10-32 x 1/2 2
38* CB2454 Power Relay (1CR) 1
39* CB287E Rd Hd Scr 6-32 x 1/2 4
40* CB720 Nut 6-32 4
41* RBM1416F Timer - Single Shot 1
42* RBM1817F Cable Tie 1
43* RBM1417F Timer Socket 1
44* D32127F Rd Hd Scr 6-32 x 3/4
2
45* CB720 Nut 2
46* RBM1501A Transformer 1
47* RBM1323F Pan Hd Scr 8-32 x 1/2 2
48* RBM1298F Bridge Recti
er 1
49* RBM1334F Pan Hd Scr 10-32 x 3/4
1
50* RBM1234F Stitch Gate Solenoid 1
51* RBM1567F Fold Solenoid 1
52* RBM1227F Clutch (Fold) 1
53* RBM1443F Quencharc (QA) 1
54* CB285R2 Fold
1
55* RBM1748F Clutch (Stitch) (Standard) 1
RBM1792F Clutch (Stitch) (Hi-Torque) 1
56* RBM1880A Wiring Harness 1
57* RBM1742F Cap (corner/side stitch socket) 1
58* RBM1747F Socket (for RBM1742F) 4
59* CG15B Microswitch (6LS) 1
60* RBM1371F Solenoid, Jog & Side Stitch
2
61* RBM1746F Microswitch (7LS) 1
62* RBM1875F Time Delay Module (2TR) 1
63* RBM1496F Capacitor 1
64* RBM1877F Resistor 1
65* RBM1878F Recti
er 1
66* RBM1879F Terminal Block 1
67* RBM1338F Cable Tie 1
68* RBM1882F Cable Tie Holder 1
31
PG10410
2
31
1 RBM1712F Main Control Panel Decal 1
2 RBM1713F Bracket 1
3 RBM1324F Pan Hd Scr 10-32 x 1/2 2
4 RBM1714F Green Ilum. Momentary Switch 1
5 CG136 Red Rocker Switch (non-CE) 1
RBM1491F Emergency Stop (CE only) 1
RBM1492F Contact Block (CE only) 1
6 RBM1445F Counter 1
7 CG138 Black Selector Switch 1
8 RBM1726A Fuse Holder Decal 1
RBM1324F Pan Hd Scr 10-32 x 1/2 2
9 RBM1619F Fuse Holder Body 2
10 RBM1618F Fuse Holder Carrier 2
11 RBM1352F Main Fuse 10A 1
12 RBM1350F DC Fuse .4A 1
13 RBM1418F Timer Potentiometer 1
14 RBM1611F Potentiometer Bracket 1
15 RBM1324F Pan Hd Scr 10-32 x 1/2 2
16 RBM1419F Potentiometer Knob 1
17 RBM1695F Gate Timer Decal 1
18* RBM1354F Power Cord 1
19* RBM1668F Power Cord Bracket 1
20* RBM1323F Pan Hd Scr 8-32 x 1/2 2
21* RBM1495F Power Inlet 1
22* CB808 Flat Hd Scr 5-40 x 3/8 2
23* D27398F Elastic Stop Nut 2
24* RBM1240F Terminal Block 1
25* D32127F Rd Hd Scr 6-32 x 3/4 4
26* CB720 Nut 6-32 4
27* CB1070B Green Ground Screw 1
28* RBM1711F Ground Label 1
29* RBM1494F Line Filter (CE only) 1
30* RBM1225F Microswitch (3LS) 1
31* RBM1310F Microswitch (4LS, 5LS) 2
32* RBM1277F Interlock Switch (1LS, 2LS) 2
33* RBM1328F Rd Hd Scr 4-40 x 3/4 4
34* CG13 Nut 4-40 4
35* RBM1428F Rubber Grommet 6
36* RBM1640F Relay Bracket 1
37* RBM1324F Pan Hd Scr 10-32 x 1/2 2
38* RBM1355F Power Relay (1CR) 1
39* CB287E Rd Hd Scr 6-32 x 1/2 4
40* CB720 Nut 6-32 4
41* RBM1416F Timer - Single Shot 1
42* RBM1817F Cable Tie 1
43* RBM1417F Timer Socket 1
44* D32127F Rd Hd Scr 6-32 x 3/4 2
45* CB720 Nut 2
46* RBM1501A Transformer 1
47* RBM1323F Pan Hd Scr 8-32 x 1/2 2
48* RBM1298F Rectier 1
49* RBM1324F Pan Hd Scr 10-32 x 1/2 1
50* RBM1234F Stitch Gate Solenoid 1
51* RBM1567F Fold Solenoid 1
52* RBM1227F Clutch (Fold) 1
53* RBM1443F Quencharc (QA) 1
54* CB285R2 Fold On/O󰀨 Switch 1
55* RBM1748F Clutch (Stitch) (Standard) 1
RBM1792F Clutch (Stitch) (Hi-Torque) 1
56* RBM1880A Wiring Harness 1
57* RBM1742F Cap (corner/side stitch socket) 1
58* RBM1747F Socket (for RBM1742F) 4
59* RBM1347F Motor (230V, 50Hz) 1
RBM1811F Motor (230V, 60Hz) 1
60* CG15B Microswitch (6LS) 1
61* RBM1371F Solenoid, Jog & Side Stitch 2
62* RBM1746F Microswitch (7LS) 1
63* RBM1875F Time Delay Module (2TR) 1
64* RBM1496F Capacitor 1
65* RBM1877F Resistor 1
66* RBM1878F Rectier 1
67* RBM1879F Terminal Block 1
68* RBM1338F Cable Tie 1
69* RBM1882F Cable Tie Holder 1
* Not shown; see Schematic.
