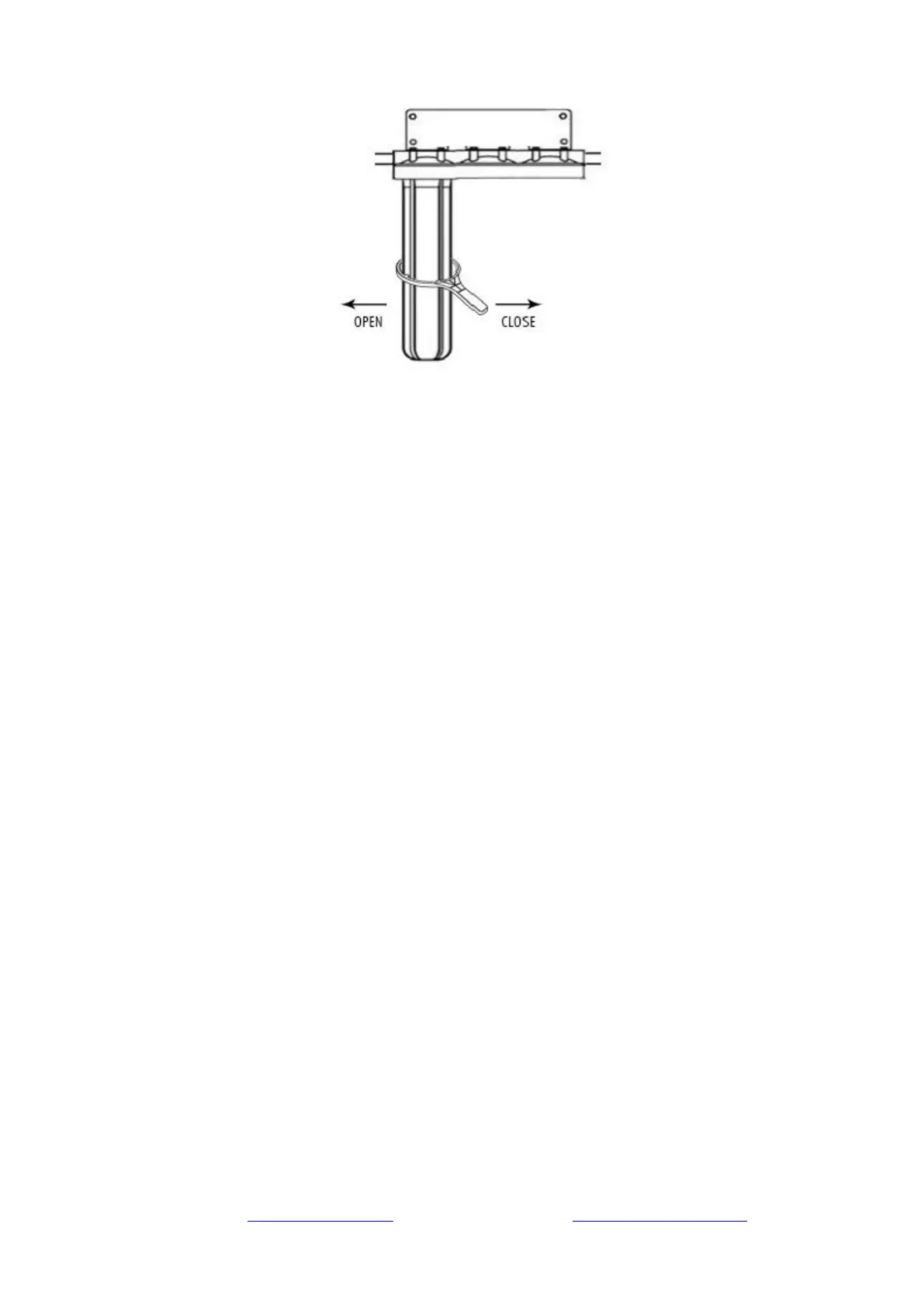

Figure 12. How to Use the Housing Wrench
To replace the RO membrane, turn off the inline water supply, drain the remaining water in
the system. The membrane housing comes with 1 cap on each end, and membrane can be
replaced from either end thus only one cap is needed to be removed. Remove the tubing on
the quick fittings of the side to be taken off, loosen the M8 screw that locks the cap then
pull the membrane cap out. Pull out the old membrnae with a pair of pliers, insert new
membrane. Replace the cap, make sure the orings are in place and fasten the M8 screw.
Instert the tubing back to the quick connecting fittings.
Please be advised that the system needs to be running for at least 30 minutes after any filter
is changed before the water can be consumed.
3). Recommendations and Tips
All 4 Omni wheels come with a brake and leveling system. Simply press the brake down to
apply the brake and lift the brake to release and move the system with ease. The height of
the Omni wheels can be adjusted by a wrench to keep the system level.
Pressure gauges are connected to the outlet of the 1
st
and 3
rd
stages. If the difference
between the 2 gauges is greater than 5 psi, there are contaminates blocking the filters. The
first 3 filters should be replaced as soon as possible to ensure maximum performance.
If the inline water pressure is less than 70 psi, or the ambient temperature is below 60°F, use
the optional booster pump (Model number PMP1000) to ensure optimal performance.
