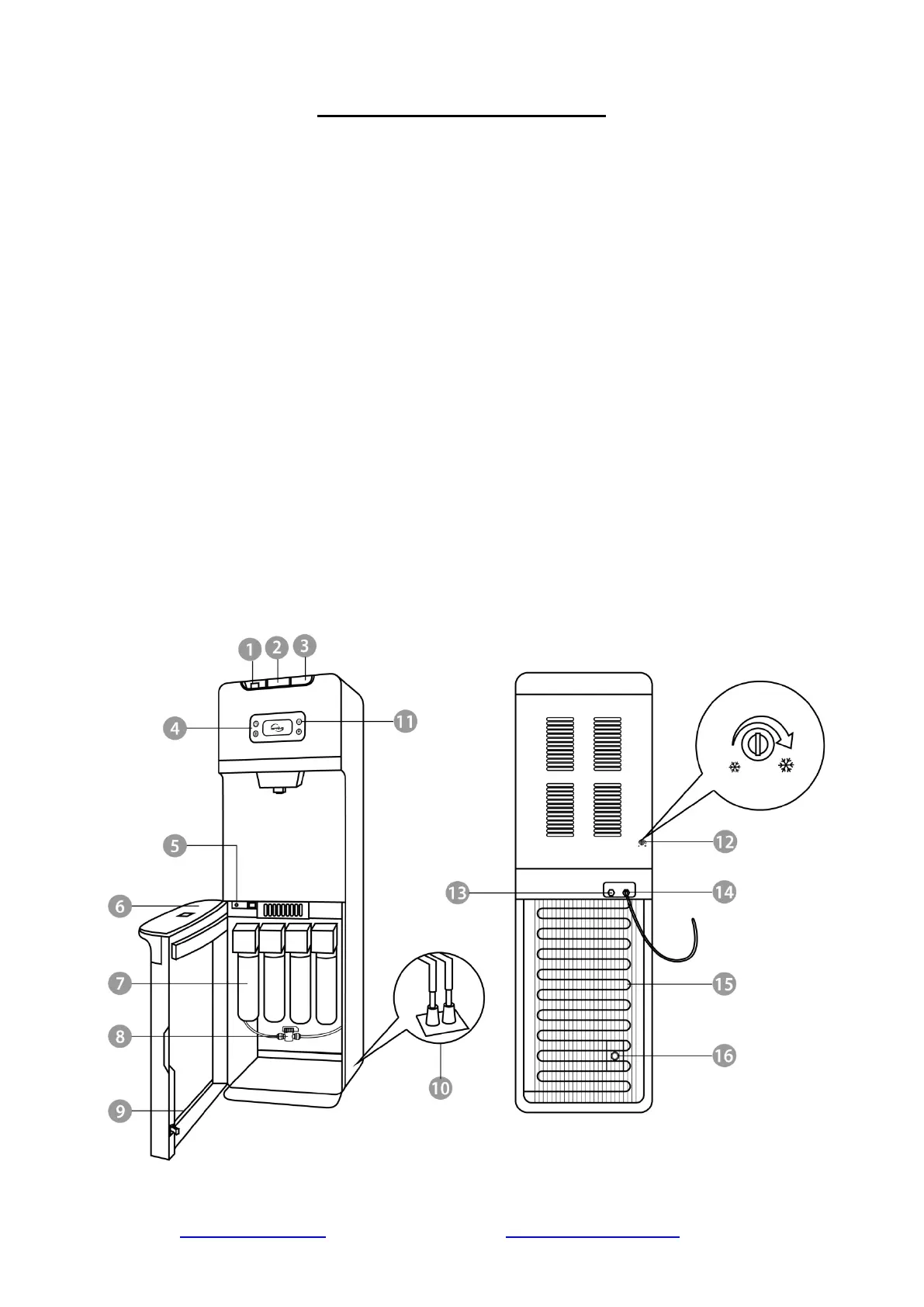

System Parts Identification
1. Hot Water Push Button (with Child Safety Lock)
2. Room Temperature Water Push Button
3. Cold Water Push Button
4. LED (Ready-to-Dispense Indicator Lights)
• Red = Hot Water
• Yellow = Water Levels
• Blue = Cold Water
5. Door Switch (Controls System Operation)
6. Removable Drip Tray & Grill
7. Filters (1
st
stage → 4
th
stage: left → right)
8. Inline Ball Valve (ABV1K)
9. Lower Front Door
NOTE: Door must always be closed for proper operation
10. Leak-detect Sensor
11. Hot Water Switch (red)
12. Adjustable Cold Water Control
13. Drain Line Valve & Cap
14. Power Cord
15. Condenser Coil
16. Water Inlet
www.123filter.com | (678) 261-7611 | support@123filter.com Page 6
