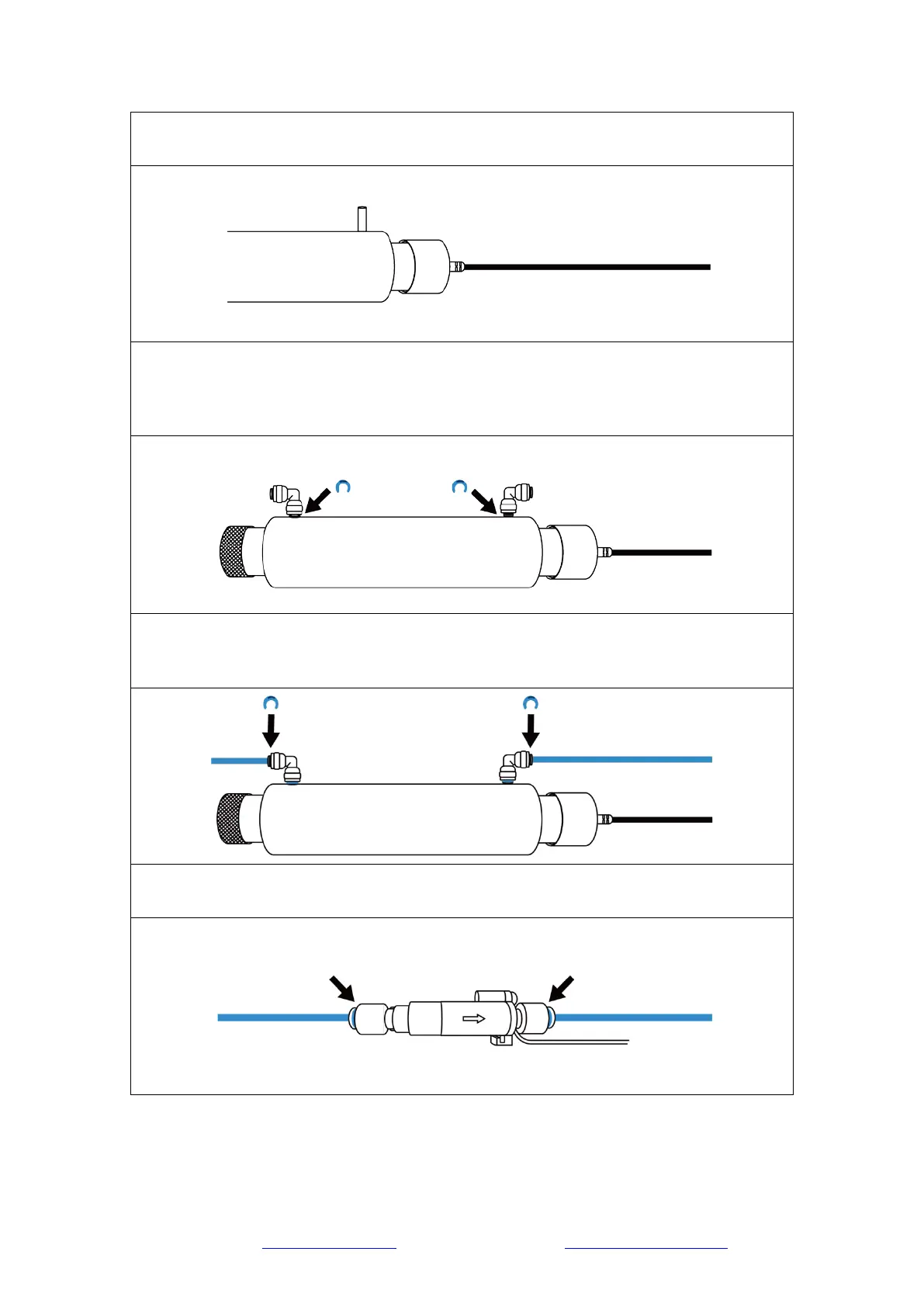

Step 10. Carefully insert the UV lamp and the blue cable all the way down into the reactor
chamber. Install the black cover cap attached to the ballast onto the open end nut.
Step 11. Install the elbow fittings onto the water inlet and outlet of the reactor chamber: 1)
remove one clip from each of the fittings; 2) push the end of the fitting all the way down into
the reactor chamber; and 3) re-
install the blue clips onto the fittings to secure the
connections. Be sure to push the clips all the way down.
Step 12. Install 1/4'' tubings (not included) onto both elbow fittings: 1) remove clips from the
fittings; 2) push tubing all the way (about half an inch) into the fittings; 3) re-install the clips
onto the fittings to secure the connections by pushing them all the way down.
Step 13. Install the flow sensor onto the inlet tubing of the unit. Follow the flow direction on
the flow sensor. Be sure to install the blue clips to secure the connection.
