Isuzu 2008MY N Series User Manual

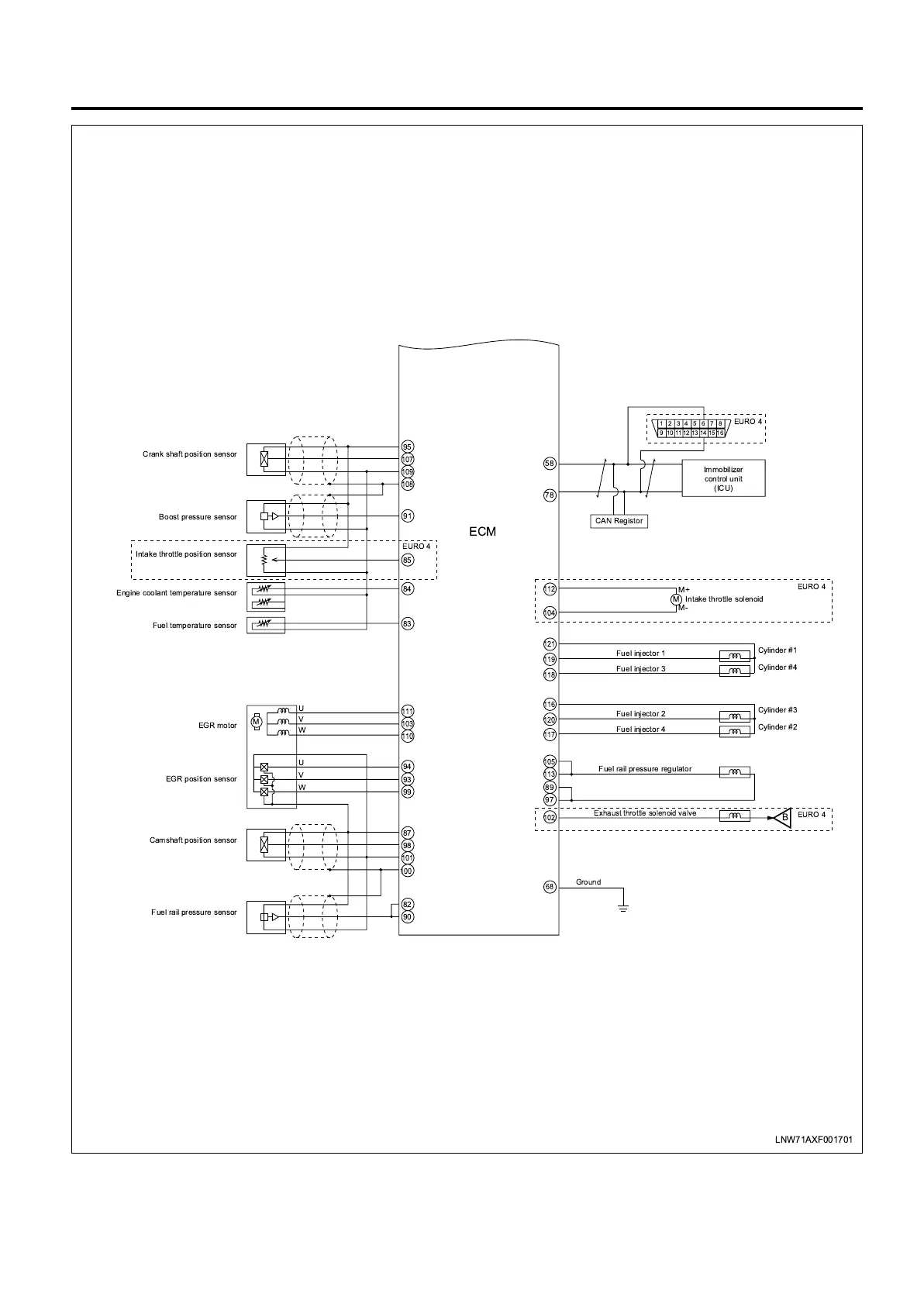

Engine Control System (4HK1) 1A-11
LNW71AXF001701
EURO 4
EURO 4
EURO 4
EURO 4
Crank shaft position sensor
Boost pressure sensor
Intake throttle position sensor
Engine coolant temperature sensor
Fuel temperature sensor
EGR motor
U
V
W
U
V
W
EGR position sensor
Fuel rail pressure sensor
Camshaft position sensor
Fuel injector 1
Intake throttle solenoid
Fuel injector 3
Fuel injector 2
Fuel injector 4
Fuel rail pressure regulator
Exhaust throttle solenoid valve
ECM
121
119
118
112
104
116
120
117
105
113
89
97
102
68
95
107
109
108
91
85
87
98
101
100
82
90
84
83
111
103
110
94
93
99
M
M+
M-
M
Immobilizer
control unit
(ICU)
CAN Registor
58
78
Cylinder #1
Cylinder #4
Cylinder #3
Cylinder #2
Ground
13245768
9 10111213141516
B
LG4HKED-WE-0871.book 11 ページ ２００７年１１月２９日 木曜日 午後６時２９分
