1A-20 Engine Control System (4HK1)
Engine Control Connector End Views
Accelerator Pedal Position (APP) Sensor
83 LT GRN /
WHT
FT sensor signal
84 GRN/YEL ECT sensor signal
85 VIO/WHT Intake throttle position sensor
signal (Euro4 specification)
86 - Not used
87 LT GRN CMP sensor, FRP sensor &
EGR position sensor 5 volts
reference
88 - Not used
89 GRN/RED FRP regulator control low side
90 BLU/WHT FRP sensor signal
91 RED Boost pressure sensor signal
92 - Not used
93 LT BLU EGR position sensor signal 2
94 WHT/ORN EGR position sensor signal 1
95 YEL CKP sensor, intake throttle
position sensor & boost
pressure sensor 5 volts
reference
96 - Not used
97 GRN/RED FRP regulator control low side
98 BLU/WHT CMP sensor signal
99 LT GRN /
BLK
EGR position sensor signal 3
100 BLK CAM sensor & FRP sensor
shield ground
101 YEL/BLK CMP sensor, FRP sensor &
EGR position sensor low
reference
102 GRN/ORN Exhaust throttle solenoid
control (Euro 4 specification)
103 ORN EGR motor control 2
104 GRN Intake throttle solenoid low
side
105 WHT/RED FRP regulator control high
side
106 - Not used
107 RED/BLU CKP sensor signal
108 BLK CKP sensor & boost pressure
sensor shield ground
Connector No. E-12
Connector Color Black
Test Adapter No. J-35616-64A
Pin No. Wire Color Pin Function
109 BLK CKP Sensor, intake throttle
position sensor, FT sensor,
ECT sensor & boost pressure
sensor low reference
110 WHT EGR motor control 3
111 BLK/ORN EGR motor control 1
112 BLK/GRN Intake throttle solenoid high
side
113 WHT/RED FRP regulator control high
side
114 - Not used
115 - Not used
116 RED Common 2 (Cylinder #2 & #3)
fuel injector charge voltage
117 WHT/YEL Cylinder #2 fuel injector control
118 BLK Cylinder #4 fuel injector control
119 GRN/WHT Cylinder #1 fuel injector control
120 BLK/BLU Cylinder #3 fuel injector control
121 WHT Common 1 (Cylinder #1 & #4)
fuel injector charge voltage
Connector No. E-12
Connector Color Black
Test Adapter No. J-35616-64A
Pin No. Wire Color Pin Function

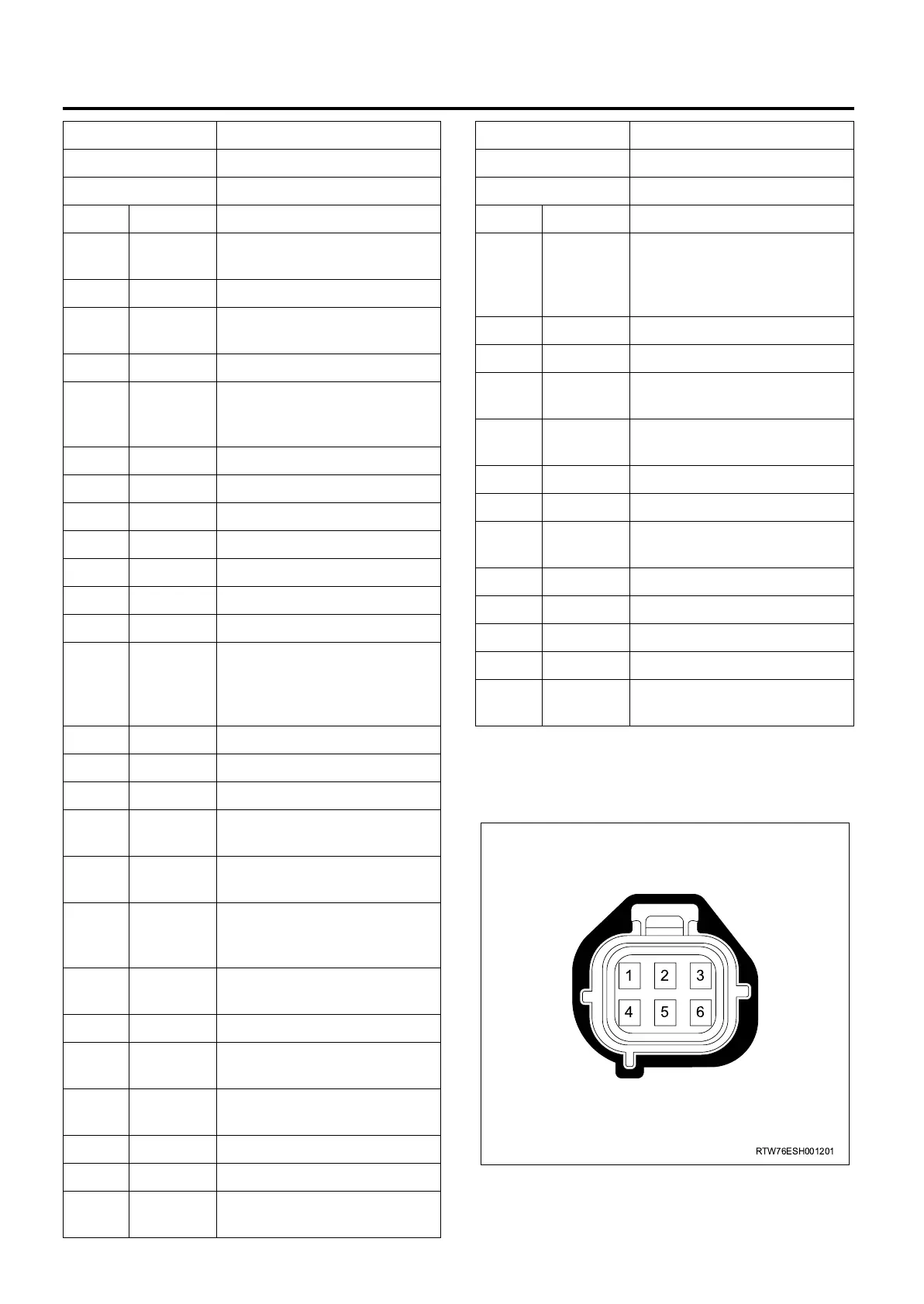

RTW76ESH001201
456
123
