Isuzu 2008MY N Series User Manual

Engine Control System (4HK1) 1A-21
Barometric Pressure (BARO) Sensor
Boost Pressure Sensor
Clutch Switch

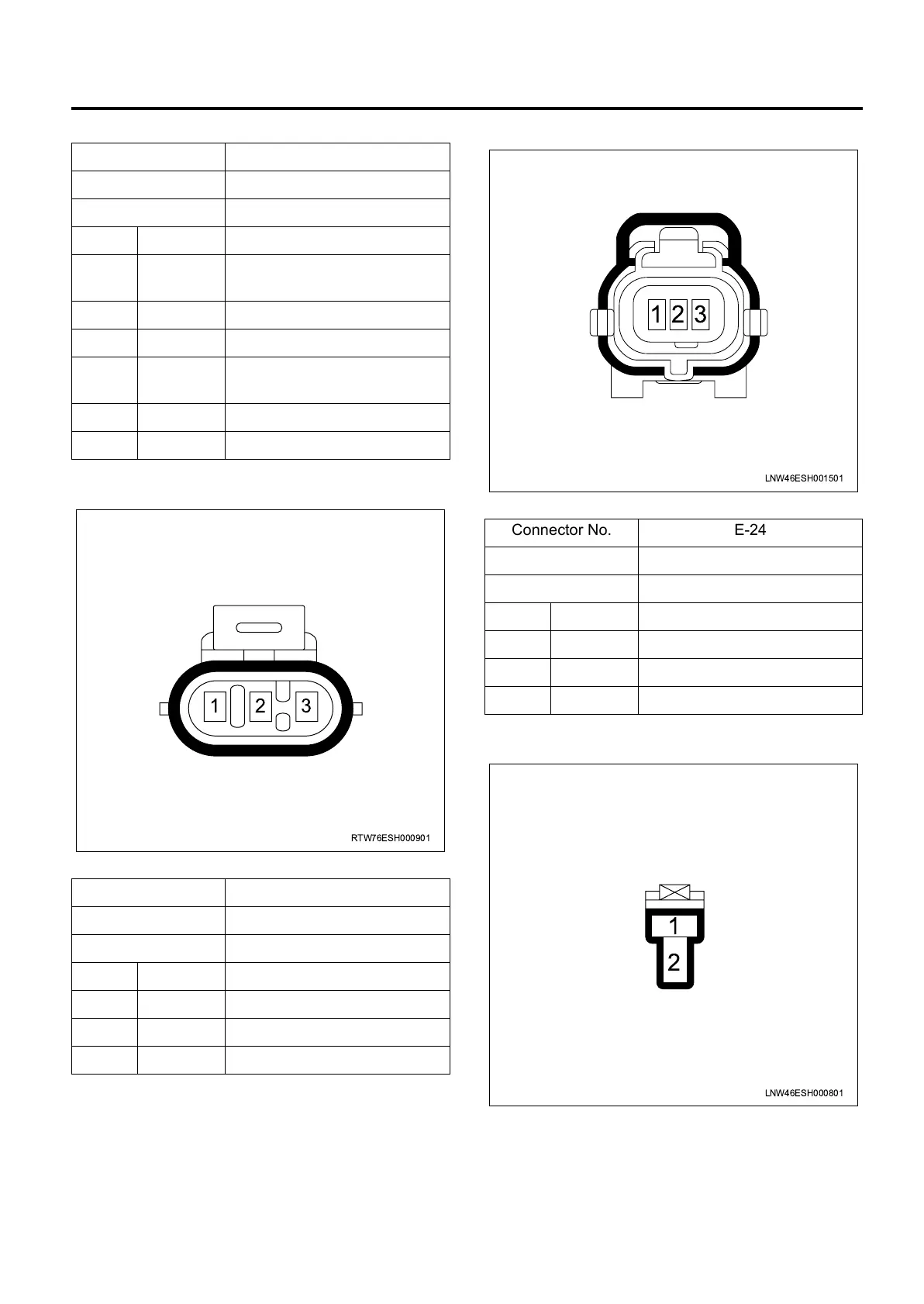

Connector No. B-5
Connector Color Gray
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
1 RED APP sensor 2
5 volts reference
2 WHT APP sensor 2 signal
3 BLK APP sensor 2 low reference
4 BLU APP sensor 1
5 volts reference
5 BLU/WHT APP sensor 1 signal
6 BLU/RED APP sensor 1 low reference
Connector No. B-121
Connector Color Gray
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
1 ORN Sensor low reference
2 PNK/GRN Sensor signal
3 BLU/GRN Sensor 5 volts reference
RTW76ESH000901
312
Connector No. E-24
Connector Color Black
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
1 YEL Sensor signal
2 BLU Sensor low reference
3 GRN Sensor 5 volts reference
LNW46ESH001501
123
LNW46ESH000801
1
2
LG4HKED-WE-0871.book 21 ページ ２００７年１１月２９日 木曜日 午後６時２９分
