Engine Control System (4HK1) 1A-9

Schematic and Rounting Diagrams

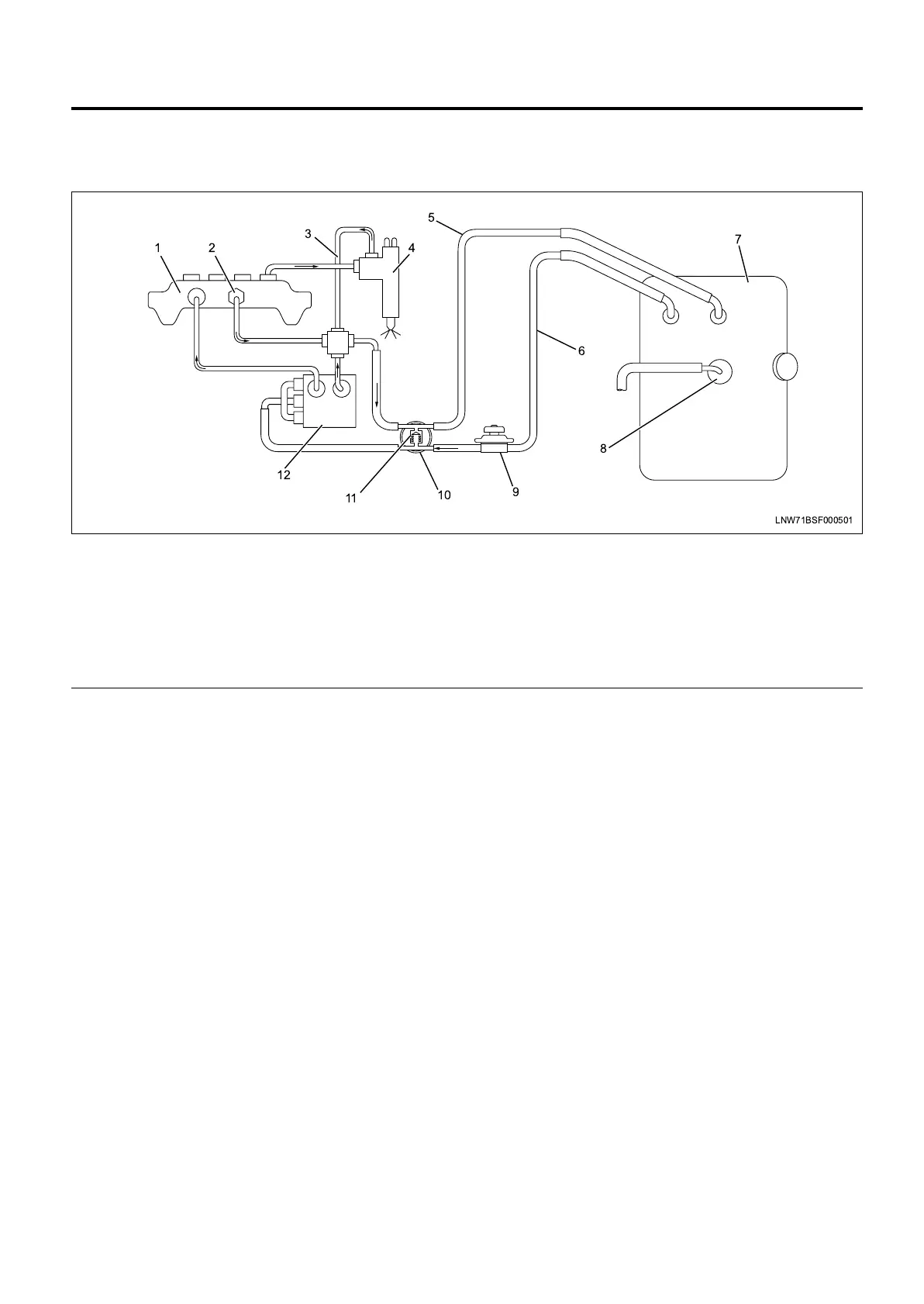

Fuel System Routing Diagram

Legend

1. Fuel rail

2. Pressure limiter valve

3. Leak off pipe

4. Fuel injector

5. Fuel return pipe

6. Fuel feed pipe

7. Fuel tank

8. Vent valve

9. Priming pump

10. Fuel filter with water separator

11. Return fuel flow back valve

12. Fuel supply pump

LNW71BSF000501

1 2
