Engine Control System (4HK1) 1A-19
45 LT GRN/
RED
Exhaust brake switch signal
46 RED/WHT Ignition switch signal
47 WHT/RED DPD switch signal (Euro 4
specification)
48 WHT/BLK Parking brake switch signal
49 - Not used
50 BLK/BLU Neutral switch signal
51 LT GRN/
BLU
Engine warm up switch signal
52 YEL Diagnostic request switch
53 VIO/YEL Engine oil level switch signal
54 - Not used
55 - Not used
56 - Not used
57 - Not used
58 BLU/WHT CAN high signal (Euro 4
specification)
59 BLK Exhaust differential pressure
sensor shield ground
60 BLK APP sensor 2, BARO sensor &
IAT sensor low reference
61 RED APP sensor 2 & BARO sensor
5 volts reference
62 BLK ECM signal ground
63 BLU/WHT APP sensor 1 signal
64 WHT APP sensor 2 signal
65 RED/BLU Cruise control switch signal
66 BLU/YEL Idle up sensor signal
67 LT GRN Exhaust differential pressure
sensor signal (Euro 4
specification)
68 BLK Option (ground)
69 BLU MAF sensor signal (Euro 4
specification)
70 BRN PTO throttle sensor signal
71 BRN/GRN BARO sensor signal
72 RED/GRN IAT sensor signal
Connector No. J-14
Connector Color Black
Test Adapter No. J-35616-64A
Pin No. Wire Color Pin Function
73 YEL/RED Exhaust temperature sensor 1
signal (Euro 4 specification)
74 RED Exhaust temperature sensor 2
signal (Euro 4 specification)
75 - Not used
76 - Not used
77 - Not used
78 BLU CAN low signal (Euro 4
emission regulation or with
Immobilizer)
79 BLK Exhaust differential pressure
sensor, exhaust temperature
sensor 1 & exhaust
temperature sensor 2 low
reference (Euro 4
specification)
80 BLU/WHT Exhaust differential pressure
sensor 5 volts reference (Euro
4 specification)
81 BLK ECM case ground
Connector No. E-12
Connector Color Black
Test Adapter No. J-35616-64A
Pin No. Wire Color Pin Function
82 WHT FRP sensor signal
Connector No. J-14
Connector Color Black
Test Adapter No. J-35616-64A
Pin No. Wire Color Pin Function

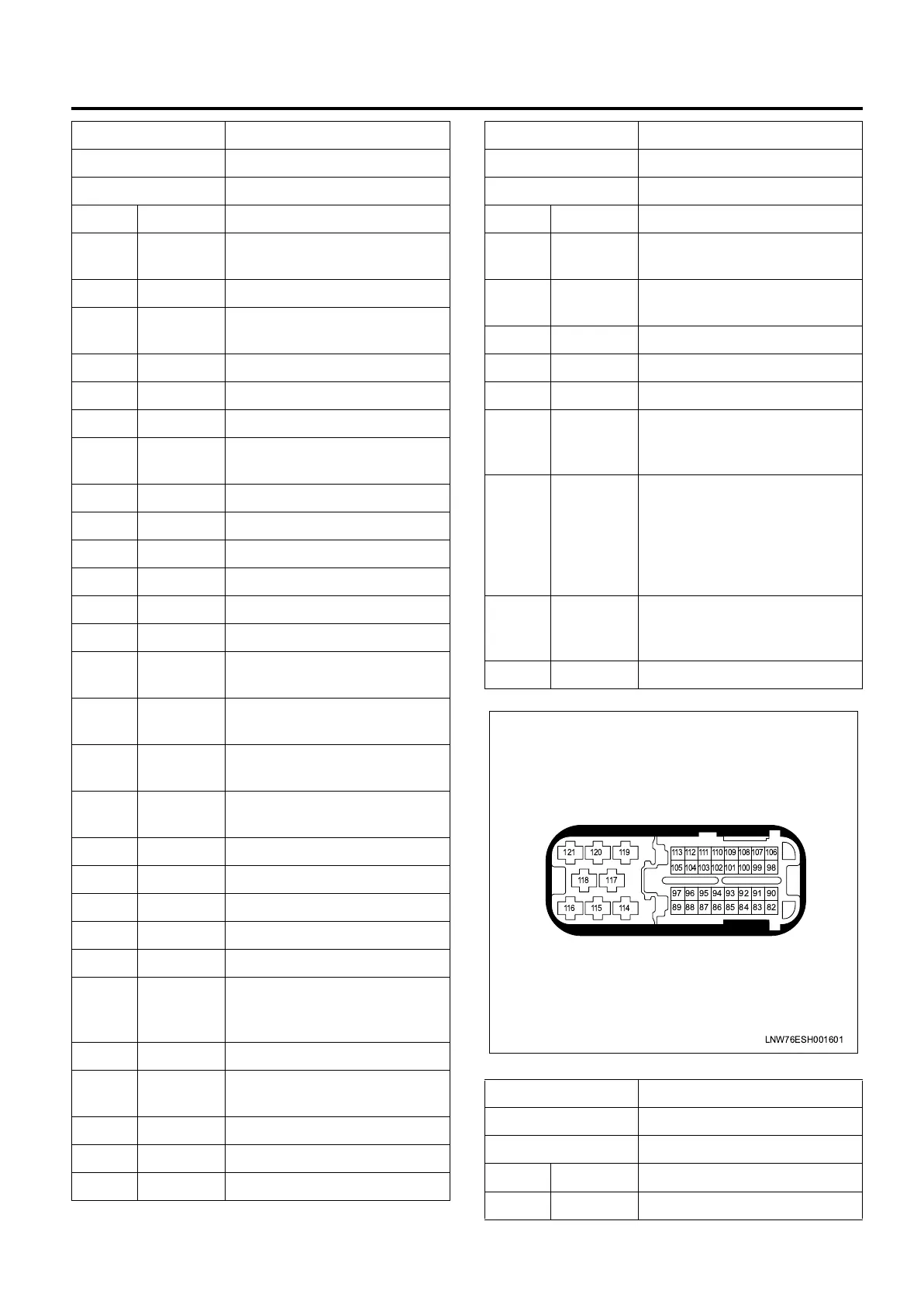

LNW76ESH001601
121 120 119
113
105
97
89
112
104
96
88
111
103
95
87
110
102
94
86
109
101
93
85
108
100
92
84
107
99
91
83
106
98
90
82
116 115 114
118 117
