Engine Control System (4HK1) 1A-13

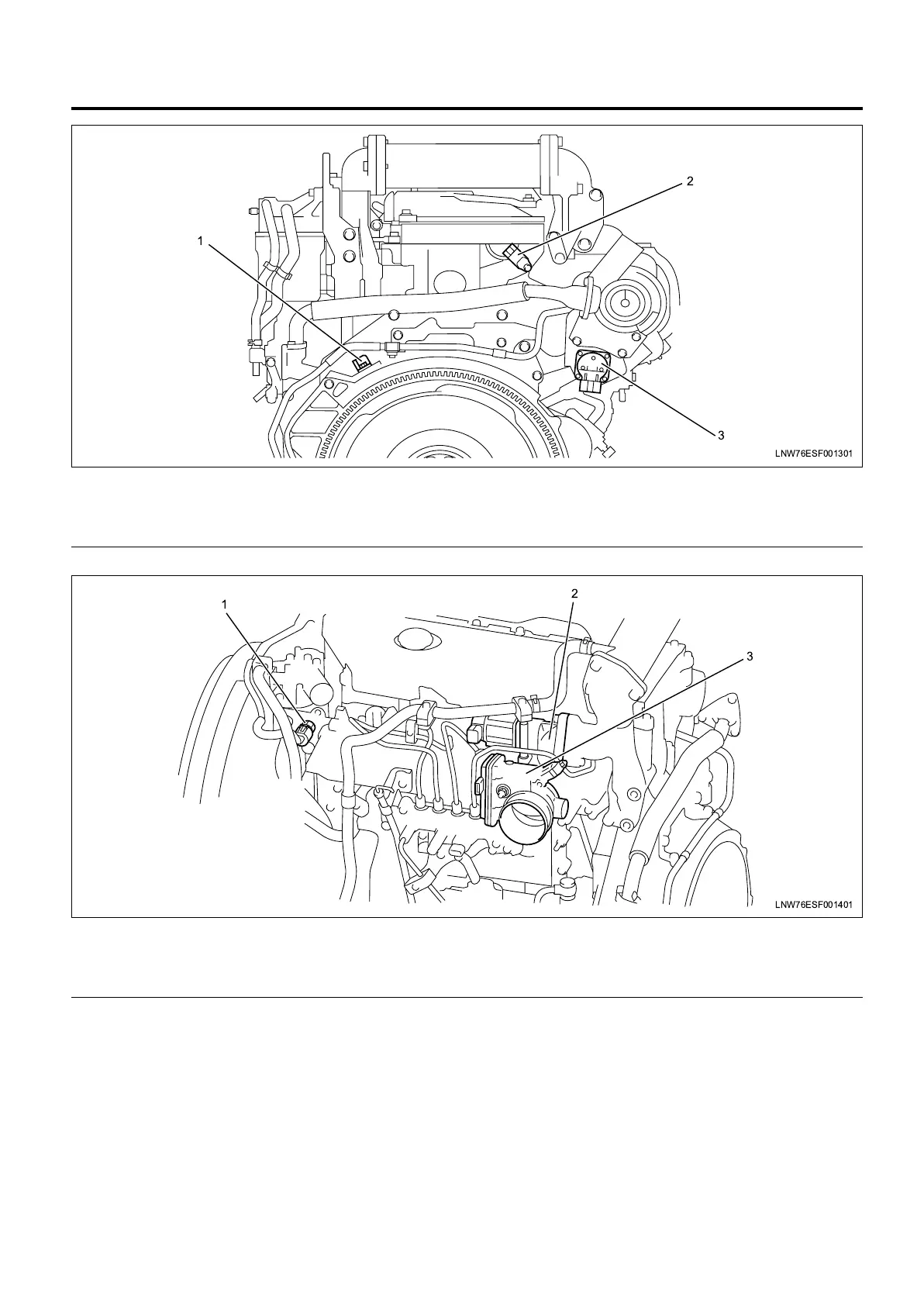

Legend
1. Crankshaft position (CKP) sensor
2. Camshaft position (CMP) sensor
3. Variable nozzle turbocharger (VNT) actuator &
sensor
Legend
1. Engine coolant temperature (ECT) sensor
2. Exhaust gas recirculation (EGR) valve
3. Intake throttle valve
LNW76ESF001301
1
2
3
LNW76ESF001401
1
2
3
