Isuzu 2008MY N Series User Manual

Engine Control System (4HK1) 1A-15
Legend

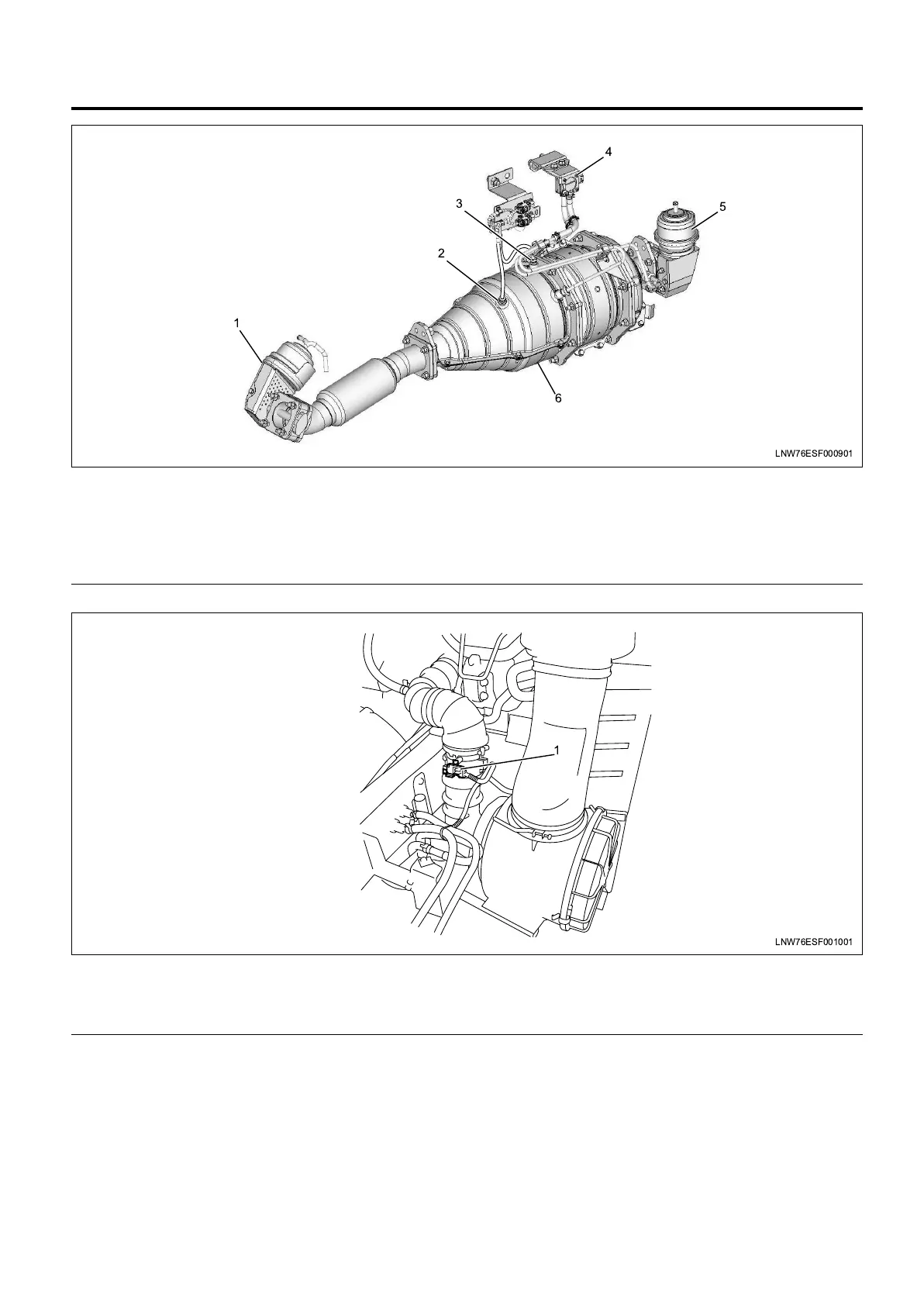

1. Exhaust brake valve
2. Exhaust temperature sensor 2 (in front of oxygen
catalyst)
3. Exhaust temperature sensor 1 (in front of filter)
4. Exhaust differential pressure sensor
5. Exhaust throttle valve
6. DPD assembly
Legend
1. Mass air flow (MAF) sensor/ intake air
temperature (IAT) sensor
LNW76ESF000901
1
2
3
4
5
6
LNW76ESF001001
1
