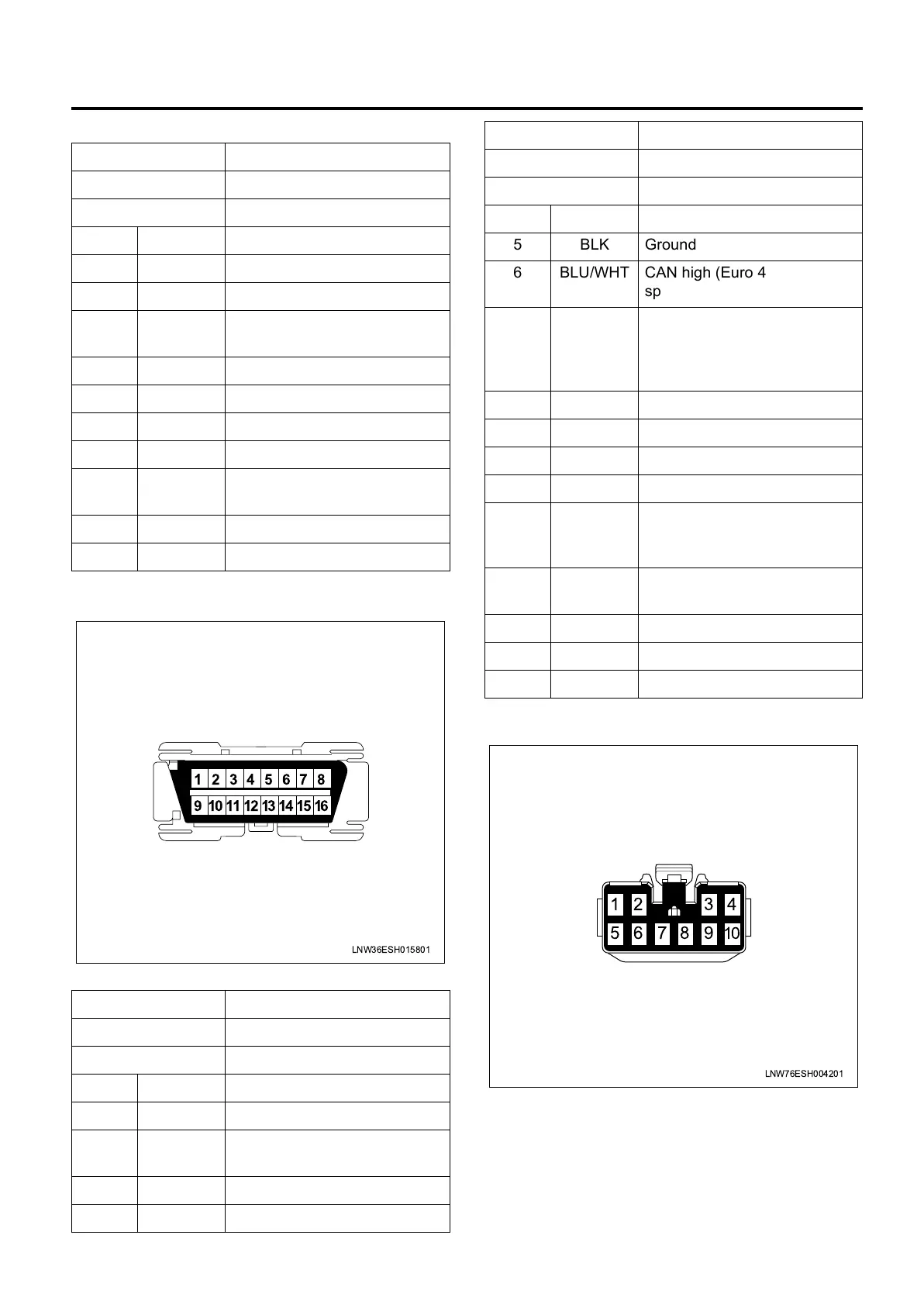

Engine Control System (4HK1) 1A-23
Data Link Connector (DLC)
DPD Switch
Connector No. B-224
Connector Color Brown
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
1 - Not used
2 - Not used
3 BLK/ORN Cruise main switch ignition
voltage feed
4 RED/WHT Cruise main switch ground
5 - Not used
6 - Not used
7 BLK Illumination lamp ground
8 LT GRN/
RED
Illumination lamp voltage feed
9 - Not used
10 - Not used
Connector No. B-31
Connector Color Light blue
Test Adapter No. J-35616-2A
Pin No. Wire Color Pin Function
1 - Not used
2 WHT/BLK Class 2 serial data (EHCU
[ABS module])
3 - Not used
4 BLK Ground
LNW36ESH015801
87654321
161514131211109
5 BLK Ground
6 BLU/WHT CAN high (Euro 4
specification)
7 LT BLU Keyword serial data (ECM
[Except Euro 4 specification],
SRS control unit, TCM or HSA
control unit)
8 - Not used
9 - Not used
10 - Not used
11 - Not used
12 YEL Diagnostic request switch
(SRS control unit, TCM or HSA
control unit)
13 WHT/GRN Diagnostic request switch
(EHCU [ABS mosule])
14 BLU CAN low (Euro 4 specification)
15 - Not used
16 RED/YEL Battery voltage
Connector No. B-31
Connector Color Light blue
Test Adapter No. J-35616-2A
Pin No. Wire Color Pin Function
LNW76ESH004201
56
1
2
98 10
4
3
7
LG4HKED-WE-0871.book 23 ページ ２００７年１１月２９日 木曜日 午後６時２９分
