1A-32 Engine Control System (4HK1)
Variable Nozzle Turbocharger (VNT) Actuator &
Sensor
Vehicle Speed Sensor (VSS)
Connector No. E-2
Connector Color Brown
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
1 RED Position sensor reference
voltage
2 BLU Position sensor signal 3
3 BRN Position sensor signal 2
4 BLU/WHT Position sensor signal 1
5 BLK Position sensor low reference
6 BLU/RED Motor control 2
7 YEL/RED Motor control 3
8 GRN/RED Motor control 1

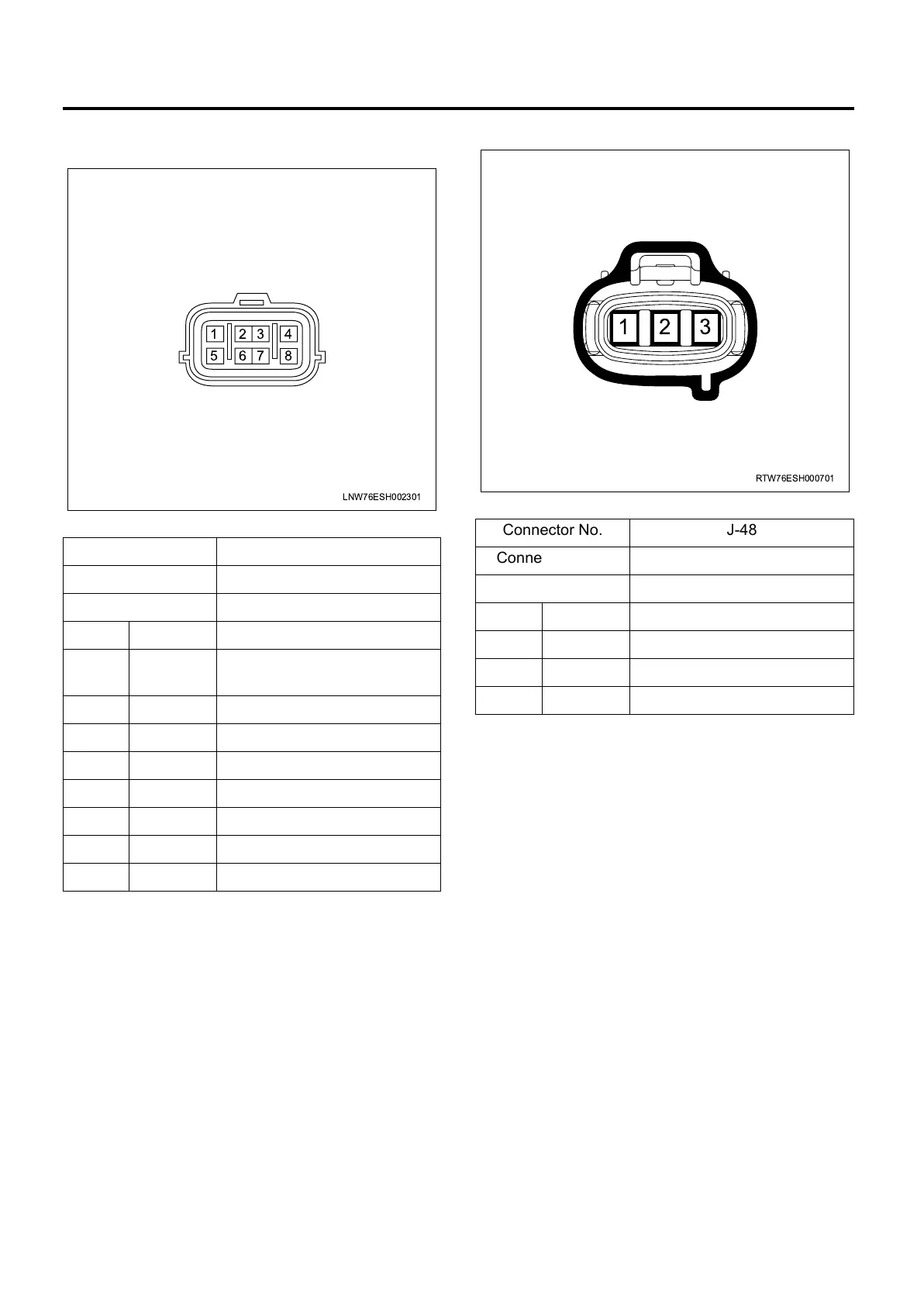

LNW76ESH002301
1234
5678
Connector No. J-48
Connector Color Gray
Test Adapter No. J-35616-33
Pin No. Wire Color Pin Function
1 BLK/YEL Ignition voltage feed
2 BLK Sensor low reference
3 YEL/GRN Sensor signal
RTW76ESH000701
123
