6-6

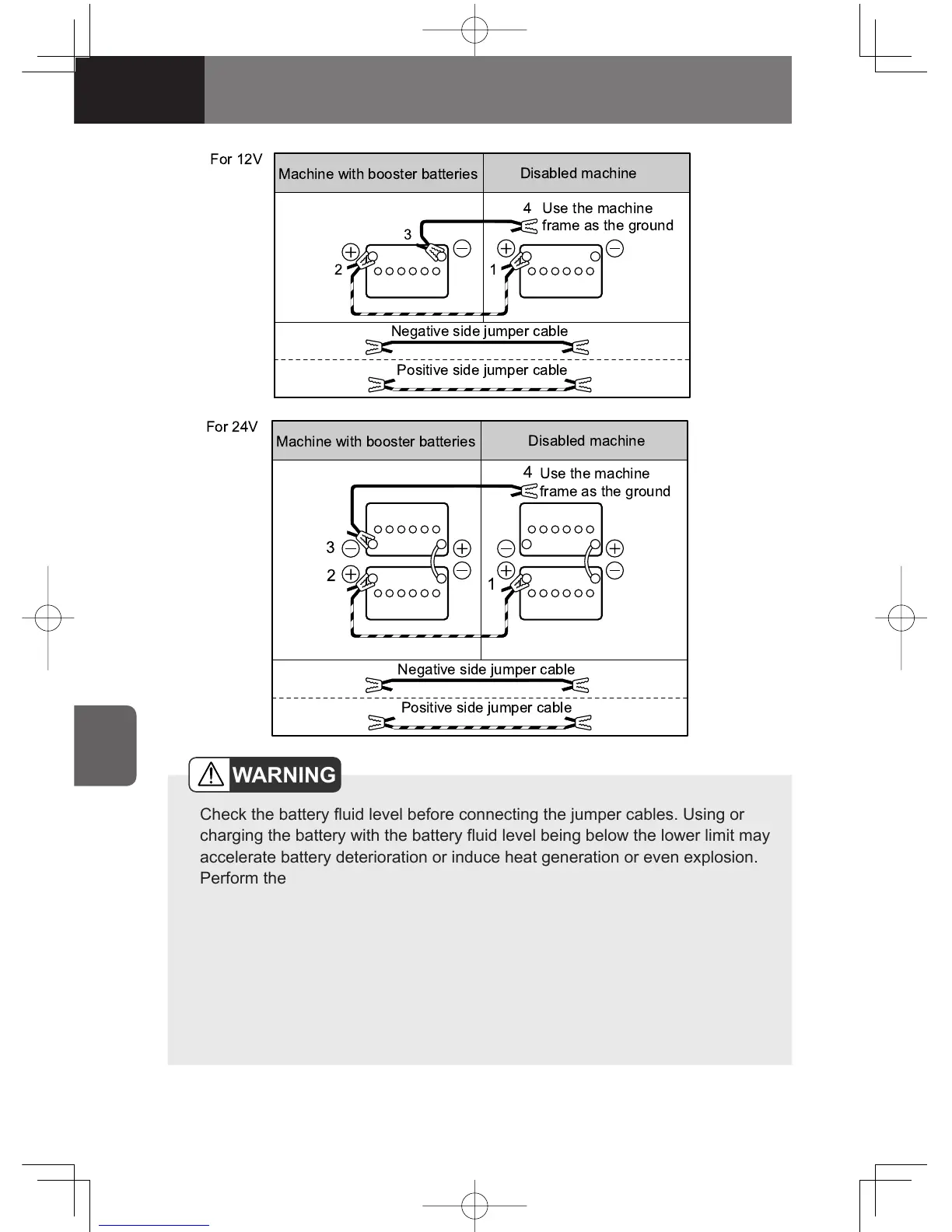

IN CASE OF EMERGENCY
Machine with booster batteries
For 12V
Disabled machine
Negative side jumper cable
Positive side jumper cable
Use the machine
frame as the ground
4
3
21
3
2
4
1
Machine with booster batteries
Use the machine
frame as the ground
Disabled machine
Negative side jumper cable
Positive side jumper cable
For 24V
WARNING
Check the battery fluid level before connecting the jumper cables. Using or
charging the battery with the battery fluid level being below the lower limit may
accelerate battery deterioration or induce heat generation or even explosion.
Perform the work after adding the battery fluid.
When connecting the jumper cable to the frame 4 of the disabled machine, it
may create sparks. For this reason, if the cable is connected too close to the
battery, the flammable gas which is generated from the battery may catch the
sparks and explode, so choose a position as far away as possible.
Do not let the positive (+) side of the jumper cable come in contact with the
negative (-) side of jumper cable or the machine body.
The battery must be kept away from flame.
•
•
•
•
